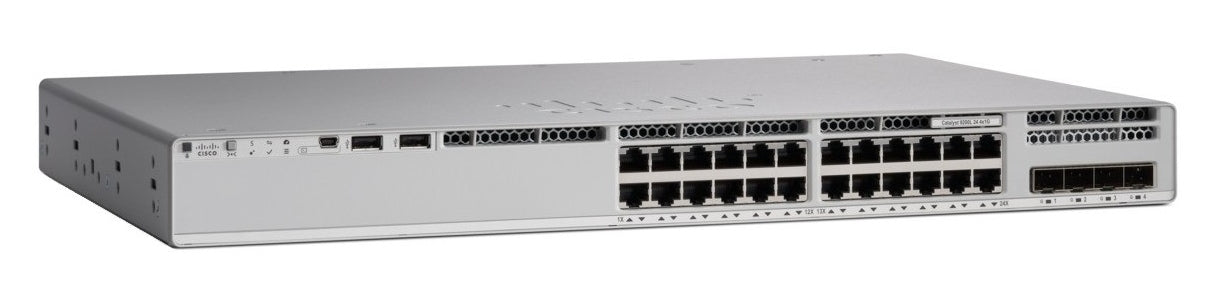

Cisco C9200L-24P-4G-A | Catalyst 9200L 24-Port PoE+ Switch, 370W, Network Advantage

C9200L-24P-4G-A

$3,630.00 inc. GST
$3,300.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

7 in stock

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200L is a fixed-configuration, stackable Layer 2/3 access switch for small and mid-size campus and branch networks. It provides full PoE+ on every downlink port to power IP phones, wireless access points and cameras, with StackWise-80 stacking available as the site grows.

This model has 24 x 10/100/1000 PoE+ ports and 4 fixed 1G SFP uplinks. The default PWR-C5-600WAC power supply gives a 370W PoE+ budget, which rises to 740W with a second supply. Switching capacity is 56 Gbps (136 Gbps when stacked) with a forwarding rate of 41.67 Mpps (101 Mpps when stacked). The -A suffix means the Network Advantage perpetual licence tier is included, adding advanced routing, segmentation, multicast, scale and security over Network Essentials.

It stacks only with other C9200L models at the same licence level using the C9200L-STACK-KIT, up to 8 members. The SFP uplink ports accept 1G SFP optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco IOS XE with programmability and automation support
- StackWise-80 stacking for a single management and control plane
- Full PoE+ support on all 24 downlink ports
- Field-replaceable power supply with optional second supply for redundancy and extra PoE budget
- Network Advantage licence tier with advanced routing, segmentation, multicast and security
- Cisco Smart Licensing support
- Cisco DNA subscription support, managed through Cisco Catalyst Center
- 1RU rack-mount form factor

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 PoE+
- Uplinks: 4 x 1G SFP fixed
- PoE+ budget: 370W with single PWR-C5-600WAC, 740W with second supply
- Default power supply: PWR-C5-600WAC
- Power supply redundancy: Fixed redundant
- Switching capacity: 56 Gbps (136 Gbps with stacking)
- Forwarding rate: 41.67 Mpps (101 Mpps with stacking)
- Stacking: StackWise-80, 80 Gbps, up to 8 members, kit C9200L-STACK-KIT
- Licence tier: Network Advantage
- Total MAC addresses: 16,000
- IPv4 routing entries: 3,000
- IPv6 routing entries: 1,500
- ACL scale entries: 1,500
- Packet buffer: 6 MB
- Flexible NetFlow entries: 16,000 flows
- DRAM: 2 GB
- Flash: 4 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 28.8 cm
- Weight (one power supply installed): 4.71 kg
- Operating temperature: -5 to 45 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5 to 90% (noncondensing)
- Certification: ENERGY STAR certified

FAQs

Q: Which licence tier does this SKU include?
A: The -A suffix means the Network Advantage perpetual licence tier is included. A Cisco DNA subscription is optional, and if used it must match the tier, so Network Advantage pairs with DNA Advantage.

Q: How much PoE+ power does it provide?
A: With the default PWR-C5-600WAC power supply the PoE+ budget is 370W. Adding a second PWR-C5-600WAC raises it to 740W, which covers the 720W maximum demand of 24 ports at 30W each.

Q: What can it be stacked with?
A: It stacks only with other C9200L models at the same licence level using the C9200L-STACK-KIT, up to 8 members over StackWise-80. It cannot be stacked with modular C9200 or other Catalyst models.

Q: What optics do the uplink ports take?
A: The 4 fixed uplink ports are 1G SFP and accept 1G SFP optics.

Q: Is a DC power supply supported?
A: Yes. The PWR-C5-715WDC= DC supply is supported in IOS-XE 17.8.1 and above, giving 485W of PoE+ with a single supply and 740W with a secondary. It can be mixed with AC supplies.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
