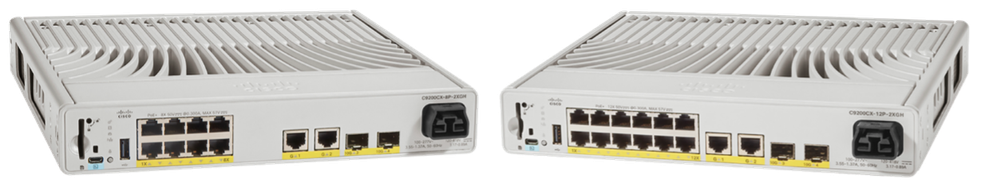

• Cisco C9200CX-8UXG-2XH-E switch with 8x 1G UPoE ports and 2x 10G uplinks
  • Cisco catalyst 9200cx-12p-2x2gh compact hvdc power supply unit with sleek gray chassis and black front panel ports
  • Diagram illustrating advantages of high voltage dc in smart buildings with battery banks ac grids and dc microgrids in cisco catalyst 9200cx 8-port upoe switch
1 3

Cisco

Cisco C9200CX-8UXG-2XH-E | Catalyst 9200CX 8-Port UPoE Switch, 4x mGig, Network Essentials

C9200CX-8UXG-2XH-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless, compact access switch built for branch offices, edge closets and desk or wall-mounted deployments that need high-power PoE. This model provides eight UPOE downlink ports, four of them multigigabit up to 10G and four at 1G, so it can power Wi-Fi 6 and Wi-Fi 6E access points and other demanding PoE devices.

Two fixed 10G SFP+ uplinks handle the aggregation side. The internal 315W HVDC/AC power supply accepts 120-418 VDC or 100-277 VAC and delivers a 240W PoE budget, with up to 60W per port under IEEE 802.3bt Class 6 and Cisco UPOE. Switching capacity is 128 Gbps with a forwarding rate of 95.23 Mpps, backed by 4 GB DRAM and 8 GB flash. The HVDC input makes it a fit for DC micro grid and renewable-powered sites. It carries the Network Essentials licence tier (-E), and the upgrade licence C9200CX-8-E-A moves it to Advantage.

The 10G uplink ports take SFP+ transceivers, and mounting options include DIN rail, 19-inch rack, wall, magnet tray and under-desk kits. Stacking is not supported on the C9200CX.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless compact design for quiet, space-constrained deployments
- UPOE and IEEE 802.3bt Class 6 with multigigabit ports for Wi-Fi 6 and Wi-Fi 6E access points
- Flexible HVDC and AC input for DC micro grid deployments
- Perpetual PoE and Fast PoE
- Cisco IOS XE with open APIs, model-driven programmability and streaming telemetry
- Layer 3 support including OSPF, EIGRP, IS-IS, RIP and routed access
- Cisco SD-Access support with 16 virtual networks and policy-based segmentation
- AES-256 MACsec encryption and Cisco Trust Anchor technologies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x UPOE (4 x mGig up to 10G, 4 x 1G)
- Uplinks: 2 x 10G SFP+ fixed
- Stacking: Not supported
- Power supply: 315W HVDC/AC internal
- PoE budget: 240W
- PoE standard: IEEE 802.3bt Class 6 / Cisco UPOE, up to 60W per port
- Input voltage: 120-418 VDC; 100-277 VAC, 50-60 Hz
- Power input receptacle: Saf-D-Grid
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (64-byte packets)
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- IPv4 routing entries: 4,000; IPv6 routing entries: 2,000
- ACL entries: 1,600; QoS entries: 1,000
- VLAN IDs: 4094; jumbo frames: 9198 bytes
- Cooling: Fanless
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 3.18 kg
- Operating temperature: -5 to +40 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Power consumption (277 VAC): 43.2 W idle, 51.0 W max at full-port traffic
- MTBF: 709,660 hours

FAQs

Q: Which licence tier does this switch use?
A: The -E suffix means it uses the Network Essentials tier. Cisco DNA or Catalyst Essentials and Advantage term subscriptions are available, and the upgrade licence C9200CX-8-E-A moves it from Essentials to Advantage.

Q: How much PoE can it supply?
A: The 315W HVDC/AC internal power supply provides a 240W PoE budget. Each of the eight ports can deliver up to 60W under IEEE 802.3bt Class 6 and Cisco UPOE.

Q: What power input does it need?
A: It accepts 120-418 VDC or 100-277 VAC at 50-60 Hz through a Saf-D-Grid input receptacle. For HVDC use, the power cable and connector are supplied by the customer or system integrator.

Q: Can it be stacked?
A: No. Stacking is not available on the C9200CX. Use the two 10G SFP+ uplinks to connect to your aggregation or core layer.

Q: What mounting options are available?
A: Compatible options include the C9K-CMPCT-DIN-MNT DIN rail kit, RACKMNT-19-CMPACT 19-inch rack kit, C9K-WALL-TRAY wall mount, C9K-CMPCT-DESK-MNT under-desk mount, C9K-MGNT-TRAY magnet tray and C9K-CMPCT-CBLE-GRD cable guard. The C9K-CMPCT-PWR-CLP clip is not compatible with HVDC models.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
