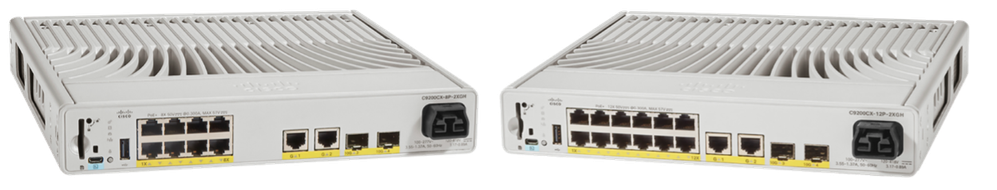

• Cisco C9200CX-8UXG-2XH-A switch with 8x 1G UPoE ports and 2x 10G uplinks
  • Cisco catalyst 9200cx-12p-2x2gh compact hvdc power supply unit with sleek gray chassis and black front panel ports
  • Diagram illustrating advantages of high voltage dc in smart buildings with battery banks ac grids and dc microgrids in cisco catalyst 9200cx 8-port upoe switch
1 3

Cisco

Cisco C9200CX-8UXG-2XH-A | Catalyst 9200CX 8-Port UPoE Switch, Network Advantage

C9200CX-8UXG-2XH-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a compact, fanless access switch for branch offices, desk-side deployments and extended-enterprise sites that need high-power UPOE and multigigabit ports. It suits Wi-Fi 6/6E access points and IoT endpoints, including locations with DC micro-grid power.

This SKU provides 8 UPOE downlink ports, 4 multigigabit ports up to 10G and 4 ports up to 1G, plus 2x 10G SFP+ fixed uplinks. It has a 240W PoE budget with up to 60W per port under IEEE 802.3bt Class 6 and Cisco UPOE, and delivers 128 Gbps switching capacity at a forwarding rate of 95.23 Mpps. The internal 315W power supply accepts either HVDC (120-418 VDC) or AC (100-277 VAC) input. The Network Advantage perpetual licence tier is included with this -A SKU, adding Layer 3 routing and SD-Access support for 16 virtual networks.

Stacking is not supported on the C9200CX, so it deploys as a standalone switch. Uplinks use 10G SFP+ optics, and compact mounting options include the magnet tray, DIN rail, 19-inch rack, wall tray and desk mount kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE and IEEE 802.3bt Class 6 PoE up to 60W per port
- Perpetual PoE and Fast PoE
- Multigigabit ports suited to Wi-Fi 6/6E access points
- HVDC/AC power input supports DC micro-grid deployments
- AES-256 MACsec encryption
- Precision Time Protocol (IEEE 1588v2) support
- Layer 3 routing with OSPF, EIGRP, IS-IS, RIP and routed access
- Cisco SD-Access support with 16 virtual networks
- Cisco IOS XE with model-driven programmability and streaming telemetry
- Management via CLI, WebUI, Cisco Catalyst Center or Meraki cloud monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x UPOE (4 x mGig up to 10G, 4 x 1G)
- Uplinks: 2 x 10G SFP+ fixed
- PoE budget: 240W
- PoE standard: IEEE 802.3bt Class 6 / Cisco UPOE, up to 60W per port
- Power supply: 315W internal HVDC/AC
- Power input: 120-418 VDC or 100-277 VAC, 50-60 Hz
- Cooling: Fanless
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (64-byte packets)
- Packet buffer: 6 MB
- DRAM: 4 GB
- Flash: 8 GB
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Virtual networks: 16
- Stacking: Not supported
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 3.18 kg
- Operating temperature: -5 to 40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% noncondensing
- MTBF: 709,660 hours

FAQs

Q: Which licence tier does this SKU include?
A: The -A suffix indicates the Network Advantage perpetual licence tier. Cisco DNA Essentials or Advantage term subscriptions are optional for assurance and automation, and the DNA tier must match the Network Advantage licence.

Q: How much PoE can it supply?
A: It provides a 240W PoE budget across its 8 UPOE ports, with up to 60W available on a single port under IEEE 802.3bt Class 6 and Cisco UPOE.

Q: What power input does it accept?
A: The internal 315W supply accepts 120-418 VDC or 100-277 VAC at 50-60 Hz. There is no secondary or redundant power supply option.

Q: Can it be stacked with other switches?
A: No. Stacking is not supported on the C9200CX, so each unit operates as a standalone switch.

Q: Which mounting accessories suit this switch?
A: Compatible compact mounting options include C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT, RACKMNT-19-CMPACT, C9K-WALL-TRAY, C9K-CMPCT-DESK-MNT and C9K-CMPCT-CBLE-GRD. The C9K-CMPCT-PWR-CLP is not compatible with HVDC SKUs.
