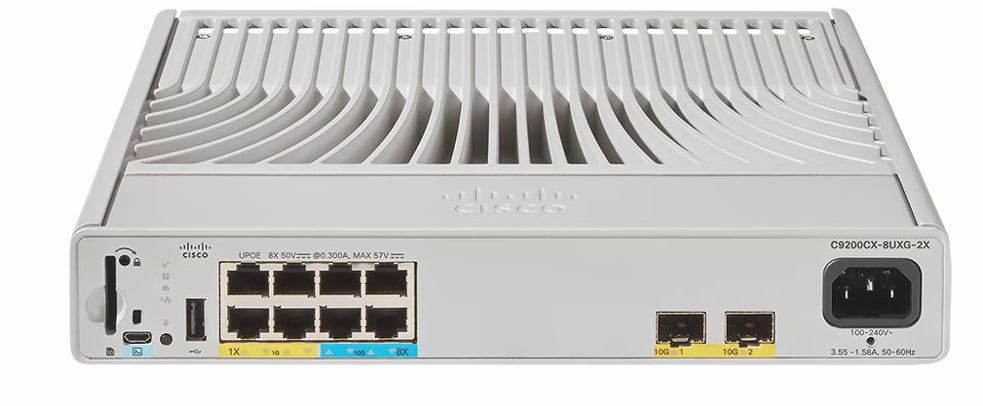

• Cisco C9200CX-8UXG-2X-E 8-port PoE+ switch with 2 SFP+ uplinks
1 1

Cisco

Cisco C9200CX-8UXG-2X-E | Catalyst 9200CX 8-Port UPoE Switch, Network Essentials

C9200CX-8UXG-2X-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless compact switch for branch offices, desk-side installs and extended-enterprise deployments where quiet, space-saving UPOE and multigigabit access is needed. It suits Wi-Fi 6 and 6E access points and PoE end devices, and it can act as an SD-Access fabric edge.

This model provides 8 UPOE downlink ports, 4 multigigabit ports up to 10G and 4 x 1G ports, plus 2 x 10G SFP+ fixed uplinks. A 315W internal AC supply delivers a 240W PoE budget, with up to 60W per port over IEEE 802.3bt Class 6 and Cisco UPOE. Switching capacity is 128 Gbps with a forwarding rate of 95.23 Mpps. It runs Cisco IOS XE and ships with the perpetual Network Essentials licence tier.

The C9200CX supports a range of mounting options, including DIN rail, 19-inch rack, under-desk and wall tray kits, and can be managed through Cisco Catalyst Center or the Meraki dashboard. Stacking is not supported on this model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- IEEE 802.3bt Class 6 and Cisco UPOE up to 60W per port on mGig ports
- AES-256 MACsec encryption
- Cisco IOS XE with NETCONF/RESTCONF programmability and streaming telemetry
- Cisco SD-Access support with policy-based segmentation
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Precision Time Protocol (IEEE 1588v2) support
- Perpetual PoE and Fast PoE
- Plug and Play, with Meraki dashboard and Catalyst Center management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x UPOE (4 x mGig up to 10G, 4 x 1G)
- Uplinks: 2 x 10G SFP+ fixed
- Power supply: 315W AC internal
- PoE budget: 240W
- PoE standard: IEEE 802.3bt Class 6 / Cisco UPOE, up to 60W per port
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (64-byte packets)
- Cooling: Fanless
- Stacking: Not supported
- Packet buffer: 6 MB
- DRAM: 4 GB
- Flash: 8 GB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 3.18 kg
- Operating temperature: -5 to +40 C
- Power input: 100 to 240 VAC, 50-60 Hz
- Management console: Micro USB

FAQs

Q: Which licence does the C9200CX-8UXG-2X-E ship with?
A: It ships with the perpetual Network Essentials licence, indicated by the -E suffix. Network Advantage is available through the -A SKU or the C9200CX-LIC= upgrade, and optional Cisco DNA term licences are also supported.

Q: How much PoE power does this switch provide?
A: The 315W internal AC power supply provides a 240W PoE budget, with up to 60W per port using 802.3bt Class 6 or Cisco UPOE. There is no secondary power supply option.

Q: Can this switch be stacked?
A: No. Stacking is not available on the C9200CX. Additional switches connect through the 2 x 10G SFP+ uplinks.

Q: What mounting options does it support?
A: Options include C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT for DIN rail, RACKMNT-19-CMPACT for a 19-inch rack, C9K-WALL-TRAY, C9K-CMPCT-DESK-MNT for under desk, and the C9K-CMPCT-PWR-CLP power clip.

Q: How does it differ from other C9200CX 8-port models?
A: This SKU has 4 mGig and 4 x 1G UPOE downlinks, 2 x 10G SFP+ uplinks, a 315W AC supply and Network Essentials licensing.
