• Cisco C9200CX-8UXG-2X-A 8-port UPOE PoE+ Switch with SFP+ Uplinks
1 1

Cisco

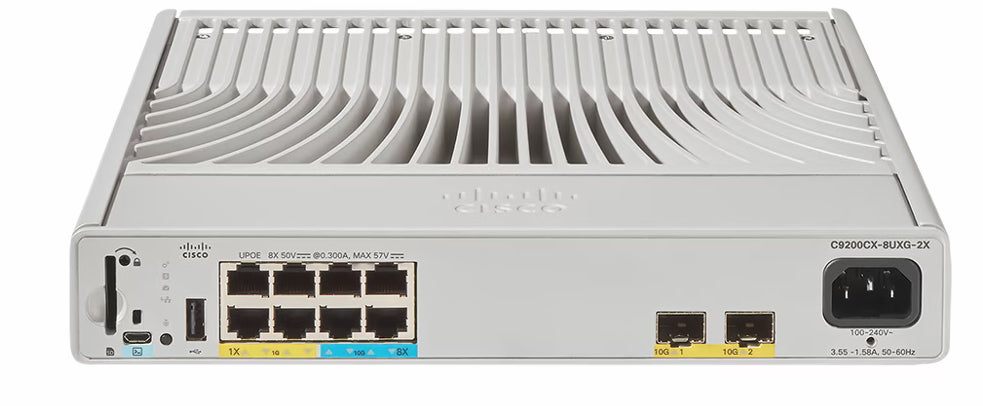

Cisco C9200CX-8UXG-2X-A | Catalyst 9200CX 8-Port UPOE Switch, 2x 10G SFP+, Network Advantage

C9200CX-8UXG-2X-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless compact switch from the Catalyst 9200 range, built for branch offices, small campus and edge deployments. It suits desk, wall or under-desk installs and quiet environments that need high-power PoE for Wi-Fi 6/6E access points, IP cameras and other demanding endpoints.

This Network Advantage model provides 8 UPOE downlink ports, 4 multigigabit ports up to 10G and 4 ports at up to 1G, with two fixed 10G SFP+ uplinks. The internal 315W AC power supply delivers a 240W PoE budget, with Cisco UPOE and IEEE 802.3bt Class 6 supporting up to 60W per port. Switching capacity is 128 Gbps with a forwarding rate of 95.23 Mpps, and it carries 4 GB of DRAM and 8 GB of flash.

The -A suffix ships with the Network Advantage licence tier, which adds SD-Access support with 16 virtual networks and Layer 3 routing. The 9200CX does not stack. Optics are matched against the Cisco TMG compatibility matrix, and mounting options include desk, wall, DIN rail and 19-inch rack kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco UPOE and IEEE 802.3bt Class 6 PoE up to 60W per port for Wi-Fi 6/6E access points and high-power devices
- Multigigabit ports up to 10G for access-layer connectivity
- AES-256 MACsec encryption
- Cisco IOS XE with model-driven programmability and streaming telemetry
- SD-Access support with policy-based segmentation
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Perpetual PoE and Fast PoE
- Secure Boot, image signing and Trust Anchor module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x UPOE (4 x mGig up to 10G, 4 x up to 1G)
- Uplinks: 2 x 10G SFP+ fixed
- Power supply: 315W AC internal, 100 to 240 VAC, 50 to 60 Hz
- Available PoE power: 240W
- PoE standard: Cisco UPOE / IEEE 802.3bt Class 6, up to 60W per port
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps (64-byte packets)
- Cooling: Fanless
- Stacking: Not supported
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- VLAN IDs: 4094
- Total MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- Jumbo frames: 9198 bytes
- Virtual networks (SD-Access): 16
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 3.18 kg
- Operating temperature: -5 to +40 C
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% noncondensing
- Power consumption at full PoE load (115VAC): 301.9 W
- MTBF: 711,500 hours

FAQs

Q: Which licence tier does this model ship with?
A: The -A suffix indicates the Network Advantage perpetual licence tier. Cisco DNA Essentials or Advantage subscriptions are ordered separately, and the DNA tier must match the Network tier.

Q: How much PoE power does it provide?
A: The internal 315W AC supply provides a 240W PoE budget across the 8 UPOE ports. Each port supports up to 60W under Cisco UPOE and IEEE 802.3bt Class 6.

Q: Can the C9200CX be stacked?
A: No. The C9200CX compact models do not support stacking, so each switch is managed as a standalone unit.

Q: What optics and mounting options work with it?
A: Uplink optics are SFP+ and SFP modules listed in the Cisco TMG compatibility matrix. Mounting accessories include C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT, RACKMNT-19-CMPACT, C9K-WALL-TRAY and C9K-CMPCT-DESK-MNT.

Q: Does it need a fan or make noise in quiet spaces?
A: No. It is a fanless design, which suits offices, desks and other noise-sensitive locations.

Q: How is it managed?
A: It can be managed through the CLI, Cisco Catalyst Center or the Meraki dashboard, and a Bluetooth management dongle is supported. It runs Cisco IOS XE 16.9.2 or later.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
