• Cisco C9200CX-8P-2X2G-E router with 8x 1G PoE+ ports and 2x 10G SFP+ uplinks
1 1

Cisco

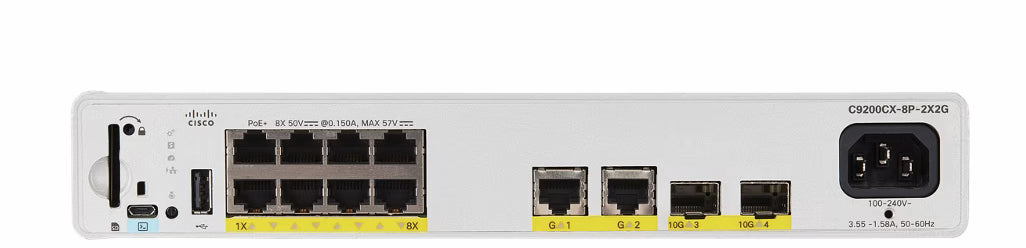

Cisco C9200CX-8P-2X2G-E | Catalyst 9200CX 8-Port PoE+ Switch, 240W, 2x 10G SFP+, Network Essentials

C9200CX-8P-2X2G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless, compact access switch built for branch offices, remote sites and desktop or under-desk deployments where quiet operation matters. It suits sites that need PoE+ for IP phones, cameras and Wi-Fi access points, and it can also serve as an SD-Access fabric edge in small locations.

This model provides 8 full PoE+ (IEEE 802.3at) 10/100/1000 downlink ports drawing on 240W of PoE budget from an internal 315W AC power supply. Uplinks are 2x 1G copper and 2x 10G SFP+, with 60 Gbps of switching capacity and a forwarding rate of 44.64 Mpps. It carries 4 GB of DRAM and 8 GB of flash, and runs Cisco IOS XE.

The -E suffix denotes the Network Essentials perpetual licence tier, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security. Cisco DNA subscriptions and the Network Advantage upgrade are available separately. Mounting options include desktop, wall, magnet, DIN rail, under-desk and 19-inch rack.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ (up to 30W per port) on all 8 downlink ports, with Perpetual PoE and Fast PoE
- Fanless compact design suited to desktop, wall, under-desk, magnet, DIN rail and 19-inch rack mounting
- AES-256 MACsec encryption
- Layer 3 capabilities including OSPF, EIGRP, IS-IS, RIP and routed access
- Precision Time Protocol (PTP, IEEE 1588v2) support
- Cisco SD-Access support with 16 virtual networks
- Management via CLI, WebUI, NETCONF/RESTCONF, Cisco Catalyst Center or the Meraki dashboard
- Cisco Trust Anchor technologies including image signing and Secure Boot

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x 10/100/1000 full PoE+ (IEEE 802.3at)
- Uplinks: 2x 1G copper, 2x 10G SFP+ fixed
- PoE budget: 240W
- Power supply: 315W AC internal, single supply
- Switching capacity: 60 Gbps
- Forwarding rate: 44.64 Mpps (64-byte packets)
- Cooling: Fanless
- Stacking: Not supported
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 2.99 kg
- Power input: 100 to 240 VAC, 50 to 60 Hz, IEC 320-C14
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- MTBF: 736,000 hours
- Licence tier: Network Essentials

FAQs

Q: Which licence tier does this switch use?
A: The -E suffix means it uses the Network Essentials perpetual licence tier. Cisco DNA Essentials or Advantage subscriptions and the Network Advantage upgrade can be added separately.

Q: How much PoE power does it provide?
A: It provides 240W of PoE+ budget from its internal 315W AC power supply, shared across 8 full PoE+ ports. There is no secondary or redundant power supply option.

Q: Can the C9200CX be stacked?
A: No. Stacking is not supported on the C9200CX. Use the 10G SFP+ or 1G copper uplinks to connect it to other switches.

Q: What mounting options are available?
A: Cisco offers a magnet/tray (C9K-MGNT-TRAY), DIN rail (C9K-CMPCT-DIN-MNT), 19-inch rack (RACKMNT-19-CMPACT), wall tray (C9K-WALL-TRAY), under-desk (C9K-CMPCT-DESK-MNT) and power clip (C9K-CMPCT-PWR-CLP) options.

Q: What optics work in the SFP+ uplinks?
A: The two 10G SFP+ uplinks accept Cisco optics listed in the Cisco TMG compatibility matrix.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
