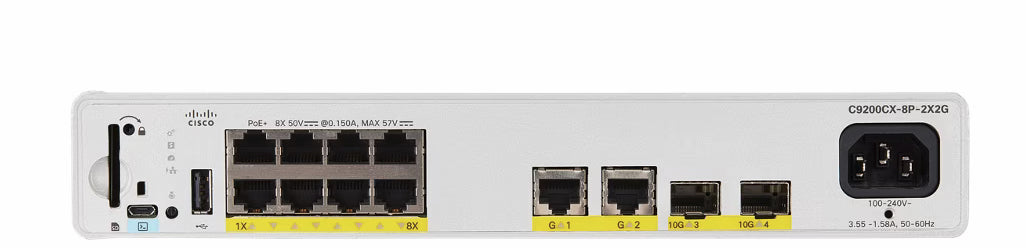

• Cisco C9200CX-8P-2X2G-A switch with 8x1G PoE+ ports and 2x10G SFP+ uplinks
1 1

Cisco

Cisco C9200CX-8P-2X2G-A | Catalyst 9200CX 8-Port PoE+ Switch, 240W, Network Advantage

C9200CX-8P-2X2G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a compact, fanless access switch for branch offices, small campus edges and space-constrained or quiet environments such as desks, walls, under-desk spots and DIN rails. This 8-port PoE+ model powers IP phones, cameras and Wi-Fi access points, and it also suits use as an SD-Access fabric edge.

It provides 8 Gigabit full PoE+ downlink ports sharing a 240W PoE budget from a 315W internal AC power supply. Uplinks are 2x 1G copper and 2x 10G SFP+, with 60 Gbps of switching capacity and a forwarding rate of 44.64 Mpps. The unit carries 4 GB of DRAM, 8 GB of flash and a 6 MB packet buffer. This SKU ships with the Network Advantage licence tier, which separates it from the Network Essentials variant, and it runs Cisco IOS XE 16.9.2 or later.

The 10G uplinks accept Cisco SFP and SFP+ transceivers. Stacking is not supported on the C9200CX. Mounting options include magnet tray, DIN rail, 19-inch rack, wall tray and under-desk kits.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ up to 30W per port with Perpetual PoE and Fast PoE
- Fanless design for quiet operation in open or desktop environments
- AES-256 MACsec encryption
- Cisco IOS XE with NETCONF/RESTCONF programmability and streaming telemetry
- Software-Defined Access support with 16 virtual networks
- Layer 3 routing including OSPF, EIGRP, IS-IS and RIP
- Plug and Play zero-touch deployment
- Cloud management with the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 8 x 10/100/1000 full PoE+
- Uplinks: 2x 1G copper and 2x 10G SFP+ fixed
- PoE budget: 240W
- Power supply: 315W AC internal
- Switching capacity: 60 Gbps
- Forwarding rate: 44.64 Mpps (64-byte packets)
- Cooling: Fanless
- Stacking: Not supported
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 2.99 kg
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Operating temperature: -5 to +45 C up to 1500 m
- Typical power consumption: 33.3 W (no link), 38.3 W (100% traffic)
- Console port: Micro USB
- Licence tier: Network Advantage

FAQs

Q: Which licence tier does this SKU include?
A: The -A suffix means it ships with the Network Advantage perpetual licence. Cisco DNA subscriptions are also available as optional extras.

Q: How much PoE power does it provide?
A: It offers a 240W PoE+ budget from its 315W internal AC supply, shared across 8 full PoE+ ports. There is no secondary power supply option.

Q: Can I stack this switch?
A: No. Stacking is not available on the Catalyst 9200CX.

Q: What can I fit in the uplink ports?
A: The two 10G uplinks accept Cisco SFP and SFP+ transceivers. Check the Cisco TMG compatibility matrix for supported part numbers.

Q: How can I mount it?
A: Options include C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT for DIN rail, RACKMNT-19-CMPACT for 19-inch racks, C9K-WALL-TRAY and C9K-CMPCT-DESK-MNT for under-desk use.
