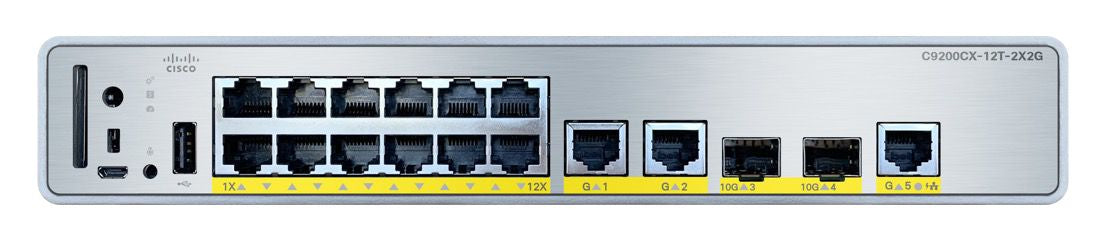

• Cisco C9200CX-12T-2X2G-E silver black 12-port network switch
1 1

Cisco

Cisco C9200CX-12T-2X2G-E | Catalyst 9200CX 12-Port Gigabit Switch, 2x 10G SFP+, Fanless

C9200CX-12T-2X2G-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200CX-12T-2X2G-E is a compact, fanless enterprise switch designed for space-constrained environments such as retail, hospitality, and distributed offices. Featuring 12 Gigabit Ethernet data ports, 2x 10G SFP+ uplinks, and 3x additional 1G uplinks including PoE PD capability, this switch delivers Layer 3 switching performance with Network Essentials software. Its silent, fanless design with heat-sink top makes it ideal for deployments in quiet environments where traditional switches are unsuitable.

Features

Cisco IOS XE operating system with Network Essentials software
- Layer 3 advanced routing with OSPF, EIGRP, RIP, VRRPv3, PIM-SM/SSM, and Policy-Based Routing (PBR)
- MACsec hardware-based encryption for secure layer 2 communications
- IEEE 802.1X authentication and Network Admission Control
- Quality of Service (QoS) with DSCP, CoS, shaped round robin (SRR), and 1000 QoS scale entries
- Flexible NetFlow (FNF) with 16,000 flow entries for traffic visibility and analytics
- Access Control Lists (ACL) with 1600 entries for granular security policies
- Energy Efficient Ethernet (EEE) IEEE 802.3az support
- Rapid PVST+, MSTP, and up to 128 spanning tree instances
- VLAN support for up to 4096 VLAN IDs
- Private VLAN (PVLAN) support
- IPv4 and IPv6 dual-stack routing (4000 IPv4 routes, 2000 IPv6 routes)
- Multicast support with PIM-SM, PIM-SSM, IGMP v1/v2/v3, MLD v1/v2 (1000 multicast scale)
- Port mirroring with SPAN and RSPAN for traffic analysis
- Embedded Event Manager (EEM) for automated network diagnostics
- Zero-Touch Provisioning (ZTP) for simplified deployment
- Cisco DNA Center ready for centralized management and automation
- Control Plane Policing (CoPP) for enhanced security
- First Hop Security (FHS) with IPv6 RA Guard, DHCP Guard, and Source Guard
- Cisco UADP 2.0 Mini ASIC for programmable packet processing
- Blue beacon LED and passive RFID for easy device identification and asset tracking
- SD card slot and USB ports for storage and Bluetooth dongle support
- Kensington lock port for physical security

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

12x 10/100/1000 Ethernet data ports (RJ45)
- 2x 10G SFP+ fixed uplinks
- 3x 1G uplinks (2x 1G copper, 1x 1G copper PD 802.3bt Class 6)
- Switching capacity: 70 Gbps
- Forwarding rate: 52.08 Mpps
- Memory: 4 GB RAM, 8 GB Flash
- Fanless, silent operation with passive heat dissipation
- Power: 802.3bt Class 6 PoE PD or optional 80W AC/DC adapter
- Dimensions (HxWxD): 1.73 x 10.6 x 6.5 in (4.4 x 26.9 x 16.5 cm)
- Weight: 4.0 lbs (1.81 kg)
- Management: CLI, Web UI, SNMP v1/v2c/v3, NETCONF, RESTCONF, YANG
- Layer 3 routing: OSPF, EIGRP, RIP, VRRPv3, PIM-SM/SSM
- Supports 16 Virtual Networks, 4096 VLANs, 14,000 IPv4 routes
- Security: MACsec, 802.1X, ACL support (1600 entries)
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.1Q, 802.1X, 802.1ae, 802.3bt
- Built-in passive RFID tag for asset management
- Blue beacon LED for device identification
- MTBF: 960,180 hours
- Cisco IOS XE with Network Essentials license
- No stacking support (C9200CX series)

FAQs

Q: What is the primary difference between the C9200CX-12T-2X2G-E and the C9200CX-12P models?
A: The C9200CX-12T-2X2G-E is a data-only model with no PoE output on downlink ports. It can be powered via 802.3bt Class 6 PoE from an upstream switch or an optional 80W adapter. The 12P models have PoE+ output on downlink ports with a 240W or 315W budget and include an internal power supply.

Q: Can this switch be powered entirely over Ethernet?
A: Yes, the C9200CX-12T-2X2G-E can be powered through one of its 1G copper uplink ports using IEEE 802.3bt Class 6 PoE from an upstream switch that supports UPOE or 802.3bt. Alternatively, an optional 80W AC or DC adapter (C9K-80W-ADPT) can be used for auxiliary power.

Q: Does this switch support stacking?
A: No, stacking is not available on the C9200CX compact series switches. For stacking capabilities, consider the modular C9200 or fixed C9200L series models which support StackWise-160 or StackWise-80 technology.

Q: What license tier is included with the -E suffix SKU?
A: The -E suffix indicates Network Essentials license. This includes Layer 2 and Layer 3 routing protocols (OSPF, EIGRP, RIP), basic security features, and standard management capabilities. For advanced features like SD-Access and full programmability, Network Advantage (-A) or DNA licenses are required.

Q: Is this switch suitable for noise-sensitive environments?
A: Yes, the C9200CX-12T-2X2G-E is completely fanless and silent. Its innovative design uses the entire top chassis as a heat sink for passive cooling, making it ideal for retail stores, hospital rooms, hotel guest areas, and other quiet or customer-facing environments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
