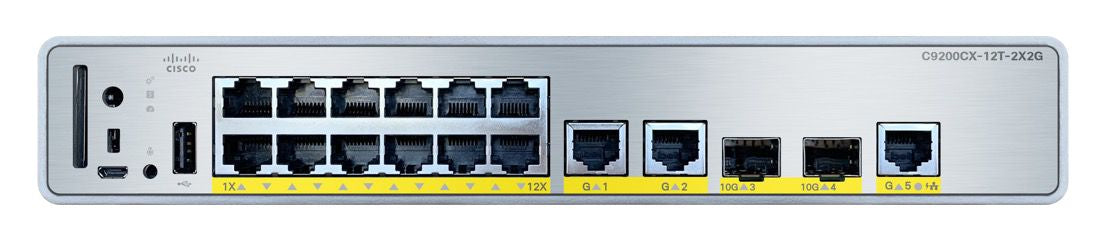

• Cisco C9200CX-12T-2X2G-A silver black 12-port network switch
  • Silver and black fanless cisco catalyst 9200cx 12-port gigabit switch with curved cooling fins on top
  • Back side of cisco c9200cx-12t-2x2g-a catalyst 9200cx 12-port gigabit switch with black silver chassis and multiple ports
1 4

Cisco

Cisco C9200CX-12T-2X2G-A | Catalyst 9200CX 12-Port Gigabit Switch, 2x 10G SFP+, Network Advantage

C9200CX-12T-2X2G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless, compact Layer 3-capable access switch from the Catalyst 9200 Series. This data-only model suits space-limited deployments such as desktops, classrooms, hospitality rooms, retail sites, branch offices and extended-enterprise or IoT edge locations that need 10G uplinks to the distribution layer.

It provides 12 x 10/100/1000 data ports with no PoE output, plus 2 x 10G SFP+ fixed uplinks and additional 1G copper uplink ports, one of which is a PD port supporting 802.3bt Class 6. Switching capacity is 70 Gbps with a forwarding rate of 52.08 Mpps, backed by 4 GB DRAM and 8 GB flash. This SKU carries the Network Advantage licence tier, which adds advanced routing, segmentation, multicast, scale and security capabilities over Network Essentials, and it is managed through Cisco Smart Licensing.

The switch can be powered by 802.3bt Class 6 PoE or UPOE from an upstream switch, or by an optional 80 W external adapter. The SFP+ uplinks accept Cisco SFP and SFP+ transceivers, and the switch runs Cisco IOS XE. It is not stackable.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless compact form factor suited to desktop, wall or under-desk deployment
- Can be powered as a PD through its uplink using IEEE 802.3bt Class 6 or UPOE from an upstream switch
- Optional 80 W AC-DC or DC-DC power adapter for local power
- Cisco IOS XE with model-driven programmability and automation
- Network Advantage tier adds advanced routing, segmentation, multicast, scale and security
- Managed through Cisco Smart Licensing with Cisco DNA Essentials or Advantage subscriptions
- Two 10G SFP+ fixed uplinks for high-speed connection to the distribution layer

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlinks: 12 x 10/100/1000 data ports (non-PoE)
- Uplinks: 2 x 10G SFP+ fixed
- Additional copper ports: 2 x 1G copper plus 1 x 1G copper PD port (802.3bt Class 6)
- Switching capacity: 70 Gbps
- Forwarding rate (64-byte packets): 52.08 Mpps
- Fans: Fanless
- Power: 802.3bt Class 6 PoE from upstream switch, or optional 80 W AC or DC adapter
- Power consumption (80 W AC adapter, no PoE out): approx. 20.0 W idle, 25.9 W at 100% full-port traffic
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 26.9 x 16.5 cm
- Weight: 1.81 kg
- MTBF: 960,180 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Operating system: Cisco IOS XE
- Licence tier: Network Advantage

FAQs

Q: Does this switch provide PoE to connected devices?
A: No. The C9200CX-12T-2X2G-A is a data-only model with no PoE output on its 12 downlink ports. For PoE downlinks you need a PoE variant of the 9200CX.

Q: How is the switch powered?
A: It can be powered by 802.3bt Class 6 PoE or UPOE from an upstream switch through its PD uplink port, or by an optional 80 W external adapter such as C9K-80W-ADPT, C9K-ADPT-DC or PWR-ADPT.

Q: Which licence does this SKU carry?
A: The -A suffix means the perpetual Cisco Network Advantage licence tier. A Cisco DNA subscription (Essentials or Advantage) is also required, and the DNA tier must match the Network licence. Licensing is managed through Cisco Smart Licensing.

Q: What optics work in the 10G uplink ports?
A: The two SFP+ uplinks accept Cisco SFP and SFP+ transceivers, including 10GBASE-SR, LR, ER, ZR and DWDM types. Check the Cisco Transceiver Compatibility Matrix for specific part numbers.

Q: Can the 9200CX be stacked?
A: No. The Catalyst 9200CX models do not support stacking. Connect additional switches over the 10G SFP+ or copper uplinks.

Q: How does this SKU differ from the Network Essentials version?
A: The hardware is the same 12-port data-only model with 2 x 10G SFP+ uplinks. The -A version ships with Network Advantage, which adds advanced routing, segmentation, multicast and scale features beyond Network Essentials.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
