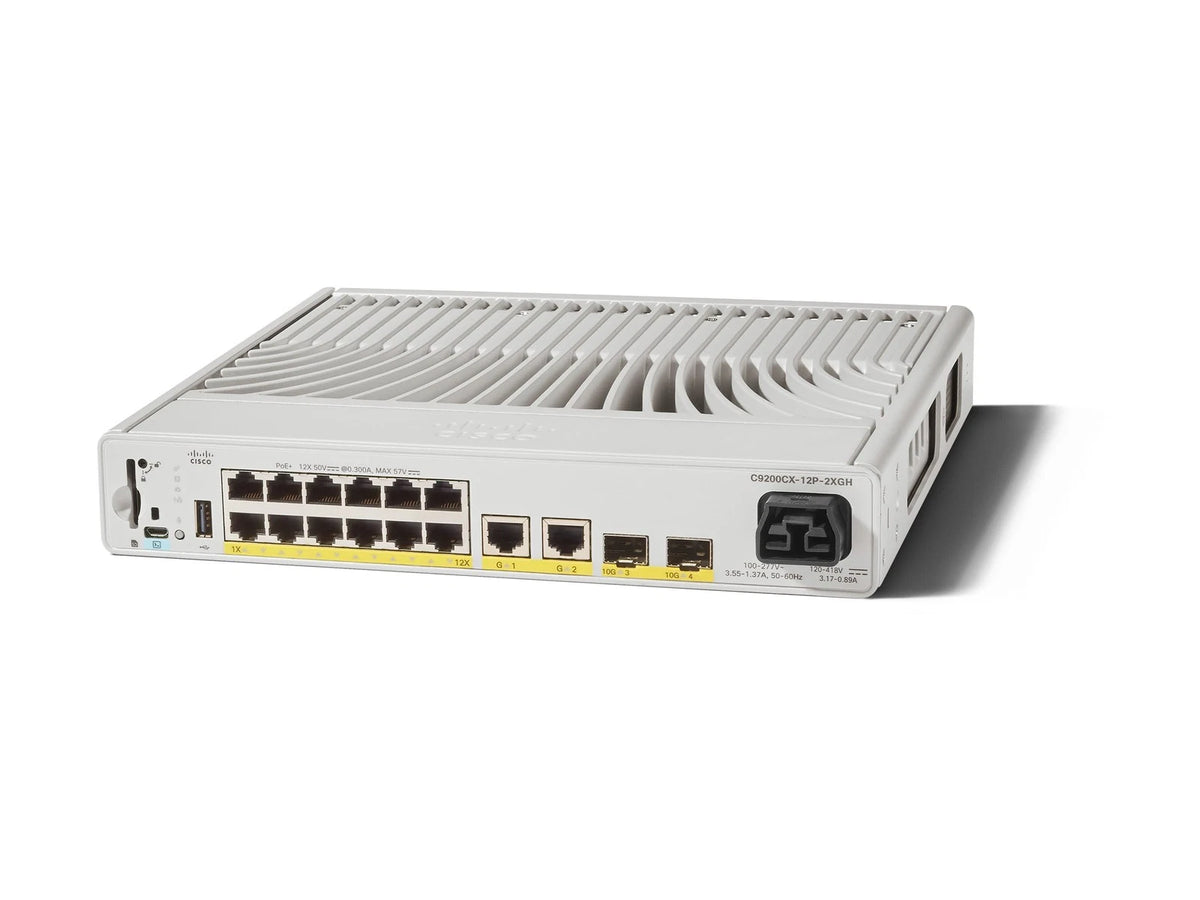

  • Cisco catalyst 9200cx 12-port poe+ switch with sleek white metal chassis and yellow-accented ethernet ports
  • Cisco catalyst 9200cx-12p-2x2gh compact hvdc power supply unit with sleek gray chassis and black front panel ports
  • Diagram illustrating advantages of high voltage dc in smart buildings with battery banks ac grids and dc microgrids in cisco catalyst 9200cx 8-port upoe switch
1 4

Cisco

Cisco C9200CX-12P-2XGH-A | Catalyst 9200CX 12-Port PoE+ Switch, HVDC/AC, Network Advantage

C9200CX-12P-2XGH-A

$3,965.50 inc. GST
$3,605.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

1 in stock

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless compact access switch for branch, remote and edge sites, including DC micro-grid or renewable-powered locations. It suits deployments that need silent operation and PoE+ for IP phones, access points and cameras.

This model provides 12 x 10/100/1000 PoE+ downlink ports with a 240W PoE budget, plus 2 x 10G SFP+ and 2 x 1G copper fixed uplinks. Switching capacity is 68 Gbps with a forwarding rate of 50.59 Mpps. The internal 315W power supply accepts 120-418 VDC or 100-277 VAC, so the same unit runs from HVDC or standard AC mains. It carries the Network Advantage licence tier, which adds the full Layer 3 routing feature set and SD-Access support for 16 virtual networks. Memory is 4 GB DRAM and 8 GB flash.

The C9200CX does not support stacking. Mounting is handled with the C9K compact series options such as the DIN rail, rack, wall tray, magnet tray and desk mount kits. The C9K-CMPCT-PWR-CLP power clip is not compatible with HVDC SKUs. SFP and SFP+ optics are selected from the Cisco TMG compatibility matrix.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless compact design with an HVDC/AC internal power supply for DC micro-grid deployments
- Full PoE+ (802.3at) on all 12 ports within a 240W budget
- AES-256 MACsec encryption
- Cisco SD-Access support with policy-based segmentation
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Perpetual PoE and Fast PoE
- Cisco IOS XE with NETCONF/RESTCONF programmability and streaming telemetry
- Plug and Play and Meraki dashboard cloud monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 12 x 10/100/1000 PoE+
- Uplink ports: 2 x 10G SFP+ and 2 x 1G copper (fixed)
- PoE budget: 240W, IEEE 802.3at up to 30W per port
- Power supply: 315W internal HVDC/AC
- PSU input voltage: 120-418 VDC or 100-277 VAC, 50-60 Hz
- Cooling: Fanless
- Stacking: Not supported
- Switching capacity: 68 Gbps
- Forwarding rate: 50.59 Mpps (64-byte packets)
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- SD-Access virtual networks: 16
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 2.99 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to 70 C
- Relative humidity: 5% to 90% non-condensing
- Console port: Micro USB
- Licence level: Network Advantage
- MTBF: 702,630 hours

FAQs

Q: Which licence does this switch ship with?
A: It carries the Network Advantage perpetual licence tier, indicated by the -A suffix. Cisco DNA Advantage term subscriptions are available as an optional add-on.

Q: Can it run from both DC and AC power?
A: Yes. The internal 315W power supply accepts 120-418 VDC or 100-277 VAC at 50-60 Hz. The HVDC power cable is supplied by the customer or integrator.

Q: How much PoE power does it provide?
A: It provides a 240W PoE budget shared across 12 PoE+ ports, with up to 30W per port under IEEE 802.3at. There is no secondary power supply option.

Q: Can I stack it with other switches?
A: No. The Catalyst 9200CX does not support stacking, so each unit is managed individually.

Q: What mounting options are available?
A: Compatible accessories include C9K-CMPCT-DIN-MNT, RACKMNT-19-CMPACT, C9K-WALL-TRAY, C9K-MGNT-TRAY and C9K-CMPCT-DESK-MNT. The C9K-CMPCT-PWR-CLP power clip is not compatible with HVDC SKUs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
