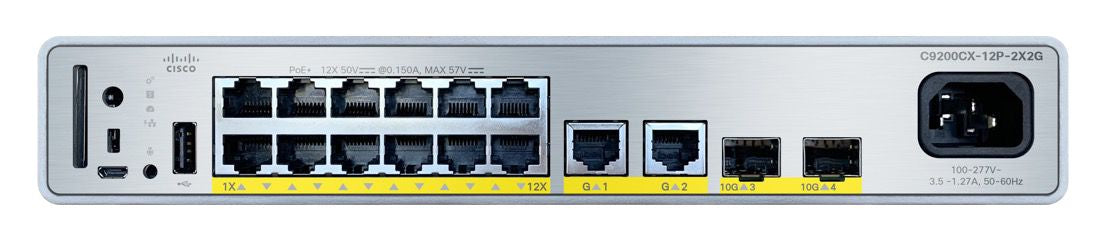

• Cisco C9200CX-12P-2X2G-E compact switch with 10G SFP+ ports
1 1

Cisco

Cisco C9200CX-12P-2X2G-E | Catalyst 9200CX 12-Port PoE+ Switch, 240W, Network Essentials

C9200CX-12P-2X2G-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless, compact Layer 2/3 managed access switch built for branch offices, remote sites and spaces outside the wiring closet, such as desks, classrooms and retail areas where a small, silent PoE+ switch with 10G uplinks is needed.

This model provides 12 x 10/100/1000 PoE+ downlink ports with a 240W total PoE budget, backed by a fixed internal 315W AC power supply. Uplinks are 2 x 10G SFP+ and 2 x 1G copper, all fixed. Switching capacity is 68 Gbps with a forwarding rate of 50.59 Mpps. It carries the perpetual Network Essentials licence tier, as shown by the -E suffix, and runs Cisco IOS XE with Smart Licensing. An optional Cisco DNA Essentials subscription must match the network tier and is needed for Catalyst Center features.

It can be managed from the CLI, on-premises Cisco Catalyst Center, or monitored from the Meraki dashboard. Stacking is not available on the 9200CX.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless compact form factor for deployment outside the wiring closet
- PoE+ on all 12 downlink ports within a 240W budget
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Cisco Software-Defined Access (SD-Access) support with 16 virtual networks
- AES-256 MACsec encryption and policy-based segmentation
- PTP (IEEE 1588v2) support and streaming telemetry
- Plug and Play (PnP) enabled
- Managed by CLI, Cisco Catalyst Center or monitored via the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9200CX-12P-2X2G
- Downlink ports: 12 x 10/100/1000 PoE+
- Uplink ports: 2 x 10G SFP+ and 2 x 1G copper, fixed
- PoE budget: 240W
- Power supply: 315W AC internal, fixed
- Cooling: Fanless
- Switching capacity: 68 Gbps
- Forwarding rate: 50.59 Mpps
- Stacking: Not supported
- Software tier: Network Essentials
- Packet buffer: 6 MB
- DRAM: 4 GB
- Flash: 8 GB
- Total MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 2.99 kg
- Operating temperature: -5 to 45 C
- Storage: Supports up to 4G Micro-SD card

FAQs

Q: Which licence tier does this switch carry?
A: It ships with the perpetual Network Essentials tier, indicated by the -E suffix. An optional Cisco DNA Essentials subscription can be added and must match the network tier.

Q: How much PoE power is available?
A: The fixed internal 315W AC power supply provides a 240W PoE+ budget shared across the 12 downlink ports.

Q: Can I stack this switch?
A: No. StackWise stacking is not available on the Catalyst 9200CX range.

Q: Does it have a redundant power supply option?
A: No. It uses a fixed internal AC power supply and no redundant or external supply is offered for this SKU.

Q: How does it differ from the Network Advantage version?
A: The hardware is the same. This SKU carries Network Essentials, while the -A model carries the Network Advantage licence tier.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
