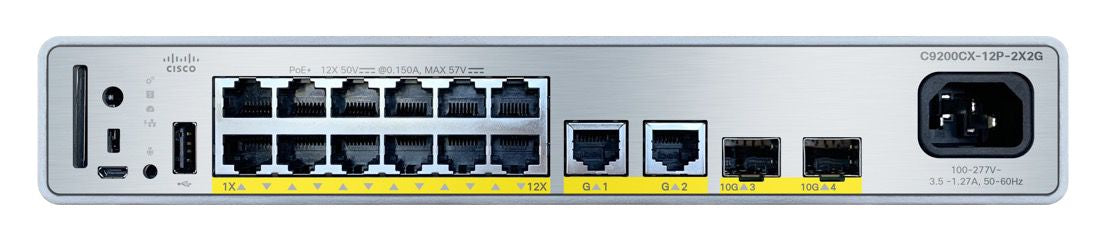

• Cisco C9200CX-12P-2X2G-A compact switch with 10G SFP+ ports
1 1

Cisco

Cisco C9200CX-12P-2X2G-A | Catalyst 9200CX 12-Port PoE+ Switch, 240W, Network Advantage

C9200CX-12P-2X2G-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200CX is a fanless, compact Layer 3 access switch built for branch offices, remote sites, under-desk installs and quiet or space-constrained environments. This C9200CX-12P-2X2G-A powers IP phones, access points and cameras, and can act as an SD-Access fabric edge node.

It provides 12 Gigabit copper downlink ports with PoE+ and a 240W PoE budget from an internal 315W AC power supply. Uplinks are fixed, with 2x 1G copper and 2x 10G SFP+ ports. Switching capacity is 68 Gbps with a forwarding rate of 50.59 Mpps, backed by 4 GB DRAM and 8 GB flash. This SKU ships with the Network Advantage licence tier, which separates it from the Network Essentials variant of the same hardware. Stacking is not supported on the 9200CX.

The 10G SFP+ uplinks accept 10G SFP+ and 1G SFP optics. Mounting options include the C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT, RACKMNT-19-CMPACT, C9K-WALL-TRAY, C9K-CMPCT-DESK-MNT and C9K-CMPCT-CBLE-GRD accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fanless compact design suited to branch and edge deployments
- Cisco IOS XE with model-driven programmability and streaming telemetry
- Cisco SD-Access support with 16 virtual networks
- AES-256 MACsec encryption
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- Precision Time Protocol (IEEE 1588v2) support
- Perpetual PoE and Fast PoE
- Plug and Play (PnP) enabled
- Cloud monitoring and management via the Meraki dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 12 x 10/100/1000 PoE+
- Uplinks: 2x 1G copper, 2x 10G SFP+ (fixed)
- PoE budget: 240W
- Power supply: 315W AC internal
- Cooling: Fanless
- Switching capacity: 68 Gbps
- Forwarding rate: 50.59 Mpps (64-byte packets)
- Stacking: Not supported
- Software tier: Network Advantage
- DRAM: 4 GB
- Flash: 8 GB
- Packet buffer: 6 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Total MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- SD-Access virtual networks: 16
- Dimensions (H x W x D): 4.4 x 26.9 x 24.4 cm
- Weight: 2.99 kg
- Input voltage: 100 to 240 VAC, 50 to 60 Hz
- Power consumption (115VAC, full port traffic): 40.2 W
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 90% non-condensing

FAQs

Q: Which licence tier does this switch include?
A: The -A suffix indicates the Network Advantage perpetual licence tier. Optional Cisco DNA Advantage subscriptions are available, and the DNA tier must match the Network tier. Cisco Smart Licensing is supported.

Q: How much PoE power does it provide?
A: It provides a 240W PoE+ budget across its 12 downlink ports, drawn from the internal fixed 315W AC power supply. There is no redundant or secondary power supply option.

Q: Which optics work in the uplink ports?
A: The 2x 10G SFP+ uplinks accept 10G SFP+ and 1G SFP optics. The two additional uplinks are 1G copper ports.

Q: Can this switch be stacked?
A: No. Stacking is not available on the Catalyst 9200CX, so each unit is deployed and managed as a standalone switch.

Q: How does it differ from the Network Essentials version?
A: The hardware is the same 12-port PoE+ 9200CX. This SKU ships with the Network Advantage licence tier, while the -E variant ships with Network Essentials.

Q: What mounting options are available?
A: Compatible accessories include the C9K-MGNT-TRAY, C9K-CMPCT-DIN-MNT, RACKMNT-19-CMPACT, C9K-WALL-TRAY, C9K-CMPCT-DESK-MNT and C9K-CMPCT-CBLE-GRD.
