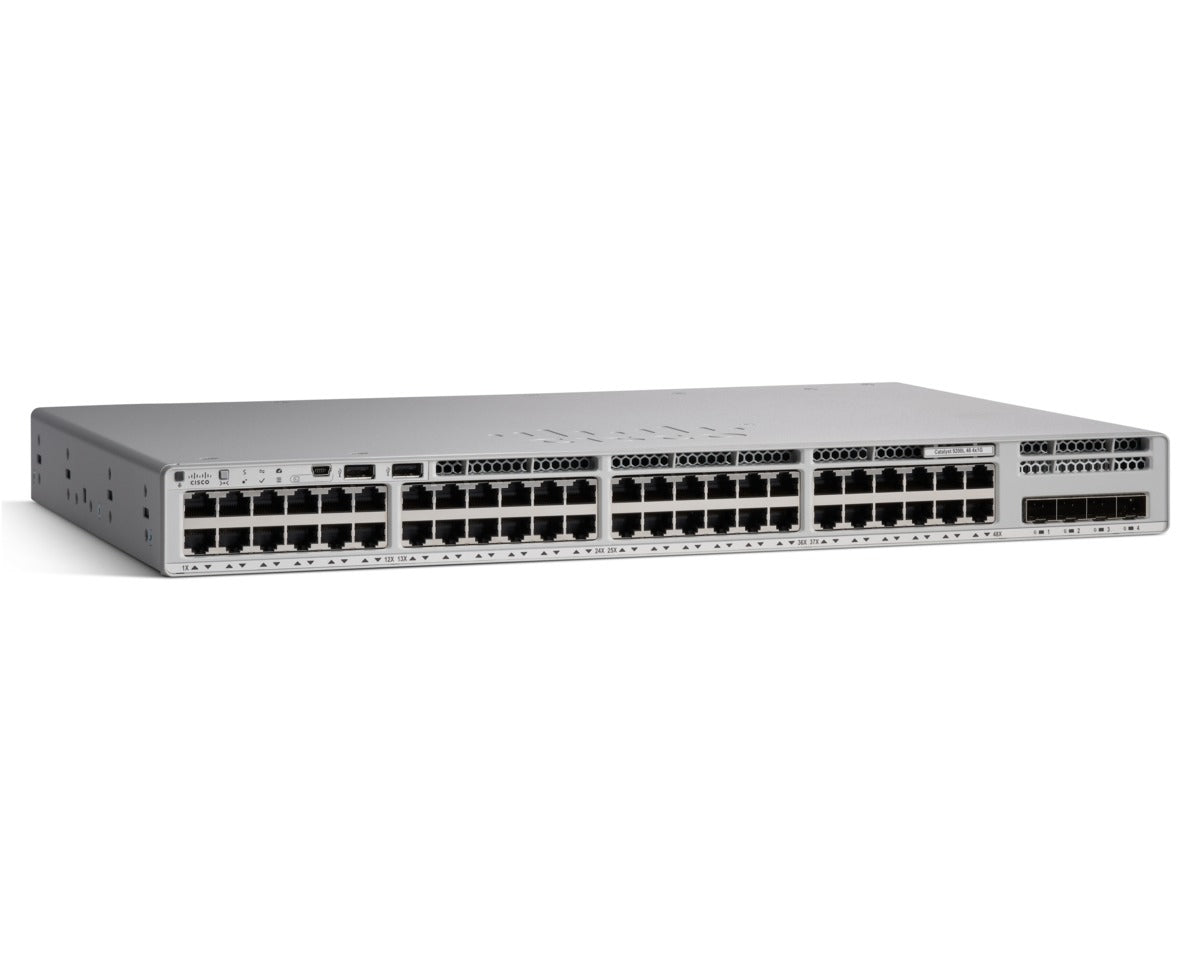

• Cisco C9200-48T-A Catalyst 9300 switch with 48x1G ports and silver finish
1 1

Cisco

Cisco C9200-48T-A | Catalyst 9200 48-Port Gigabit Switch, Modular Uplinks, Layer 3

C9200-48T-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200-48T-A is an enterprise-class Layer 3 managed switch delivering 48 Gigabit Ethernet data ports with modular uplink flexibility for scalable campus and branch deployments. Running Network Advantage software, it provides advanced routing protocols including OSPF, EIGRP, and BGP stub, along with robust security features such as MACsec encryption, TrustSec segmentation, and 802.1X authentication. With StackWise-160 technology supporting up to 160 Gbps stacking bandwidth, field-replaceable power supplies and fans, and Cisco DNA Center automation, this switch delivers reliable, high-performance connectivity for modern enterprise networks.

Features

Layer 3 routing protocols: OSPF, EIGRP, BGP stub, RIP, ISIS, Policy-Based Routing (PBR)
- StackWise-160 technology: up to 160 Gbps stacking bandwidth, supports up to 8 switches in a single logical stack
- Advanced security: MACsec AES-128 encryption, Cisco TrustSec policy-based segmentation, 802.1X authentication, Dynamic ARP Inspection, IP Source Guard
- Quality of Service (QoS): advanced traffic prioritization with 1,000 QoS scale entries
- Access Control Lists (ACLs): 1,600 ACL scale entries for granular traffic filtering
- Flexible NetFlow (FNF): 16,000 flow entries for advanced traffic monitoring and analytics
- Multicast routing: IGMP, PIM support with 1,000 multicast routing entries
- VLAN support: 4,096 VLAN IDs, up to 16 Switched Virtual Interfaces (SVIs) for inter-VLAN routing
- Virtual Network (VN) support: 4 Virtual Networks for segmentation and isolation
- Field-Replaceable Units (FRU): modular uplinks, dual redundant fans, and redundant power supplies for high availability
- Energy Efficient Ethernet (IEEE 802.3az): reduced power consumption on idle ports
- Network automation: Cisco DNA Center integration, Plug and Play (PnP) zero-touch provisioning, NETCONF/RESTCONF APIs
- Model-driven programmability: YANG data models, streaming telemetry for real-time monitoring
- Cisco IOS XE operating system: common OS across Catalyst 9000 family with consistent CLI and feature parity

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 ports (data only, non-PoE)
- Modular uplink options: supports 4x 1G, 4x 10G, 2x 25G, or 2x 40G via field-replaceable network modules (sold separately)
- Switching capacity: 176 Gbps
- Forwarding rate: 130.95 Mpps (wire-speed, non-blocking architecture)
- StackWise-160 support: up to 160 Gbps stacking bandwidth across 8 switches
- MAC address table: 32,000 entries
- IPv4 routing entries: 4,000 | IPv6 routing entries: 2,000
- DRAM: 4 GB | Flash memory: 4 GB
- Default power supply: PWR-C6-125WAC (supports optional redundant secondary PSU)
- Dual field-replaceable redundant fans (FRU)
- Dimensions (H x W x D): 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)
- Management: Cisco DNA Center, CLI, Web GUI, SNMP, NETCONF, RESTCONF
- Operating temperature: -5°C to 45°C (up to 5,000 ft), -5°C to 40°C (up to 10,000 ft)
- Cisco IOS XE Software with Network Advantage license included

FAQs

Q: Does the C9200-48T-A support Power over Ethernet (PoE)?
A: No, the C9200-48T-A is a data-only model and does not provide PoE. For PoE requirements, consider the C9200-48P-A (full PoE+) or C9200-48PL-A (partial PoE+) models.

Q: What uplink modules are compatible with this switch?
A: The C9200-48T-A supports modular uplink options via field-replaceable C9200-NM network modules, including 4x 1G SFP, 4x 10G SFP+, 2x 25G SFP28, or 2x 40G QSFP+ configurations. Modules are sold separately.

Q: Can I stack the C9200-48T-A with other Catalyst 9200 models?
A: Yes, the C9200-48T-A supports StackWise-160 technology and can be stacked with other modular C9200 models (not C9200L fixed models) for up to 160 Gbps stacking bandwidth and unified management across up to 8 switches.

Q: What advanced features are included with the Network Advantage license?
A: Network Advantage unlocks full Layer 3 routing (OSPF, EIGRP, BGP stub, PBR), advanced security (MACsec, TrustSec, dynamic segmentation), VXLAN support, and full integration with Cisco DNA Center for intent-based networking and automation.

Q: Is a redundant power supply included with the switch?
A: The C9200-48T-A ships with one PWR-C6-125WAC power supply. A second identical power supply can be purchased separately for power redundancy or to support additional powered devices in the future.
