• Cisco C9200-48PXG-E 48-port PoE+ switch with mGig uplinks
1 1

Cisco

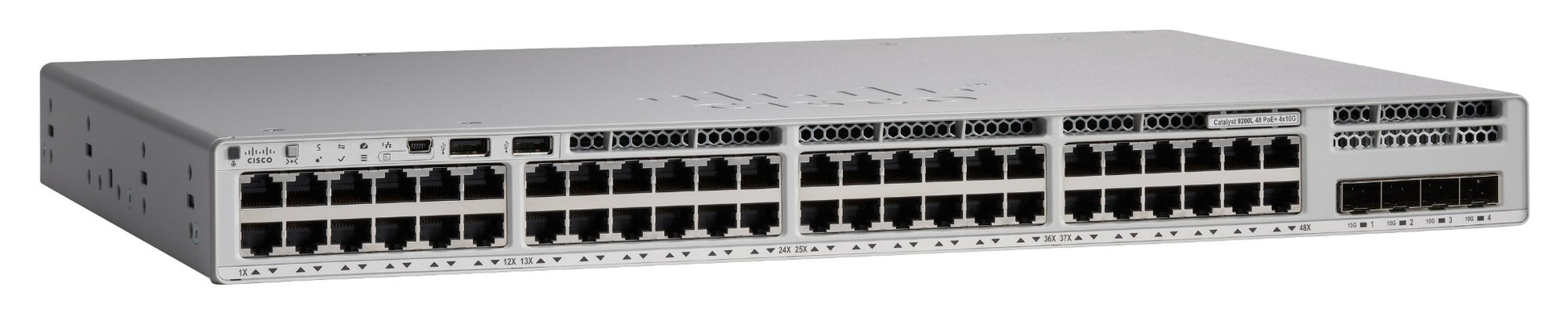

Cisco C9200-48PXG-E | Catalyst 9200 48-Port PoE+ Switch, 8x mGig, 740W, Modular Uplinks

C9200-48PXG-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200-48PXG-E Catalyst 9200 Series Switch delivers enterprise-grade performance for branch and campus networks with 48 full PoE+ ports, including 8 Multigigabit ports supporting up to 10Gbps and 40 ports at 1Gbps. With modular uplink flexibility supporting 4x10G, 2x25G, or 2x40G network modules, 740W PoE budget, and StackWise-160 stacking, it provides Layer 3 routing, advanced security with MACsec encryption, and streamlined management through Cisco DNA Center. Network Essentials license included.

Features

Layer 3 Routing: Full IP routing with OSPF, EIGRP, ISIS, RIP, HSRP, VRRP, PIM-SM, PIM-SSM, MSDP, policy-based routing (PBR)
- Security: AES-128 MACsec encryption, IEEE 802.1X authentication, Flexible NetFlow (16,000 entries), ACL support (1,600 entries), Control Plane Protection (CoPP), First Hop Security (FHS), PVLAN support
- Quality of Service: DiffServ Code Point (DSCP) marking, Class of Service (CoS), Shaped Round Robin (SRR) queuing, 1,000 QoS scale entries, per-port rate limiting
- High Availability: StackWise-160 with 160 Gbps bandwidth, dual redundant FRU power supplies, redundant fans, cold patching, perpetual PoE
- Spanning Tree: IEEE 802.1D STP, 802.1w Rapid STP, 802.1s Multiple STP (MSTP), Rapid Per-VLAN Spanning Tree Plus (PVRST+)
- Link Aggregation: IEEE 802.3ad LACP, up to 8 ports per group
- Management: Cisco DNA Center integration, Plug and Play (PnP) provisioning, streaming telemetry, REST APIs, NETCONF/YANG, Web UI, CLI, SNMP v1/v2c/v3
- Energy Efficiency: IEEE 802.3az Energy Efficient Ethernet (EEE), per-port power consumption control, per-port PoE power sensing
- Network Automation: Policy-based segmentation, integration with Cisco Identity Services Engine (ISE), programmability with IOS XE and UADP 2.0 ASIC
- Multicast: IGMP v1/v2/v3, IGMP snooping, Protocol Independent Multicast (PIM) sparse mode and source-specific mode
- IPv6 Support: Dual IPv4/IPv6 stack, OSPFv3, EIGRP for IPv6, RIPng, IPv6 ACLs, DHCPv6
- Monitoring: Switched Port Analyzer (SPAN), Remote SPAN (RSPAN), Embedded Event Manager (EEM), blue beacon LED for device identification

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48 Ports Total: 8x Multigigabit (100M/1G/2.5G/5G/10G) PoE+ ports + 40x 10/100/1000 PoE+ ports
- PoE Budget: 740W with single PSU (PWR-C6-1KWAC), expandable to 1440W with secondary PSU
- Modular Uplinks: 1 expansion slot supporting optional modules - C9200-NM-4X (4x 10G SFP+), C9200-NM-2Y (2x 25G SFP28), C9200-NM-2Q (2x 40G QSFP+)
- Switching Capacity: 400 Gbps standalone, 580 Gbps when stacked
- Forwarding Rate: 297.61 Mpps standalone, 431 Mpps when stacked
- Stacking: StackWise-160 technology, 160 Gbps stacking bandwidth, up to 8 switches per stack
- Memory: 4 GB DRAM, 4 GB Flash
- MAC Address Table: 32,000 entries
- VLAN Support: 4,096 VLAN IDs, 1,000 Switched Virtual Interfaces (SVIs)
- Routing Tables: 4,000 IPv4 entries, 2,000 IPv6 entries
- Packet Buffer: 6 MB
- Management: CLI, Web UI, Cisco DNA Center, SNMP, USB-C console, RJ-45 console
- Power Supply: Dual hot-swappable FRU AC power supplies (1 included), 100-240V AC
- Cooling: 2 internal fixed redundant fans
- Dimensions: 1.73 x 17.5 x 15.4 inches (H x W x D), 1RU rack-mountable
- Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3af, 802.3at, 802.3bz, 802.1Q, 802.1D, 802.1w, 802.1s, 802.1x, 802.3ad (LACP), 802.3az (EEE)

FAQs

Q: What modular uplink options are compatible with the C9200-48PXG-E?
A: This switch supports three optional network modules: C9200-NM-4X for 4x 10G SFP+ uplinks, C9200-NM-2Y for 2x 25G SFP28 uplinks, or C9200-NM-2Q for 2x 40G QSFP+ uplinks. The switch ships without a module installed, allowing you to select the uplink configuration that best matches your network requirements.

Q: Can I stack this switch with other Catalyst 9200 models?
A: Yes, the C9200-48PXG-E supports StackWise-160 stacking with up to 8 switches in a stack, providing 160 Gbps stacking bandwidth. However, you can only stack modular C9200 switches together - they cannot be mixed with fixed C9200L models or other Catalyst switch series. Stacking requires the C9200-STACK-KIT and compatible stacking cables.

Q: What is the difference between the 8 mGig ports and the 40 standard ports?
A: The 8 Multigigabit ports support IEEE 802.3bz and can auto-negotiate at 100M, 1G, 2.5G, 5G, or 10G speeds over standard Cat5e/Cat6/Cat6a cabling, making them ideal for Wi-Fi 6/6E access points. The 40 standard ports operate at 10/100/1000 speeds. All 48 ports support full PoE+ (802.3at) up to 30W per port.

Q: Does this switch require a software license to operate?
A: The C9200-48PXG-E includes a perpetual Network Essentials license, providing Layer 2 and Layer 3 routing features including OSPF, EIGRP, RIP, ISIS, and basic network automation. For advanced features like advanced security and analytics, you can upgrade to Network Advantage. Cisco DNA subscriptions are optional and provide additional cloud management and assurance capabilities.

Q: How much PoE power can I allocate across all 48 ports?
A: With the default PWR-C6-1KWAC power supply, you have 740W available for PoE. By adding a second identical power supply, the total PoE budget increases to 1440W. The switch intelligently manages power allocation across all 48 PoE+ ports, with each port capable of delivering up to 30W per IEEE 802.3at.
