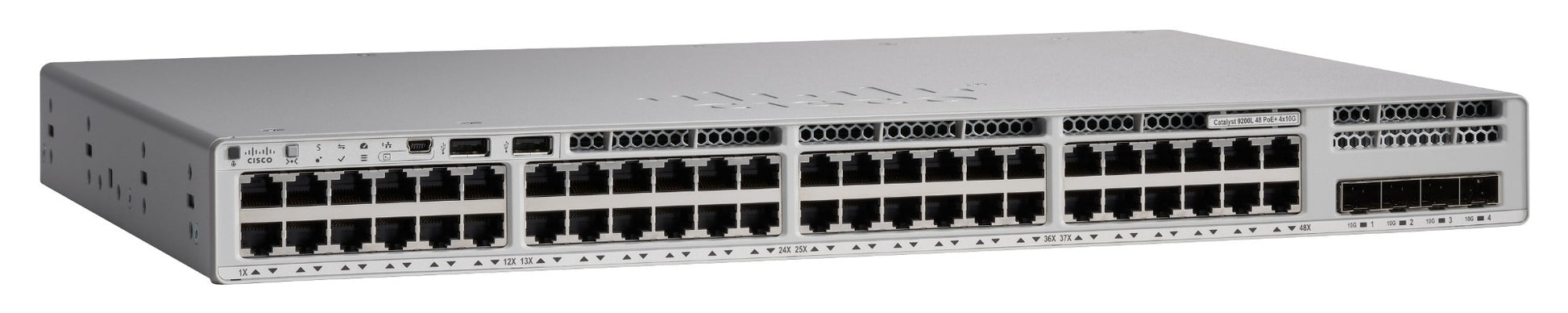

• Cisco C9200-48PXG-A switch with 48x1G PoE+ ports and modular uplinks
1 1

Cisco

Cisco C9200-48PXG-A | Catalyst 9200 48-Port PoE+ Switch, 8x mGig, Network Advantage

C9200-48PXG-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 48-port multigigabit switch is a modular-uplink Layer 3 access switch built for branch-office and campus access layers that need full PoE+ and multigigabit connectivity. It suits Wi-Fi 6 and 6E access points, IP phones and IoT endpoints, and it can run as an SD-Access fabric edge.

There are 48 full PoE+ copper ports, made up of 8 multigigabit ports running up to 10G and 40 ports running up to 1G. Switching capacity is 400 Gbps (580 Gbps when stacked) with a forwarding rate of 297.61 Mpps. The default PWR-C6-1KWAC supply provides a 740W PoE budget, rising to 1440W with a second identical supply. This SKU carries the Network Advantage licence tier and supports 4 virtual networks for SD-Access.

Uplinks are modular. It works with the C9200-NM-4X (4x 1G/10G), C9200-NM-2Y (2x 25G) and C9200-NM-2Q (2x 40G) network modules. It stacks with other modular Catalyst 9200 switches at the same licence level using StackWise-160 and the C9200-STACK-KIT, and the fan module is FAN-T2=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 48 ports, up to 30W per port, with Perpetual PoE and Fast PoE support
- Multigigabit ports up to 10G suit Wi-Fi 6 and 6E access points
- Field-replaceable redundant power supplies, fans and uplink modules
- StackWise-160 stacking with a single management and control plane
- Cisco IOS XE with NETCONF/RESTCONF/YANG programmability and streaming telemetry
- SD-Access fabric edge support with policy-based segmentation and Catalyst Center management
- AES-128 MACsec encryption with image signing and Secure Boot
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x full PoE+ (8 x mGig up to 10G, 40 x up to 1G)
- Uplinks: modular via C9200-NM-4X, C9200-NM-2Y or C9200-NM-2Q network modules
- Switching capacity: 400 Gbps (580 Gbps with stacking)
- Forwarding rate: 297.61 Mpps (431 Mpps with stacking)
- Stacking: StackWise-160, 160 Gbps, up to 8 members
- Default power supply: PWR-C6-1KWAC (1000W AC)
- PoE budget: 740W with one PSU, 1440W with two PSUs
- Software licence tier: Network Advantage
- Virtual networks (SD-Access): 4
- Memory: 4 GB DRAM, 4 GB flash
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- Packet buffer: 12 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Fans: FRU redundant (FAN-T2=)
- Form factor: 1RU rack-mount
- Chassis dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.45 kg
- Power consumption (115VAC, no PoE, weighted average): 109.46 W
- Operating temperature: -5 to +45 C up to 1500 m
- Relative humidity: 5% to 90% noncondensing
- Safety and EMC: UL/IEC/EN 60950-1/62368-1, FCC Part 15 Class A, CISPR 32 Class A

FAQs

Q: Which licence does this switch ship with?
A: It ships with the Network Advantage perpetual licence tier. Cisco DNA Essentials or Advantage term subscriptions are available, and the DNA tier must match the Network licence tier.

Q: How much PoE power does it provide?
A: With one PWR-C6-1KWAC supply the PoE budget is 740W. Fitting a second identical supply raises it to 1440W.

Q: Which uplink modules does it support?
A: It supports the C9200-NM-4X (4x 1G/10G), C9200-NM-2Y (2x 25G) and C9200-NM-2Q (2x 40G) network modules. The C9200-NM-4G is not supported on this model.

Q: What can it be stacked with?
A: It stacks with other modular Catalyst 9200 switches at the same licence level using the C9200-STACK-KIT. It cannot be stacked with the C9200L or C9200CX.

Q: How does this SKU differ from the C9200-48PXG-E?
A: This SKU carries the Network Advantage licence tier. The hardware is the same 48-port PoE+ design with 8 multigigabit ports and 40 ports at 1G.
