• Cisco C9200-48PL-E 48-port partial PoE+ switch with modular uplinks
1 1

Cisco

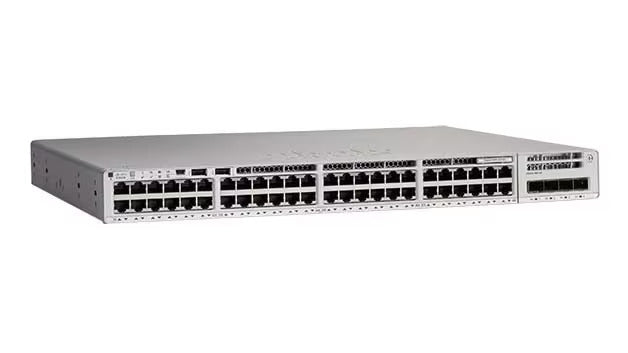

Cisco C9200-48PL-E | Catalyst 9200 48-Port Partial PoE+ Switch, 370W, Network Essentials

C9200-48PL-E

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 C9200-48PL-E is a stackable, 48-port Gigabit access switch with partial PoE+ and modular uplinks, running Cisco IOS XE. It suits branch offices and campus access layers that need PoE+ for IP phones and Wi-Fi access points, SD-Access fabric edge deployments, and smaller networks that value redundant power and fans.

This SKU provides 48 x 10/100/1000 ports with partial PoE+ and a 370W PoE budget when fitted with a single PWR-C6-600WAC, rising to 740W with a second 600W supply. Switching capacity is 176 Gbps (336 Gbps when stacked) with a forwarding rate of 130.95 Mpps. StackWise-160 delivers 160 Gbps of stacking bandwidth across up to 8 members. It ships with the perpetual Network Essentials licence, and Cisco DNA Essentials subscriptions can be added, with an upgrade path to Network Advantage.

Modular uplinks are available as C9200-NM-4G or C9200-NM-4X, and the power supplies, fans and uplink modules are field-replaceable. Stacking is supported with other C9200 modular models at the same licence level using the C9200-STACK-KIT.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Partial PoE+ (IEEE 802.3at, up to 30W per port) with Perpetual PoE and Fast PoE
- Field-replaceable redundant power supplies, redundant fans and modular uplink modules
- StackWise-160 stacking of up to 8 members as a single virtual switch
- Layer 3 capabilities including static routing, RIP, OSPF, EIGRP and routed access
- AES-128 MACsec encryption with Secure Boot and image signing
- Cisco SD-Access support with 4 virtual networks
- Cisco IOS XE programmability with NETCONF, RESTCONF, YANG and model-driven telemetry
- Cloud management with IOS XE via the Meraki dashboard
- Advanced QoS with eight egress queues per port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000, partial PoE+
- Uplinks: modular (C9200-NM-4G, C9200-NM-4X)
- PoE budget: 370W with one PWR-C6-600WAC, 740W with a second
- Default power supply: PWR-C6-600WAC, field-replaceable and redundant
- Fans: FRU redundant
- Switching capacity: 176 Gbps (336 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (250 Mpps with stacking)
- Stacking: StackWise-160, 160 Gbps, up to 8 members
- Licence: Network Essentials
- DRAM: 4 GB
- Flash: 4 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Flexible NetFlow: 16,000 flows
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.5 kg
- Operating temperature: -5 to 45 C up to 1500 m
- Power input: 100-240 VAC, 50-60 Hz

FAQs

Q: Which licence does the C9200-48PL-E include?
A: It ships with the perpetual Network Essentials licence. Cisco DNA Essentials subscriptions can be added, and an upgrade to Network Advantage is available.

Q: How much PoE power does it provide?
A: A single PWR-C6-600WAC provides a 370W PoE+ budget. Adding a second PWR-C6-600WAC raises the budget to 740W and provides power redundancy.

Q: Which uplink modules does it support?
A: It supports the C9200-NM-4G and C9200-NM-4X uplink modules, plus the C9200-NM-BLANK. The 2Y and 2Q modules are only supported on PXG models.

Q: Can it be stacked with other Catalyst 9200 switches?
A: Yes, with other C9200 modular models at the same licence level using the C9200-STACK-KIT. It cannot be stacked with C9200L or C9200CX models.

Q: How does it differ from the C9200-48P-E?
A: The PL model provides partial PoE+ with a 370W budget on the default supply, while the full 48P model supports PoE+ on all ports with a higher budget.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
