• Cisco C9200-48PL-A 48-port Gigabit Ethernet switch with PoE+
1 1

Cisco

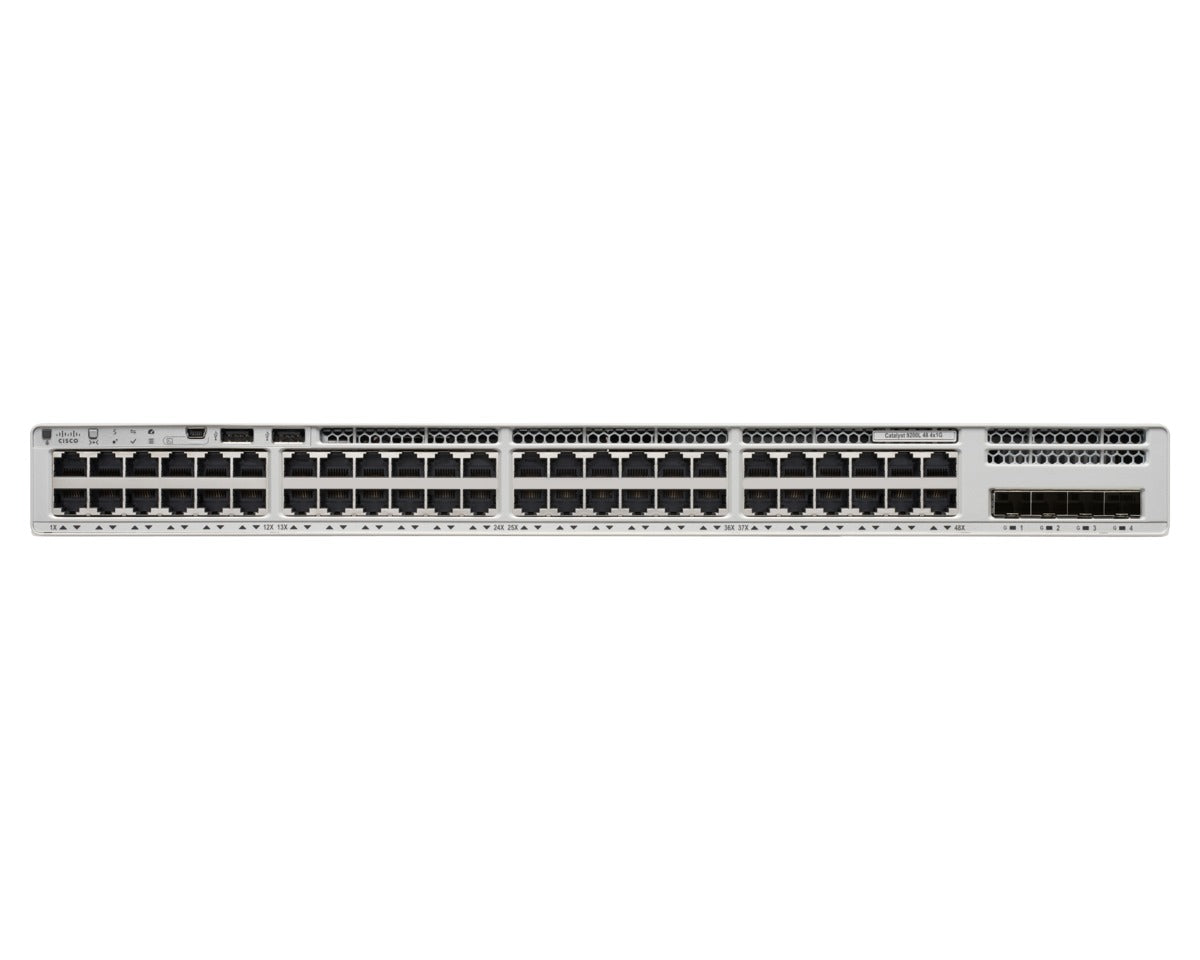

Cisco C9200-48PL-A | Catalyst 9200 48-Port Partial PoE+ Switch, 370W, Network Advantage

C9200-48PL-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200-48PL-A is a modular Catalyst 9200 Series switch featuring 48 Gigabit Ethernet ports with partial PoE+ capability and a 370W power budget. Designed for secure branch and enterprise access deployments, it offers flexible modular uplink options supporting 4x1G, 4x10G, or 2x25G connectivity. With Network Advantage licensing, the switch delivers advanced Layer 3 routing, MACsec encryption, and StackWise-160 stacking up to 160 Gbps for scalable, resilient network infrastructure.

Features

Cisco IOS XE operating system with programmability and automation support
- UADP 2.0 Mini ASIC for wire-speed performance and hardware-based security
- Layer 3 routing with OSPF, EIGRP, ISIS, RIP, and routed access support
- AES-128 MACsec encryption for secure data transmission
- Policy-based network segmentation and TrustSec integration
- SD-Access fabric edge support for intent-based networking
- Full Flexible NetFlow (16,000 flows) for advanced traffic monitoring
- Perpetual PoE to maintain power during switch reloads
- Energy Efficient Ethernet (EEE) for reduced power consumption
- Hot-swappable modular uplinks for flexible connectivity and investment protection
- Dual redundant field-replaceable power supplies (FRU)
- Dual redundant field-replaceable fan modules for high availability
- Plug and Play (PnP) provisioning for zero-touch deployment
- Stacking bandwidth up to 160 Gbps with StackWise-160 technology
- Front and rear blue beacon LEDs for easy physical identification
- IPv6 ready with dual-stack support
- Comprehensive QoS with 8 egress queues per port
- Cisco DNA Center and Catalyst Center integration for centralized management
- RFID tag for automated asset tracking and inventory management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

48x 10/100/1000BASE-T RJ45 ports with partial PoE+ support (IEEE 802.3at)
- PoE Budget: 370W with single PWR-C6-600WAC power supply (740W with dual power supplies)
- Modular uplink slot supporting field-replaceable network modules: C9200-NM-4G (4x1G SFP), C9200-NM-4X (4x10G SFP+), C9200-NM-2Y (2x25G SFP28), or C9200-NM-2Q (2x40G QSFP+)
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps
- Memory: 8 GB DRAM, 16 GB Flash
- Packet Buffer: 6 MB
- StackWise-160 support: up to 8 switches with 160 Gbps stacking bandwidth
- Layer 3 Routing: OSPF, EIGRP, ISIS, RIP, static routing, 11,000 IPv4 routes
- MAC Address Table: 16,000 entries
- Management: CLI, WebUI, SNMP v1/v2c/v3, Cisco DNA Center, Cisco Catalyst Center, REST APIs
- Redundant hot-swappable AC power supplies and field-replaceable fans
- Dimensions: 44.5 x 44.2 x 4.4 cm (1RU)
- Operating Temperature: 0°C to 45°C
- Certifications: IEEE 802.3, 802.3at, 802.1Q, 802.1X, FCC, CE

FAQs

Q: What is the difference between partial PoE+ and full PoE+ on the C9200-48PL-A?
A: The C9200-48PL-A supports partial PoE+, meaning it provides PoE+ (up to 30W per port) across all 48 ports but with a limited total power budget of 370W with a single power supply. This allows approximately 12 ports to receive full PoE+ simultaneously. A second power supply can be added to increase the total PoE budget to 740W.

Q: What uplink modules are compatible with this switch?
A: The C9200-48PL-A supports hot-swappable modular uplinks including C9200-NM-4G (4x 1G SFP), C9200-NM-4X (4x 10G SFP+), C9200-NM-2Y (2x 25G SFP28), and C9200-NM-2Q (2x 40G QSFP+). Uplink modules are purchased separately and can be changed without powering down the switch.

Q: Can I stack the C9200-48PL-A with C9200L models?
A: No. Mixed stacking between modular C9200 switches and fixed C9200L switches is not supported. The C9200-48PL-A can only be stacked with other C9200 modular models using StackWise-160 technology, supporting up to 8 switches in a single stack.

Q: What is included with Network Advantage licensing?
A: Network Advantage licensing includes advanced Layer 3 routing protocols (OSPF, EIGRP, ISIS, RIP), MACsec encryption, advanced QoS, SD-Access support, Full Flexible NetFlow, and programmability features via REST APIs and model-driven telemetry. It does not require ongoing subscription fees for base functionality.

Q: Is the C9200-48PL-A suitable for connecting Wi-Fi 6 access points?
A: Yes, the switch is ideal for Wi-Fi 6 deployments. While it provides Gigabit Ethernet ports rather than multigigabit, it offers sufficient PoE+ power and bandwidth for standard Wi-Fi 6 access points. For Wi-Fi 6E or higher-density deployments requiring mGig speeds, consider the C9200-48PXG model.
