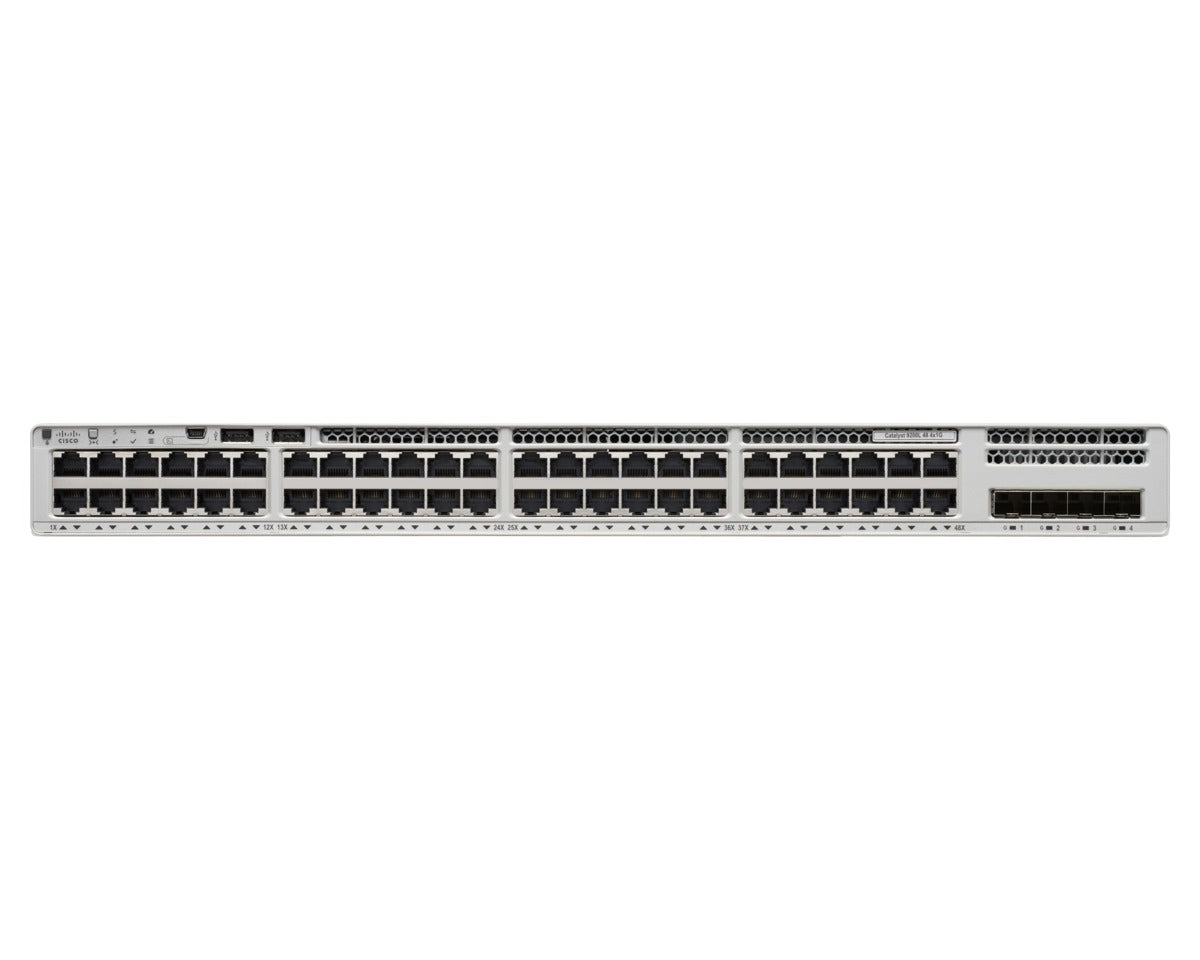

Cisco C9200-48PB-A | Catalyst 9200 48-Port PoE+ Switch, Network Advantage, 32 VN

C9200-48PB-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 C9200-48PB-A is a 48-port Gigabit PoE+ access switch with modular uplinks, built for branch-office and campus access layers. Full PoE+ on every port suits IP phones, Wi-Fi access points and cameras, and the enhanced VRF 'PB' variant supports up to 32 virtual networks, which makes it a fit for SD-Access fabric edge deployments.

There are 48 x 10/100/1000 PoE+ ports (802.3at, up to 30W per port). Available PoE is 740W with a single PWR-C6-1KWAC power supply and 1440W with two. Switching capacity is 176 Gbps (336 Gbps when stacked) and the forwarding rate is 130.95 Mpps. It carries 4 GB DRAM and 4 GB flash and runs Cisco IOS XE. This SKU ships with the Network Advantage licence tier, which adds advanced routing, segmentation, multicast, scale and security over Network Essentials. It supports field-replaceable power supplies, fans and uplink modules.

Uplinks use the C9200-NM-4G (4x1G) or C9200-NM-4X (4x1G/10G) network modules. StackWise-160 stacking supports up to 8 members using the C9200-STACK-KIT, and 32-VN PB switches stack only with other PB SKUs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 48 ports with perpetual PoE and Fast PoE
- Field-replaceable redundant power supplies, fans and modular uplinks
- StackWise-160 stacking with sub-50ms SSO failover
- Enhanced VRF supporting 32 virtual networks for SD-Access
- AES-128 MACsec encryption and policy-based segmentation with TrustSec
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- NETCONF, RESTCONF and YANG programmability with model-driven telemetry
- Plug and Play zero-touch provisioning and Flexible NetFlow
- Secure Boot with image signing and Trust Anchor module

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 full PoE+ (802.3at, up to 30W per port)
- Uplinks: modular, C9200-NM-4G or C9200-NM-4X network modules
- Default primary power supply: PWR-C6-1KWAC (1KW AC)
- PoE budget: 740W with one PSU, 1440W with two PSUs
- PoE budget with PWR-C6-715WDC (single / dual): 485W / 970W
- Switching capacity: 176 Gbps (336 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (250 Mpps with stacking)
- Stacking: StackWise-160, 160 Gbps, up to 8 members
- Virtual networks: 32 (enhanced VRF)
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- Packet buffer: 6 MB
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.5 kg
- Operating temperature: -5 to +45 C up to 1500 m
- Fans: FRU redundant (FAN-T2=)
- Software: Cisco IOS XE 16.9.2 or later
- Licence tier: Network Advantage

FAQs

Q: Which licence tier does this switch include?
A: The -A suffix means it ships with the Network Advantage perpetual network licence. A Cisco DNA subscription, if used, must match that tier.

Q: How much PoE power does it provide?
A: It delivers 740W of PoE with a single PWR-C6-1KWAC power supply and 1440W with a second one. Powering all 48 ports at 30W needs the 1440W configuration.

Q: Which uplink modules does it use?
A: This 48-port SKU uses the C9200-NM-4G (4x1G) or C9200-NM-4X (4x1G/10G) network modules. The C9200-NM-2Y and NM-2Q modules are supported only on PXG models.

Q: Can it be stacked with other Catalyst 9200 switches?
A: Yes, using the C9200-STACK-KIT with STACK-T4 cables, up to 8 members. It stacks only with other C9200 modular SKUs at the same licence level, and 32-VN PB SKUs stack only with other PB SKUs. It cannot stack with C9200L or C9200CX.

Q: How does the PB variant differ from the standard C9200-48P-A?
A: The enhanced VRF PB variant supports 32 virtual networks for SD-Access, while standard C9200 SKUs support 4.
