Cisco

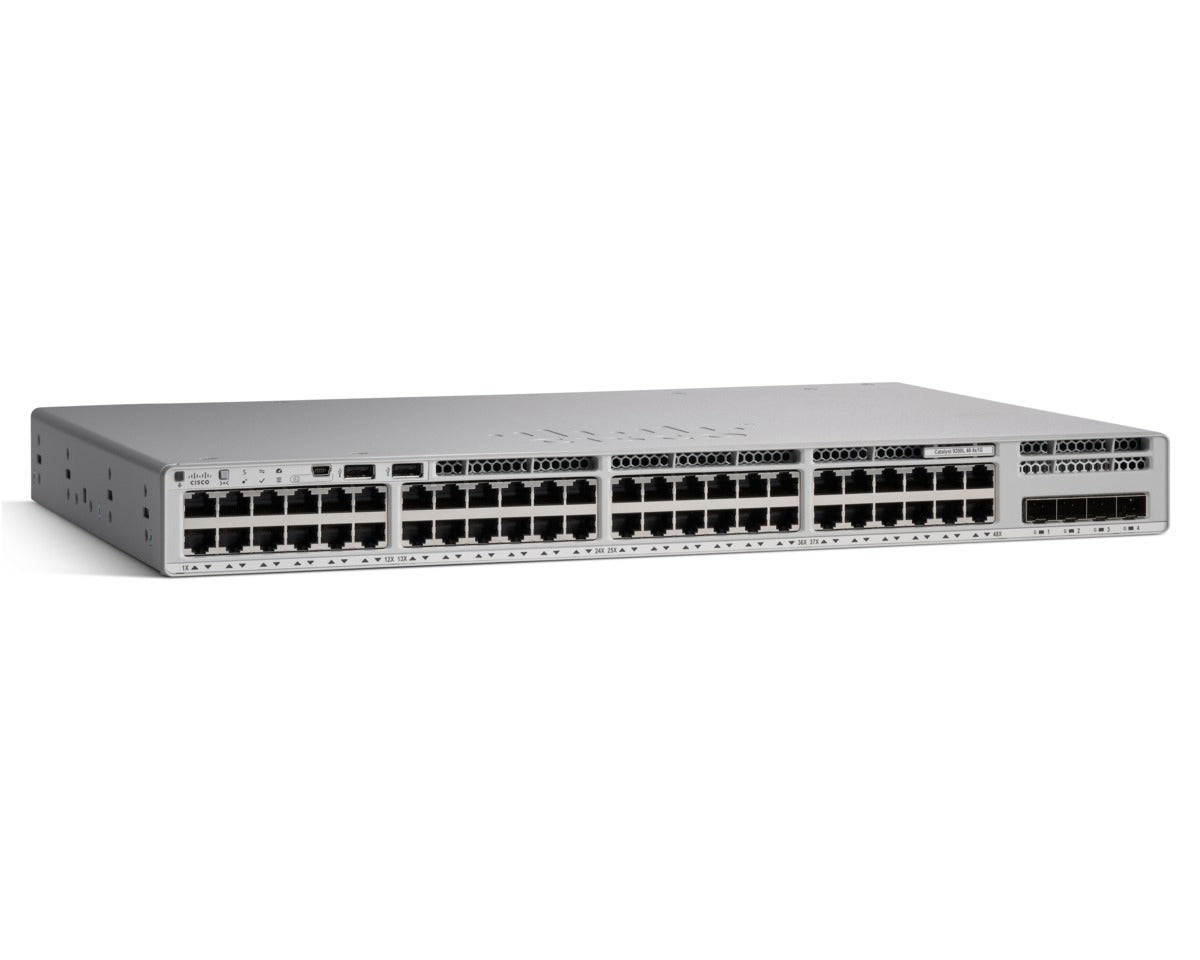

Cisco C9200-48P-E | Catalyst 9200 48-Port PoE+ Switch, 740W, Network Essentials

C9200-48P-E-USED

$2,695.00 inc. GST
$2,450.00 ex. GST
Sale Sold out
Shipping calculated at checkout.

8 in stock

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 C9200-48P-E is a modular-uplink, stackable 48-port Gigabit Ethernet access switch with full PoE+ on every port. It suits branch office and campus access deployments that need to power IP phones, Wi-Fi access points and IoT devices, with redundancy through field-replaceable power supplies and fans.

The 48 x 10/100/1000 downlink ports all deliver PoE+, with 740W of PoE available from a single 1000W AC supply and up to 1440W when a second supply is fitted. Switching capacity is 176 Gbps (336 Gbps with stacking) and forwarding rate is 130.95 Mpps (250 Mpps with stacking). StackWise-160 provides 160 Gbps of stacking bandwidth with up to 8 members per stack. Uplinks are modular, so the switch can be fitted with 4x 1G or 4x 1G/10G network modules to suit the network.

The -E suffix denotes the Network Essentials perpetual licence, covering foundational Layer 2 and Layer 3 switching, automation, visibility and security features. It can be paired with a Cisco DNA Essentials term subscription and upgraded to Network Advantage when required. Stack members must run the same licence level.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ (IEEE 802.3at, up to 30W per port) on all 48 ports, with Perpetual PoE and Fast PoE
- Field-replaceable redundant power supplies, fans and modular uplink network modules
- StackWise-160 backplane stacking with up to 8 members per stack
- Layer 3 routing including OSPF, EIGRP, IS-IS, RIP and routed access
- AES-128 MACsec encryption, policy-based segmentation and Cisco Trust Anchor secure boot
- Cisco IOS XE with NETCONF/RESTCONF, streaming telemetry and Plug and Play
- SD-Access capable, managed via CLI, Cisco Catalyst Center or Meraki cloud monitoring
- Energy Efficient Ethernet and per-port power and PoE power sensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 48 x 10/100/1000 with full PoE+
- Uplinks: modular, C9200-NM-4G, C9200-NM-4X or C9200-NM-BLANK
- Default power supply: PWR-C6-1KWAC (1000W AC)
- PoE budget: 740W with one power supply, 1440W with two
- Switching capacity: 176 Gbps (336 Gbps with stacking)
- Forwarding rate: 130.95 Mpps (250 Mpps with stacking)
- Stacking: StackWise-160, 160 Gbps, up to 8 members
- Fans: field-replaceable, redundant
- DRAM: 4 GB
- Flash: 4 GB
- Packet buffer: 6 MB
- MAC addresses: 32,000
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.5 kg
- Power input: 100 to 240 VAC, 50 to 60 Hz
- Operating temperature: -5 to 45 C up to 1500 m
- Humidity: 5% to 90% non-condensing
- Management ports: RJ-45 or mini USB console, RJ-45 Ethernet management

FAQs

Q: Which licence does the C9200-48P-E include?
A: The -E suffix denotes the Network Essentials perpetual licence. It can be paired with a Cisco DNA Essentials term subscription and upgraded to Network Advantage using a C9200-48-E-A upgrade licence. Smart Licensing is used.

Q: What PoE budget does the switch provide?
A: The PoE budget is 740W with a single PWR-C6-1KWAC power supply and up to 1440W with a second identical supply fitted. The PWR-C6-715WDC DC supply is also supported.

Q: Which uplink modules can be used?
A: The modular uplink slot supports the C9200-NM-4G (4x 1G), C9200-NM-4X (4x 1G/10G) and C9200-NM-BLANK modules.

Q: Can it be stacked with other Catalyst switches?
A: It stacks with other modular Catalyst 9200 models only, at the same licence level, using the C9200-STACK-KIT and STACK-T4 cables. Mixing with C9200L, C9200CX or other Catalyst families is not supported.

Q: How does it differ from the C9200-48P-A?
A: The C9200-48P-E carries the Network Essentials licence, while the -A variant carries Network Advantage. The hardware is the same 48-port PoE+ platform.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
