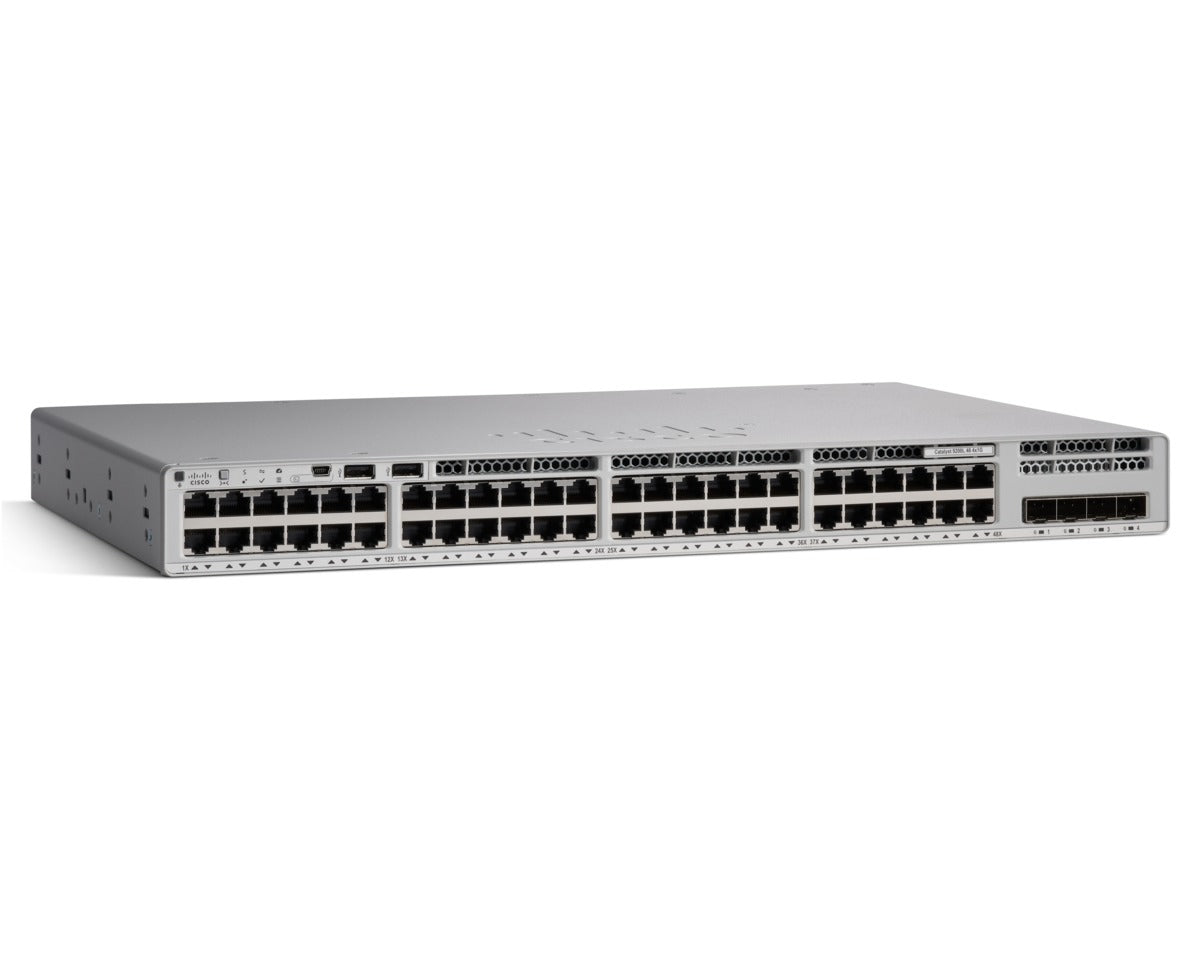

Cisco C9200-48P-A | Catalyst 9200 48-Port Gigabit PoE+ Switch, 740W, Network Advantage

C9200-48P-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200-48P-A is a versatile 48-port Gigabit PoE+ access switch designed for enterprise campus and branch deployments. It delivers 740W PoE power budget (expandable to 1440W with optional secondary power supply) to support IP phones, wireless access points, and IoT devices. With modular uplink options and 160 Gbps StackWise-160 stacking capability, the switch provides flexible scalability. The included Network Advantage license unlocks advanced Layer 3 routing protocols including OSPF, EIGRP, and BGP, along with MACsec encryption and policy-based segmentation for enhanced security.

Features

Cisco IOS XE operating system with intent-based networking automation
- Advanced Layer 3 routing protocols: OSPF, EIGRP, BGP, PIM, VXLAN (with Network Advantage license)
- MACsec encryption (AES-128/256) for wire-rate, hop-by-hop data confidentiality
- Cisco TrustSec and Software-Defined Access (SD-Access) support for policy-based segmentation
- StackWise-160 technology for flexible stacking up to 8 switches with single management plane
- Field-replaceable units (FRU): dual power supplies, dual fans, and modular uplink modules
- Energy Efficient Ethernet (IEEE 802.3az) with per-port power management
- Full Flexible NetFlow (FNF) for advanced traffic visibility and monitoring
- Comprehensive QoS with configurable queuing, marking, and policing
- IEEE 802.1X network admission control and identity-based access policies
- Cisco DNA Center integration for automated provisioning, monitoring, and troubleshooting
- Plug and Play (PnP) for zero-touch deployment and simplified branch rollouts
- Dual IPv4/IPv6 stack with full routing and multicast support
- Jumbo frame support up to 9,198 bytes
- Blue beacon LEDs (front and rear) for easy physical device identification
- Secure boot and runtime defenses with Cisco Trust Anchor technologies
- Cloud monitoring support via Meraki dashboard (Catalyst Cloud option)
- Access Control Lists (ACLs): 1,600 configurable entries for granular traffic filtering

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Port Configuration: 48x 10/100/1000 Mbps RJ-45 PoE+ ports
- Uplinks: Modular uplink options (module sold separately) - supports C9200-NM-4G (4x 1G SFP), C9200-NM-4X (4x 1G/10G SFP+), C9200-NM-2Y (2x 25G), or C9200-NM-2Q (2x 40G)
- PoE Power Budget: 740W with single power supply (PWR-C6-1KWAC included); expandable to 1440W with optional secondary power supply
- PoE Standard: IEEE 802.3at (PoE+) - up to 30W per port
- Switching Capacity: 176 Gbps
- Forwarding Rate: 130.95 Mpps (million packets per second)
- Stacking: StackWise-160 with 160 Gbps stacking bandwidth (up to 8 switches via optional C9200-STACK-KIT)
- Memory: 4 GB DRAM, 4 GB Flash
- MAC Address Table: 32,000 entries
- VLAN Support: 4,096 VLAN IDs; 1,000 Switched Virtual Interfaces (SVIs)
- Routing: 14,000 IPv4 routes (10,000 direct + 4,000 indirect); 2,000 IPv6 routing entries
- Packet Buffer: 6 MB
- Flexible NetFlow Entries: 16,000 flows
- Management: Cisco IOS XE, Cisco DNA Center, CLI, Web UI, SNMP
- Redundancy: Dual field-replaceable power supplies, dual field-replaceable fans
- Dimensions (H x W x D): 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm)
- Operating Temperature: -5°C to +45°C (up to 5,000 ft); -5°C to +40°C (up to 10,000 ft)
- Software License: Cisco IOS XE with perpetual Network Advantage license
- Security: MACsec AES-128/256 encryption, TrustSec, IEEE 802.1X, Secure Boot

FAQs

Q: What uplink modules are compatible with the C9200-48P-A?
A: The switch supports several modular uplink options sold separately: C9200-NM-4G (4x 1G SFP), C9200-NM-4X (4x 1G/10G SFP+), C9200-NM-2Y (2x 25G), and C9200-NM-2Q (2x 40G). The uplink module must be purchased separately as it is not included with the base switch.

Q: Can I increase the PoE power budget beyond 740W?
A: Yes. By installing a second 1000W AC power supply (PWR-C6-1KWAC or PWR-C5-1KWAC), you can increase the total PoE power budget to 1440W, enabling full PoE+ power delivery to all 48 ports simultaneously. The switch has dual power supply slots for redundancy and increased PoE capacity.

Q: What is the difference between Network Advantage and Network Essentials licensing?
A: Network Advantage (included with the C9200-48P-A) provides advanced Layer 3 routing protocols such as OSPF, EIGRP, BGP, and VXLAN, along with SD-Access support for up to 4 virtual networks, MACsec encryption, and advanced security features. Network Essentials offers basic Layer 2 and limited Layer 3 static routing capabilities. The license is perpetual and included with the switch purchase.

Q: Can the C9200-48P-A be stacked with other Catalyst 9200 models?
A: The C9200-48P-A supports StackWise-160 stacking up to 8 switches with 160 Gbps stacking bandwidth using the optional C9200-STACK-KIT. However, it cannot be stacked with C9200L fixed models, C9200CX compact models, or other Catalyst switch series such as the 2960-X or 3850. Only C9200 modular models with the same virtual network count can be stacked together.

Q: What types of devices can be powered using the PoE+ ports?
A: The 48 PoE+ ports can power a wide range of IEEE 802.3at compliant devices including IP phones, wireless access points (including Wi-Fi 6/6E), IP security cameras, IoT sensors, door access control systems, and building automation devices. Each port delivers up to 30W of power with intelligent per-port power allocation and sensing.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

Manual

This product has a detailed PDF manual available. Open PDF manual in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
