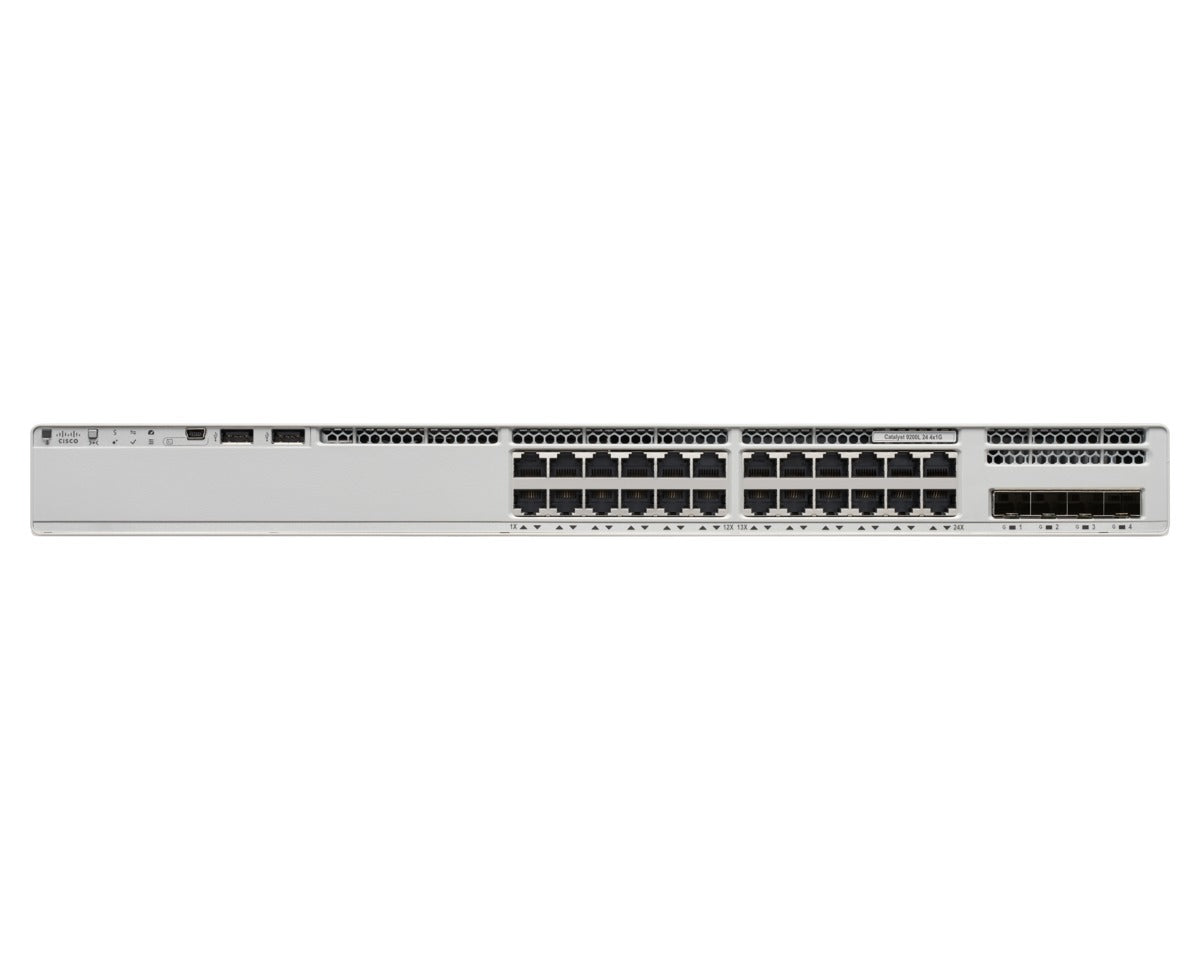

Cisco C9200-24T-E | Catalyst 9200 24-Port Gigabit Switch, 4x 1G/10G SFP+

C9200-24T-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco Catalyst C9200-24T-E is a modular enterprise access switch delivering 24 Gigabit Ethernet ports with flexible uplink options for branch and campus deployments. Powered by Cisco IOS XE and Network Essentials software, it provides Layer 3 routing, AES-128 MACsec encryption, and StackWise-160 stacking for scalable, secure network infrastructure. Field-replaceable fans and redundant power supplies ensure maximum uptime for mission-critical environments.

Features

Cisco IOS XE operating system with model-driven programmability and streaming telemetry
- Layer 3 enterprise routing: OSPF, EIGRP, IS-IS, RIP, static routing, PBR, PIM multicast
- Advanced security: AES-128 MACsec encryption, TrustSec, policy-based segmentation, Trustworthy Solutions
- Flexible NetFlow (FNF) with 16,000 entries for traffic monitoring and analytics
- StackWise-160 backplane stacking supporting up to 8 switches, 160 Gbps bandwidth
- Resiliency: Field-Replaceable Units (FRU) including redundant power supplies, fans, and modular uplinks
- Energy-efficient: IEEE 802.3az Energy Efficient Ethernet compliant
- Advanced QoS with configurable ACL, QoS, and Layer 2/Layer 3 forwarding templates via programmable UADP 2.0 Mini ASIC
- Cisco StackPower and redundant external power system (XPS) support for increased availability
- Jumbo frame support for optimized throughput
- Cisco Plug and Play (PnP) for zero-touch provisioning and automated deployment
- Comprehensive management via CLI, Web UI, SNMP, Cisco DNA Center, and Cisco Catalyst Center
- Support for up to 25 Access Tunnels for SD-Access fabric-enabled wireless APs

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

24x 10/100/1000 Mbps RJ-45 Ethernet ports (non-PoE)
- Modular uplink slot supporting 1G/10G network modules (4x SFP, 4x SFP+, or blank)
- Switching capacity: 128 Gbps standalone (288 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (190.4 Mpps specifications also cited)
- StackWise-160 stacking technology, 160 Gbps stacking bandwidth
- Memory: 4 GB DRAM, 4 GB Flash
- MAC address table: 32,000 entries
- Routing table: 14,000 IPv4 routes (10,000 direct + 4,000 indirect), 4,000 IPv4 routing entries, 2,000 IPv6 routing entries
- VLAN support: 4,096 VLAN IDs, 1,000 Switched Virtual Interfaces (SVIs), 4 virtual networks
- Packet buffer: 6 MB
- Power supply: PWR-C6-125WAC (125W AC, field-replaceable)
- Redundant power supply and fan modules (field-replaceable units)
- Dimensions: 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm), Weight: 5.0 kg
- Operating temperature: -5°C to +45°C (up to 1500m), -5°C to +40°C (up to 3000m)
- MTBF: 587,800 hours
- Management: CLI, Web GUI, Cisco DNA Center, SNMP, Telnet, SSH, Cisco Catalyst Center
- Console ports: RJ-45, USB-C, USB

FAQs

Q: What uplink modules are compatible with the C9200-24T-E?
A: The C9200-24T-E has one modular slot supporting C9200-NM-4G (4x 1G SFP), C9200-NM-4X (4x 1G/10G SFP+), or C9200-NM-BLANK. Uplink modules are sold separately and provide investment protection for future bandwidth upgrades from 1G to 10G without replacing the switch.

Q: Can the C9200-24T-E be stacked with other Catalyst switches?
A: Yes, the C9200-24T-E supports StackWise-160 stacking using the C9200-STACK-KIT (sold separately), providing 160 Gbps stacking bandwidth. It can only stack with other C9200 modular models (not C9200L fixed models or older Catalyst series like 2960-X). Up to 8 switches can be stacked as a single virtual switch.

Q: Does this switch support Power over Ethernet (PoE)?
A: No, the C9200-24T-E is a data-only model with no PoE capability. It is ideal for cost-efficient deployments connecting PCs, printers, servers, and other devices with independent power sources. For PoE requirements, consider the C9200-24P-E (PoE+) model.

Q: What routing protocols are supported with Network Essentials license?
A: Network Essentials includes Layer 3 routing capabilities such as static routing, RIP, RIPv2, RIPng, OSPF, OSPFv3, EIGRP, EIGRP for IPv6, IS-IS, PIM-SM, PIM-SSM, VRRP, and policy-based routing (PBR). It also supports advanced QoS, MACsec encryption, and full Flexible NetFlow.

Q: Is the C9200-24T-E compatible with Cisco DNA Center?
A: Yes, the C9200-24T-E runs Cisco IOS XE and supports Cisco DNA Center for intent-based networking, automation, and assurance. It also supports Plug and Play (PnP) for zero-touch provisioning and can be monitored via Cisco Catalyst Center or Catalyst on Meraki dashboard.
