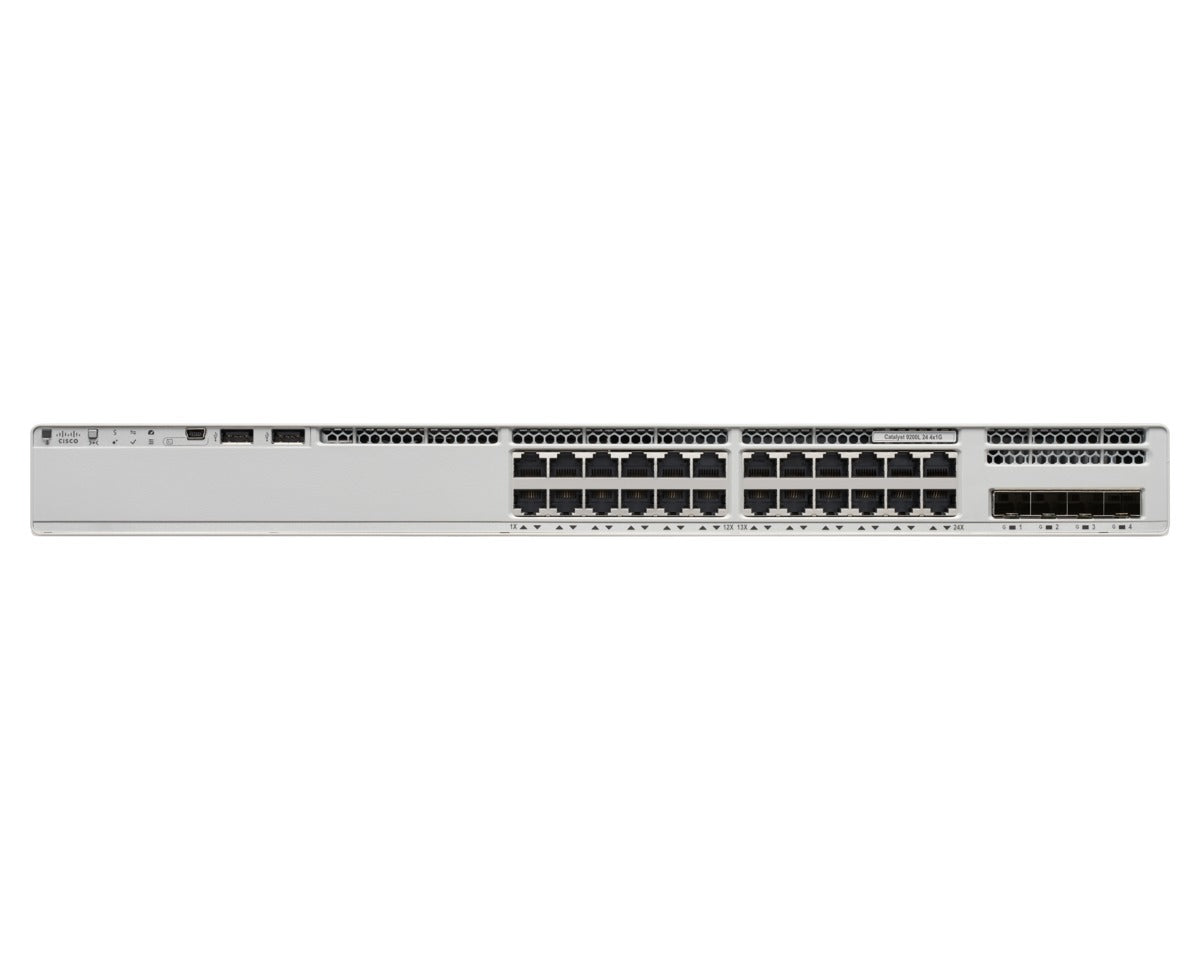

Cisco C9200-24T-A | Catalyst 9200 24-Port Gigabit Switch, Network Advantage

C9200-24T-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 C9200-24T-A is a fixed-configuration, stackable Layer 3 access switch with 24 data-only Gigabit Ethernet ports and a slot for a modular uplink. It suits cost-effective branch-office and small campus access-layer switching for wired data endpoints, with routed access and the ability to scale up to 384 access ports when stacked.

This SKU is the 24-port data-only model, so it provides no PoE budget, and it ships with the perpetual Network Advantage software tier. Switching capacity is 128 Gbps (288 Gbps with stacking) and forwarding rate is 95.23 Mpps (214 Mpps with stacking). StackWise-160 delivers up to 160 Gbps of stacking bandwidth across up to 8 members. The switch carries 4 GB DRAM and 4 GB flash, and the default power supply is the PWR-C6-125WAC with 100-240 VAC auto-ranging input.

Uplinks are provided by an optional network module, either the C9200-NM-4G (4x 1G) or the C9200-NM-4X (4x 1G/10G). Stacking uses the C9200-STACK-KIT with STACK-T4 cables and is supported with other modular C9200 SKUs at the same licence level. The chassis is 1RU and rack-mountable, with field-replaceable redundant fans.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Optional backplane stacking up to 160 Gbps with StackWise-160
- Modular uplinks for 1G and 10G connectivity
- Layer 3 capabilities including OSPF, EIGRP, IS-IS, RIP and routed access
- AES-128 MACsec encryption and policy-based segmentation
- Dual field-replaceable power supplies and redundant fans
- Management via CLI, Cisco Catalyst Center on-premises, or cloud monitoring
- UADP 2.0 Mini ASIC with integrated CPU and cold patching

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Model: C9200-24T-A, Catalyst 9200 24-port data switch, Network Advantage
- Downlink ports: 24 x 10/100/1000 data only (non-PoE)
- Uplink configuration: modular uplink options via network module
- Default power supply: PWR-C6-125WAC
- Fans: field-replaceable redundant (FAN-T2=)
- Switching capacity: 128 Gbps (288 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (214 Mpps with stacking)
- Stacking bandwidth: 160 Gbps StackWise-160, up to 8 members
- DRAM: 4 GB
- Flash: 4 GB
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- VLAN IDs: 4094
- ACL scale entries: 1,600
- Packet buffer: 6 MB
- Jumbo frames: 9198 bytes
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Weight: 5.0 kg
- MTBF: 587,800 hours
- Operating temperature: -5 to +45 C up to 1500 m
- Storage temperature: -40 to +70 C
- Relative humidity: 5% to 90% noncondensing
- AC input: 100-240 VAC auto-ranging

FAQs

Q: Which licence does the C9200-24T-A use?
A: It ships with the perpetual Network Advantage tier. A Cisco DNA Advantage subscription (3, 5 or 7 years) or a Cisco Networking Subscription (Switching Advantage) must be ordered with it, and the DNA tier must match the Network Advantage licence. It uses Cisco Smart Licensing and runs Cisco IOS XE 16.9.2 or later.

Q: Does this switch provide PoE?
A: No. The C9200-24T-A is a data-only model with no PoE budget. The default PWR-C6-125WAC supplies AC power to the switch itself, and a second identical hot-swappable power supply can be added for redundancy.

Q: Which uplink modules work with this switch?
A: The C9200-NM-4G (4x 1G) and C9200-NM-4X (4x 1G/10G) network modules are supported. The C9200-NM-2Y and C9200-NM-2Q modules are PXG-only and are not supported on this model.

Q: Can it be stacked with other Catalyst switches?
A: Yes, using the C9200-STACK-KIT with STACK-T4-50CM, 1M or 3M cables, for up to 8 members. Stacking is only supported with other modular C9200 SKUs at the same licence level, and cannot be mixed with C9200L or other Catalyst families.

Q: How does it differ from the C9200-24T-E?
A: The -A suffix means this SKU carries the Network Advantage software tier, while the -E variant carries Network Essentials. Both share the same 24-port data-only hardware.
