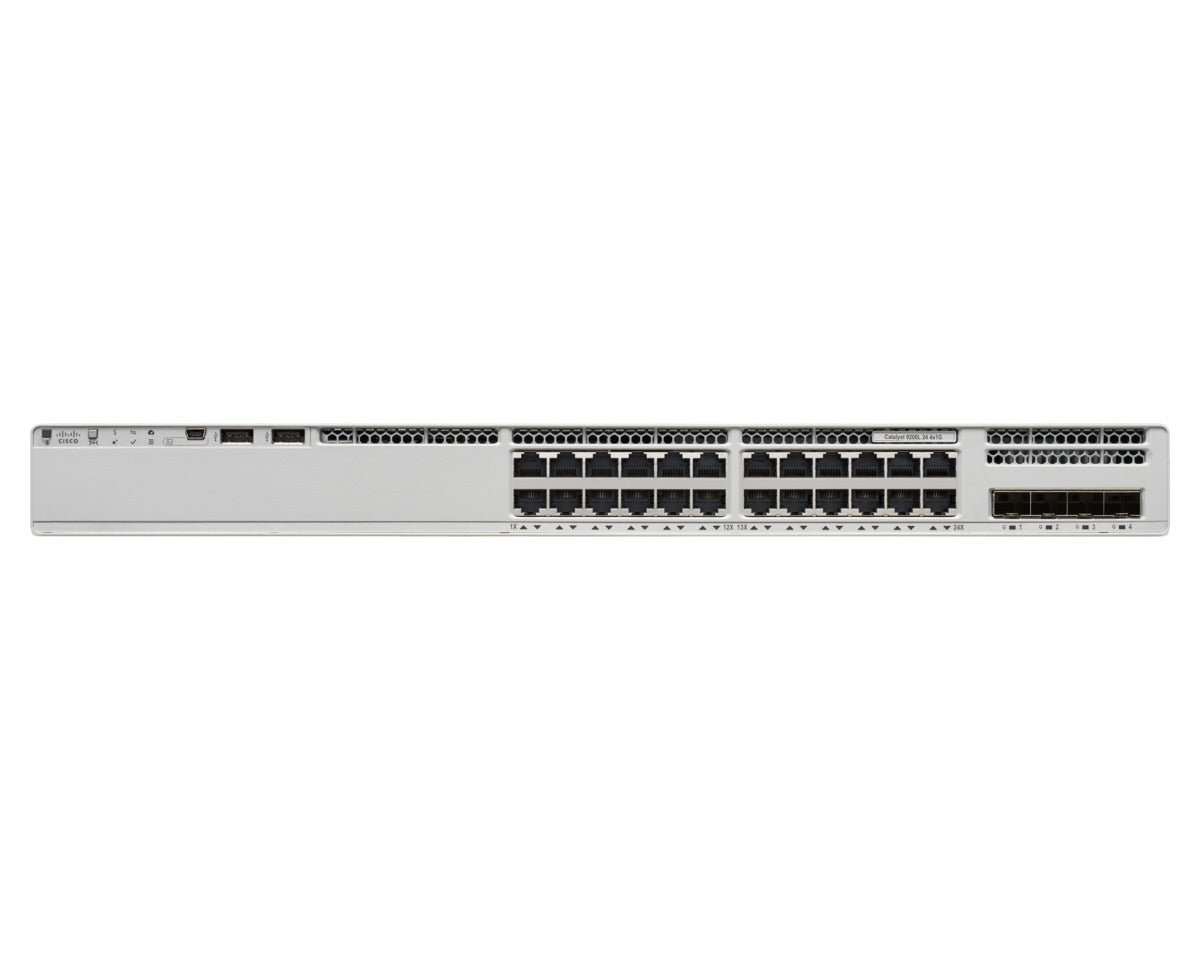

Cisco C9200-24PXG-E | Catalyst 9200 24-Port PoE+ Switch, 8x mGig, 370W, Modular Uplinks

C9200-24PXG-E

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200-24PXG-E Catalyst 9200 is a Layer 3 managed switch designed for enterprise campus and branch deployments. It features 16 Gigabit PoE+ ports, 8 Multigigabit ports supporting speeds up to 10G, and modular uplink options for flexible connectivity. With 370W PoE budget expandable to 740W with dual power supplies, it powers high-density wireless access points, IP phones, and security cameras while delivering advanced security with MACsec encryption and comprehensive Layer 3 routing.

Features

Layer 3 enterprise routing with OSPF, EIGRP, ISIS, RIP, and static routing
- Full PoE+ (IEEE 802.3at) on all 24 ports, up to 30W per port
- 8x Multigigabit ports support 100M/1G/2.5G/5G/10G speeds for Wi-Fi 6/6E APs
- Modular uplink slot for flexible 1G/10G/25G/40G connectivity
- StackWise-80 technology for stacking up to 8 switches as single logical unit
- AES-128 MACsec encryption for Layer 2 security
- Cisco TrustSec and IEEE 802.1X for identity-based access control
- Energy Efficient Ethernet (IEEE 802.3az) for reduced power consumption
- Flexible NetFlow (FNF) for traffic visibility and analysis
- Advanced QoS with 8 hardware queues per port
- Redundant field-replaceable power supplies and fans
- Cisco DNA Center integration for automation and analytics
- Plug and Play (PnP) for zero-touch provisioning
- SNMP, NETCONF, RESTCONF, and CLI management
- Hot Standby Router Protocol (HSRP) and Virtual Router Redundancy Protocol (VRRP)
- IP multicast with PIM-SM, PIM-SSM, and MSDP
- VXLAN routing and LISP support for SD-Access fabric deployments
- Embedded Event Manager (EEM) for network automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 24x PoE+ ports (16x 10/100/1000 + 8x 100M/1G/2.5G/5G/10G Multigigabit)
- Modular Uplink Options: 1x network module slot supporting 4x 1G/10G SFP+, 2x 25G SFP28, or 2x 40G QSFP+
- PoE Budget: 370W with single PSU (PWR-C6-600WAC), expandable to 740W with optional redundant PSU
- Switching Capacity: 272 Gbps standalone, 352 Gbps with stacking
- Forwarding Rate: 214.28 Mpps
- Memory: 4 GB DRAM, 4 GB Flash
- Stacking: StackWise-80 technology, 80 Gbps stacking bandwidth (optional C9200-STACK-KIT required)
- Layer 3 Features: OSPF, EIGRP, ISIS, RIP, static routing, 11,000 IPv4 routes, 512 SVIs
- MAC Address Table: 16,000 entries
- VLANs: 1,024 supported
- Security: AES-128 MACsec encryption, IEEE 802.1X, TrustSec, Flexible NetFlow
- Management: Cisco DNA Center, CLI, web GUI, SNMP, NETCONF, RESTCONF
- Power Supply: Dual redundant FRU power supplies (one included, second optional)
- Dimensions: 1.73 x 17.5 x 13.8 inches (H x W x D)
- Operating Temperature: -5°C to 45°C (up to 5,000 ft)

FAQs

Q: What is the difference between the 16 Gigabit ports and 8 Multigigabit ports?
A: The 16 ports support standard 10/100/1000 Mbps speeds with PoE+, while the 8 Multigigabit (mGig) ports support 100M/1G/2.5G/5G/10G speeds, ideal for Wi-Fi 6/6E access points over existing Cat5e/6 cabling. All 24 ports support full PoE+.

Q: How much PoE power can this switch deliver?
A: The C9200-24PXG-E delivers 370W PoE+ budget with the included PWR-C6-600WAC power supply. Adding an optional second identical PSU increases the total PoE budget to 740W, enabling full 30W PoE+ on all 24 ports simultaneously.

Q: What uplink modules are compatible with this switch?
A: The modular uplink slot supports C9200-NM-4X (4x 1G/10G SFP+), C9200-NM-2Y (2x 25G SFP28), C9200-NM-4G (4x 1G SFP), and C9200-NM-2Q (2x 40G QSFP+). Modules are sold separately and can be field-replaced for future upgrades.

Q: Can this switch be stacked with other Catalyst 9200 models?
A: Yes, it supports StackWise-80 stacking up to 8 units with 80 Gbps bandwidth using the optional C9200-STACK-KIT. However, C9200 modular models cannot be stacked with C9200L fixed models or other Catalyst switch series.

Q: What Layer 3 capabilities does the Network Essentials license provide?
A: Network Essentials includes static routing, RIP, OSPF, EIGRP, ISIS, HSRP, VRRP, policy-based routing, and supports up to 11,000 IPv4 routes and 512 SVIs. It provides essential routing for network segmentation and inter-VLAN routing in branch and campus networks.
