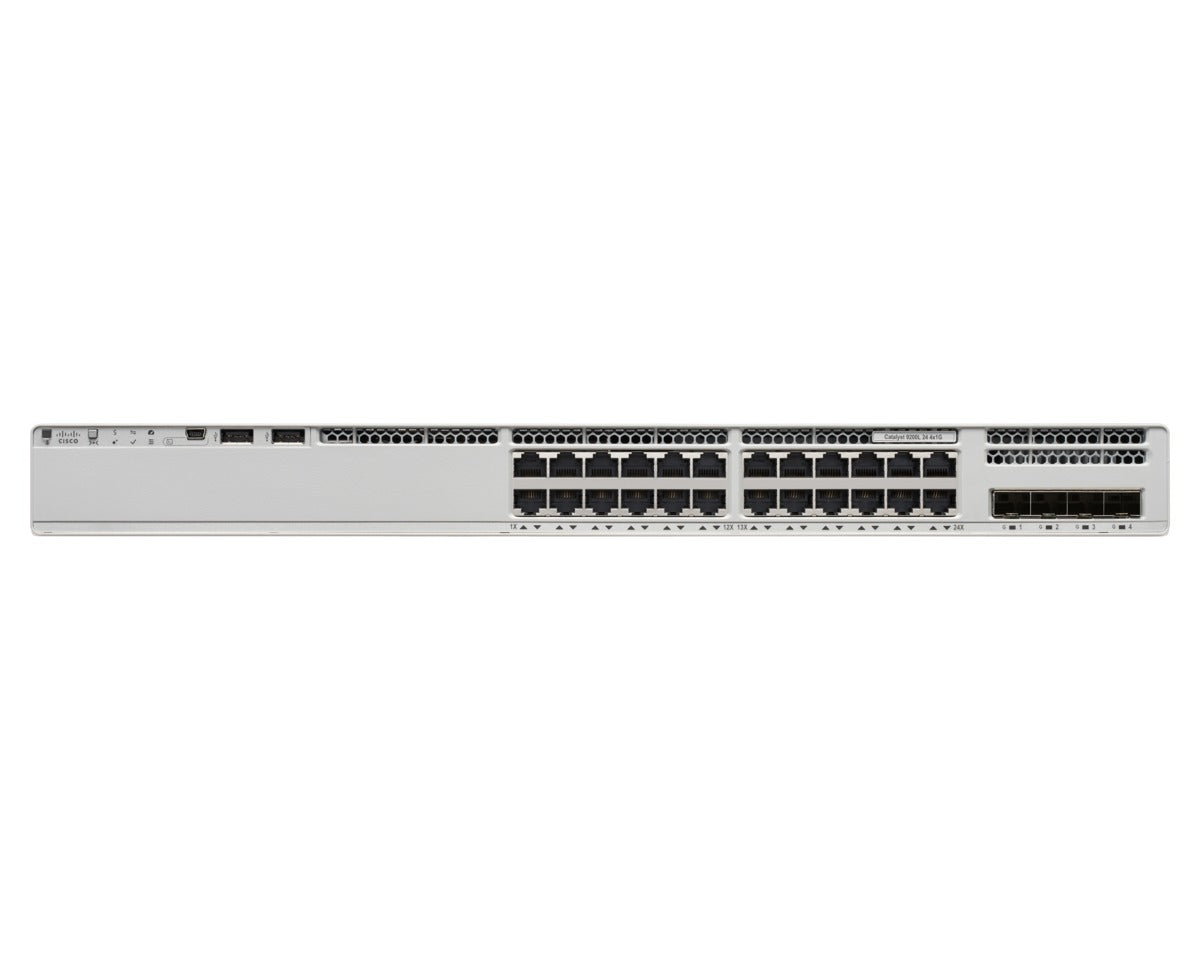

• Cisco C9200-24PXG-A switch with 16x 1G PoE+ ports and mGig uplinks
1 1

Cisco

Cisco C9200-24PXG-A | Catalyst 9200 24-Port PoE+ Switch, 370W, 8x mGig, Modular Uplinks

C9200-24PXG-A

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200-24PXG-A is a stackable enterprise access switch designed for high-density branch and campus networks. It delivers 24 ports of full PoE+ power (370W expandable to 740W), with 8 multigigabit ports supporting speeds up to 10G for Wi-Fi 6/6E access points and 16 Gigabit Ethernet ports. With modular uplink flexibility, StackWise-160 support, Layer 3 routing, and Network Advantage licensing, it provides the performance, resiliency, and automation needed for modern intent-based networks.

Features

Full PoE+ capability on all 24 ports (IEEE 802.3af/at, 30W per port)
- 8 multigigabit ports supporting 100M/1G/2.5G/5G/10G auto-negotiation for Wi-Fi 6/6E APs
- Modular uplink slots supporting field-replaceable 1G/10G/25G/40G network modules
- StackWise-160 technology supporting up to 8 switches with 160 Gbps stacking bandwidth
- Layer 3 routing with OSPF, EIGRP, ISIS, RIP, static routing, PBR, HSRP/VRRP
- Advanced security with MACsec AES-128 encryption, TrustSec segmentation, IEEE 802.1X, and Flexible NetFlow
- Cisco IOS XE operating system with model-driven programmability and streaming telemetry
- Cisco Catalyst Center (DNA Center) automation with policy-based segmentation and network assurance
- Plug and Play (PnP) zero-touch provisioning for simplified deployment
- Dual hot-swappable field-replaceable power supplies for redundancy
- FRU redundant cooling fans for high availability
- Energy Efficient Ethernet (IEEE 802.3az) and per-port power management
- Blue Beacon LED for device identification and passive RFID for inventory management
- Quality of Service (QoS) with hardware-based queuing and policing
- Cisco UADP 2.0 mini ASIC for optimized table scale and buffering
- Management flexibility via CLI, Web UI, Catalyst Center, SNMP, Netconf/YANG, RESTCONF

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

Total Ports: 24 (8x 100M/1G/2.5G/5G/10G multigigabit + 16x 10/100/1000 Gigabit Ethernet)
- PoE Standard: IEEE 802.3af/at (PoE+) on all 24 ports, 30W per port
- PoE Budget: 370W with single PSU (PWR-C6-600WAC), expandable to 740W with optional secondary PSU
- Uplinks: Modular (supports optional C9200-NM-4X 4x10G SFP+, C9200-NM-2Y 2x25G SFP28, or C9200-NM-2Q 2x40G QSFP+ modules sold separately)
- Switching Capacity: 352 Gbps
- Forwarding Rate: 261.90 Mpps (wire-speed Layer 2/3)
- Stacking: StackWise-160 technology, up to 160 Gbps stacking bandwidth, supports up to 8 switches
- Memory: 4 GB DRAM, 4 GB Flash
- MAC Address Table: 32,000 entries
- VLAN Support: 4,096 active VLANs
- IPv4 Routing: 16,000 routes (Layer 3 routing with OSPF, EIGRP, ISIS, RIP, static routing)
- Management: CLI, Web GUI, Cisco Catalyst Center (DNA Center), SNMP v1/v2c/v3, RMON, Netconf/YANG, RESTCONF
- Security: MACsec AES-128 encryption, TrustSec, Flexible NetFlow, IEEE 802.1X authentication, ACL scale 1,500 entries
- Power Supply: Dual hot-swappable FRU power supplies (ships with 1x PWR-C6-600WAC), AC 100-240V, 50/60Hz
- Cooling: FRU redundant fans (field-replaceable)
- Dimensions (H x W x D): 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) - 1RU
- Operating Temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft
- Software: Cisco IOS XE with Network Advantage license
- Console Ports: 1x RJ-45, 1x USB-C, 1x USB Type-A

FAQs

Q: What network modules are compatible with the C9200-24PXG-A?
A: The C9200-24PXG-A supports field-replaceable network modules including C9200-NM-4X (4x 10G SFP+), C9200-NM-4G (4x 1G SFP), C9200-NM-2Y (2x 25G SFP28), and C9200-NM-2Q (2x 40G QSFP+). Network modules are sold separately and allow non-disruptive migration from 1G to 10G, 25G, or 40G uplinks.

Q: What is the difference between the 8 mGig ports and the 16 standard Gigabit ports?
A: The 8 multigigabit (mGig) ports support auto-negotiation at 100M/1G/2.5G/5G/10G speeds, making them ideal for connecting Wi-Fi 6/6E access points and high-bandwidth devices. The remaining 16 ports are standard 10/100/1000 Gigabit Ethernet ports. All 24 ports support full PoE+ (802.3at) at 30W per port.

Q: Can the C9200-24PXG-A be stacked with other Catalyst 9200 models?
A: Yes, the C9200-24PXG-A supports StackWise-160 stacking up to 160 Gbps bandwidth. It can be stacked with other C9200 modular models (C9200-24T, C9200-24P, C9200-48P, etc.) using optional StackWise-160 kits. However, modular C9200 switches cannot be stacked with fixed C9200L models or other Catalyst series switches.

Q: What Layer 3 routing protocols are supported with Network Advantage licensing?
A: Network Advantage licensing includes full Layer 3 routing capabilities such as OSPF, EIGRP, ISIS, RIP, static routing, policy-based routing (PBR), HSRP/VRRP, and routed access. It also supports advanced features like Flexible NetFlow, VXLAN routing, MACsec encryption, and Cisco TrustSec segmentation.

Q: How do I expand the PoE budget to 740W?
A: The C9200-24PXG-A ships with a single 600W power supply (PWR-C6-600WAC) providing 370W PoE budget. You can add a second identical PWR-C6-600WAC power supply to achieve 740W total PoE budget, enabling full 30W PoE+ power on all 24 ports simultaneously. The second PSU also provides 1+1 redundancy for high availability.
