Cisco

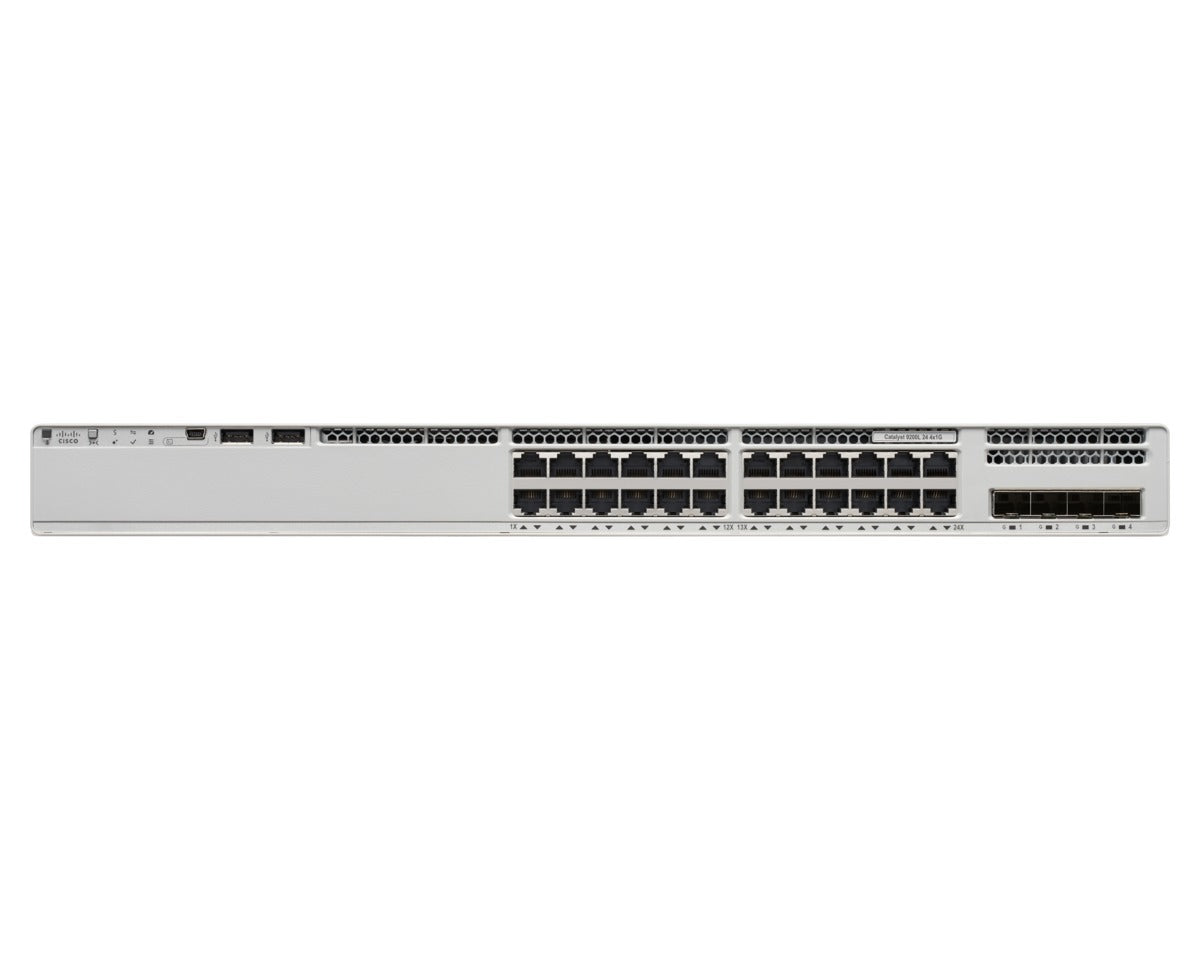

Cisco C9200-24PB-A | Catalyst 9200 24-Port PoE+ Switch, Network Advantage

C9200-24PB-A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 C9200-24PB-A is a stackable, modular-uplink Layer 3 access switch with 24 Gigabit Ethernet ports, all supporting full PoE+. It suits enterprise campus and branch access-layer deployments where IP phones, wireless access points and cameras need power and connectivity from one switch, and it is well suited to SD-Access and segmentation designs that need more virtual networks.

This PB variant supports 32 virtual networks with enhanced VRF, compared with 4 on the standard C9200 SKUs, and carries the Network Advantage software tier. The default PWR-C6-600WAC power supply provides a 370 W PoE budget, which rises to 740 W with a second supply. Switching capacity is 128 Gbps (288 Gbps with stacking), forwarding rate is 95.23 Mpps, and stacking bandwidth is 160 Gbps. Uplinks are provided by a modular network module.

It works with Catalyst 9200 modular uplink network modules, PWR-C6-600WAC and PWR-C6-715WDC power supplies, and the FAN-T2= fan module. It stacks with other C9200 modular SKUs, but the 32-VN PB models cannot be stacked with C9200 SKUs that support 4 VNs, and it does not stack with C9200L models.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular C9200 platform with field-replaceable power supplies (FRU redundant) and fan module (FAN-T2=)
- Full PoE+ on all 24 ports, with a second power supply raising the PoE budget to 740 W
- Stackable with 160 Gbps stacking bandwidth
- 32 virtual networks for larger SD-Access and VRF-based segmentation than the standard C9200 SKUs
- Runs Cisco IOS XE with the Network Advantage feature set
- Fast PoE support, so powered devices can start before the OS has fully loaded

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 Gigabit Ethernet, full PoE+
- Uplinks: Modular uplink options (network module)
- Default primary power supply: PWR-C6-600WAC
- Power supply redundancy: FRU redundant
- Available PoE power, single PWR-C6-600WAC: 370 W
- Available PoE power with second PWR-C6-600WAC: 740 W
- Available PoE power with PWR-C6-715WDC primary: 485 W
- Available PoE power with PWR-C6-715WDC secondary: 740 W
- Switching capacity: 128 Gbps (288 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (214 Mpps with stacking)
- Stacking bandwidth: 160 Gbps
- Virtual networks: 32
- Total MAC addresses: 32,000
- Total IPv4 routes: 14,000 (10,000 direct and 4,000 indirect)
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- Multicast routing scale: 1,000
- QoS scale entries: 1,000
- ACL scale entries: 1,600
- Packet buffer: 6 MB
- Flexible NetFlow entries: 16,000 flows
- DRAM: 4 GB
- Flash: 4 GB
- VLAN IDs: 4094
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm

FAQs

Q: Which software tier does the C9200-24PB-A include?
A: The -A suffix indicates the Network Advantage software tier, which is higher than Network Essentials. Cisco DNA subscription licensing applies, and the matching DNA Advantage term licence is sold separately.

Q: How much PoE power does it provide?
A: With the default PWR-C6-600WAC power supply the PoE budget is 370 W. Adding a second PWR-C6-600WAC raises it to 740 W. With the PWR-C6-715WDC DC supply as primary, the budget is 485 W, or 740 W with a second supply.

Q: What is the difference between this PB model and the standard C9200-24P?
A: The PB SKUs support 32 virtual networks (enhanced VRF), while the standard C9200 SKUs support 4. Because of this, the PB models cannot be stacked with C9200 SKUs that support 4 VNs.

Q: What does it work with for uplinks, power and stacking?
A: It takes Catalyst 9200 modular uplink network modules, PWR-C6-600WAC and PWR-C6-715WDC power supplies, and the FAN-T2= fan module. It stacks with other C9200 modular SKUs but not with C9200L models.

Q: Are the uplink ports built in?
A: No. This model uses modular uplinks, so you choose a Catalyst 9200 uplink network module to suit your fibre or copper uplink requirements.
