Cisco

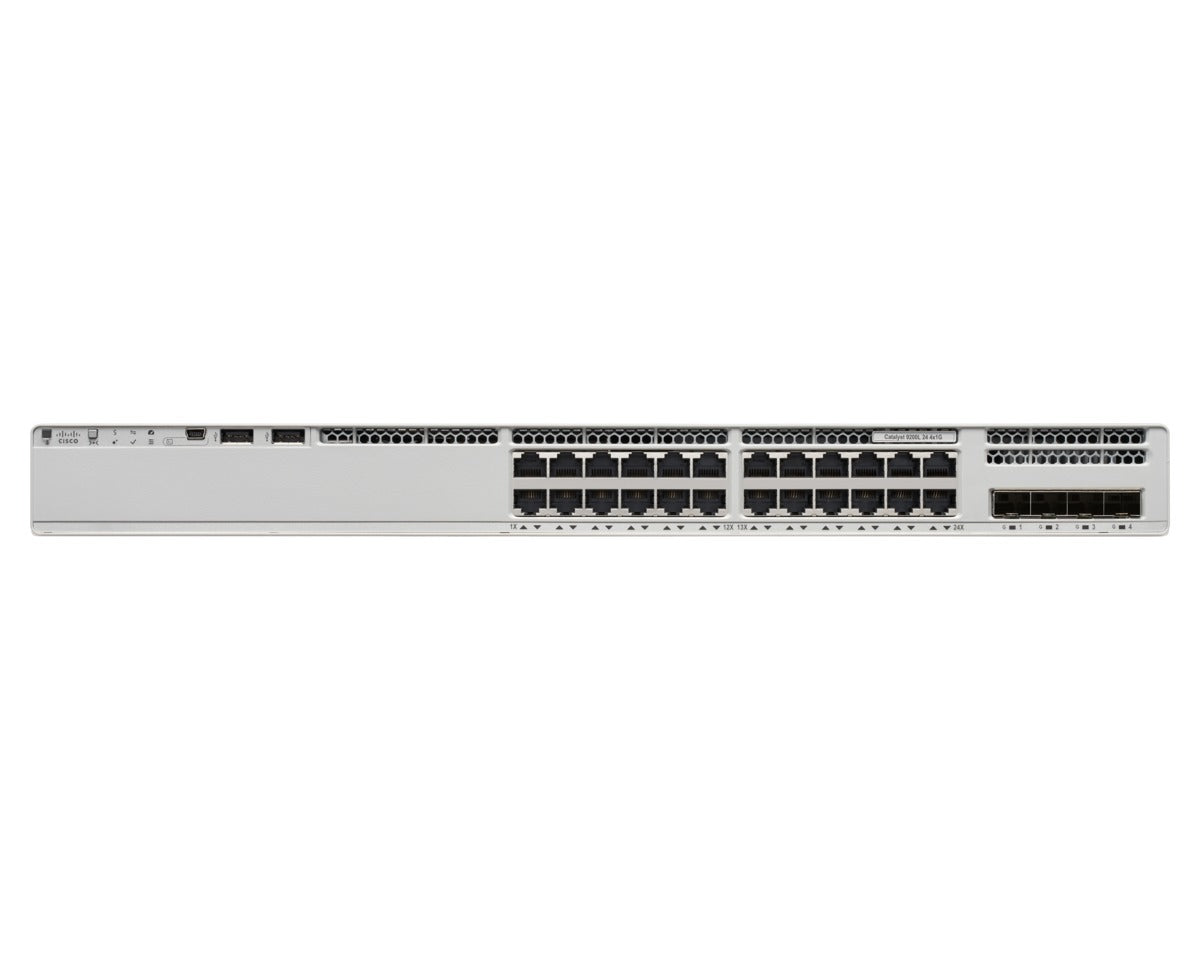

Cisco C9200-24P-E | Catalyst 9200 24-Port PoE+ Switch, 370W, Network Essentials

C9200-24P-E-USED

$2,225.00 inc. GST
$2,022.73 ex. GST
Sale Sold out
Shipping calculated at checkout.

1 in stock

Condition
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9200 C9200-24P-E is a 24-port Gigabit Ethernet access switch with PoE+ on every downlink port. It is aimed at cost-effective branch-office and campus access, powering IP phones, cameras and Wi-Fi access points, and it can also serve as a fabric edge switch in Cisco Software-Defined Access deployments. It runs Cisco IOS XE on the UADP 2.0 Mini ASIC.

The 24 x 10/100/1000 downlink ports all support PoE+, backed by a 370W PoE budget. Uplinks are modular, so the network module is selected to suit the site. Switching capacity is 128 Gbps, or 288 Gbps when stacked, with a forwarding rate of 95.23 Mpps (214 Mpps stacked). Optional backplane stacking provides 160 Gbps of stacking bandwidth. Memory is 4 GB DRAM and 4 GB flash, and the MAC address table holds 32,000 entries. The -E suffix means the Network Essentials software tier.

The power supply and fans are field-replaceable, with a PWR-C6-600WAC as the default primary power supply and a redundant PSU option. Uplink network modules are sold separately, and stacking uses Catalyst 9200 stacking kits and cables. Models with 4 virtual networks, such as this one, cannot be stacked with the 32-VN C9200-24PB-A and C9200-48PB-A SKUs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full PoE+ on all 24 downlink ports
- Field-replaceable power supply, fans and modular uplinks
- Optional backplane stacking at up to 160 Gbps
- UADP 2.0 Mini ASIC with integrated CPU
- AES-128 MACsec encryption and policy-based segmentation
- Layer 3 support including OSPF, EIGRP, IS-IS, RIP and routed access
- Cisco Software-Defined Access (SD-Access) support
- Managed by CLI, Cisco Catalyst Center or the Meraki dashboard for cloud monitoring

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Manual

Technical Specifications

- Downlink ports: 24 x 10/100/1000 PoE+ (full PoE+)
- Uplinks: Modular, network module sold separately
- PoE budget: 370W
- Default primary power supply: PWR-C6-600WAC
- Switching capacity: 128 Gbps (288 Gbps with stacking)
- Forwarding rate: 95.23 Mpps (214 Mpps with stacking)
- Stacking bandwidth: 160 Gbps (optional)
- DRAM: 4 GB
- Flash: 4 GB
- MAC addresses: 32,000
- IPv4 routing entries: 4,000
- IPv6 routing entries: 2,000
- ACL scale entries: 1,600
- Packet buffer: 6 MB
- VLAN IDs: 4094
- Jumbo frames: 9198 bytes
- SD-Access virtual networks: 4
- Dimensions (H x W x D): 4.4 x 44.5 x 35.0 cm
- Software tier: Network Essentials

FAQs

Q: Which software licence tier does the C9200-24P-E include?
A: The -E suffix means the Network Essentials tier. The Network Advantage and DNA add-on tiers are separate SKUs.

Q: How much PoE power does it provide?
A: It provides a 370W PoE budget, with PoE+ available on all 24 downlink ports.

Q: Does it include uplink ports?
A: Uplinks are modular, so a network module is selected separately to suit your requirements.

Q: Can it be stacked?
A: Yes, optional backplane stacking up to 160 Gbps is supported using Catalyst 9200 stacking kits and cables. It cannot be stacked with the 32-VN C9200-24PB-A or C9200-48PB-A SKUs.

Q: Is the power supply replaceable?
A: Yes. The power supply and fans are field-replaceable, and the default primary power supply is the PWR-C6-600WAC, with a redundant PSU option.
