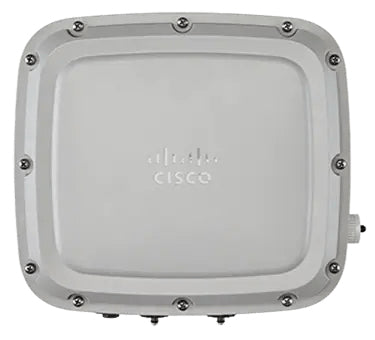

• Cisco C9124AXD-ROW Wi-Fi 6 outdoor AP with white gray design and mounting screws
1 1

Cisco

Cisco C9124AXD-ROW | Catalyst 9124AXD Wi-Fi 6 Outdoor Access Point, ROW

C9124AXD-ROW

Stock Status: Enquire

$4,988.01 inc. GST
$4,534.55 ex. GST
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 9124AXD is a rugged outdoor Wi-Fi 6 (802.11ax) access point with an internal directional antenna, designed for dual-band 2.4 GHz and 5 GHz deployments. It delivers up to 5.38 Gbps wireless transmission speed with 4x4:4 MU-MIMO, OFDMA and TWT, and is controller-based. This ROW regulatory-domain variant uses a multigigabit uplink and is powered over UPOE or 802.3bt inline power, suiting campus, industrial and high-density outdoor coverage.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Outdoor ruggedised design for diverse network deployments
- Internal directional antenna for focused coverage
- Beamforming and MRC
- WPA3 and WPA3-Enterprise 192 security support
- Uplink/downlink MU-MIMO and OFDMA for high-density environments
- Packet aggregation (A-MPDU/A-MSDU) and 802.11 DFS
- Part of the Catalyst 9100 family of access points

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz
- 4x4:4 MU-MIMO with four spatial streams on both 2.4 GHz and 5 GHz
- Uplink/downlink OFDMA and TWT
- Up to 5.38 Gbps wireless transmission speed
- Internal directional antenna (9124AXD)
- 1 x 100/1000/2500 BASE-T (multigigabit) Ethernet uplink
- 1 x Gigabit Ethernet SFP
- PoE output (802.3af PSE) on the 10/100/1000 BASE-T downlink interface, if powered adequately
- Powering options: UPOE switch or 802.3bt inline power source
- Bluetooth 5
- Encryption: WPA, WPA2, WPA3, WPA3-Enterprise 192, AES, TKIP
- Dimensions (without brackets): 25.9 x 23.3 x 8.1 cm
- Weight approx. 6.39 lb
- Operating temperature: -40 to 65 degrees C, 55 degrees C with solar loading
- ROW regulatory domain

FAQs

Q: What is the difference between the 9124AXD and other 9124AX models?
A: The 9124AXD uses an internal directional antenna, which focuses coverage in a specific direction. The ROW suffix indicates the Rest of World regulatory domain.

Q: How is the C9124AXD-ROW powered?
A: It can be powered by a UPOE switch or an 802.3bt inline power source, and it provides 802.3af PoE output on its downlink port when adequately powered.

Q: Does this access point work standalone or with a controller?
A: This is the controller-based variant. A separate -EWC variant exists for the embedded wireless controller.

Q: What uplink options does it provide?
A: It has one 100/1000/2500 BASE-T multigigabit Ethernet uplink and one Gigabit Ethernet SFP port.

Q: What operating temperature range does the 9124AXD support?
A: It operates from -40 to 65 degrees C, or up to 55 degrees C with solar loading.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
