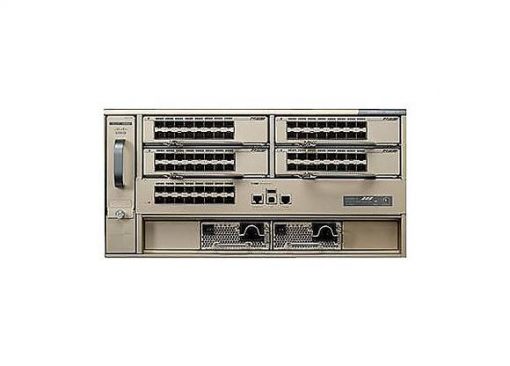

• Cisco 2960X switch with Ethernet ports and handle in C6880-X chassis
1 1

Cisco

Cisco C6880-X | Catalyst 6880-X Modular Core Switch, XL Tables

C6880-X

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 6880-X is an extensible fixed-aggregation switch chassis for small and midsize campus backbones, aggregation layers and core deployments that need premium 10G services, MPLS/VPLS and large routing tables. It brings the Catalyst 6500 feature set and Supervisor Engine 2T architecture into a compact 4.85 RU form factor.

This is the XL Tables version, as opposed to the standard-table C6880-X-LE. It supports 2048K IPv4 and 1024K IPv6 routes, 256K shared ACL entries, 1024K NetFlow entries per module slot (up to 5M per system) and 4 GB of onboard memory. The base chassis provides 16 fixed 10GbE SFP+ / 1GbE SFP ports, with four slots for optional 16-port cards, scaling to 80 ports per chassis and up to 2 Tbps of switching capacity. Two power supply slots provide 1+1 redundancy, and the chassis does not provide PoE.

It works with C6880-X-16P10G port cards (XL tables), 3000W AC or DC power supplies, and a wide range of 10G SFP+ and 1G SFP optics and twinax cables. Virtual Switching System (VSS) support allows two chassis to be combined for up to 4 Tbps of switching capacity.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Catalyst 6500 feature set in a compact fixed-aggregation form factor
- Full MPLS/VPLS in hardware with large table sizes, up to 2M FIB entries
- Virtual Switching System (VSS) support to combine two chassis
- N+1 redundant fans and 1+1 power supply redundancy
- Hot-swappable port cards and power supplies (OIR)
- Cisco TrustSec with IEEE 802.1AE MACsec, role-based ACL and CoPP
- Flexible and Sampled NetFlow for application visibility
- Catalyst Instant Access and Smart Install Director support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Base ports: 16 x 10GbE SFP+ / 1GbE SFP / 100BASE-FX SFP
- Port card slots: 4 (16-port 10G/1G cards)
- Maximum port density per chassis: up to 80 x 10GbE or 80 x 1GbE
- Maximum port density (VSS): up to 158 x 10GbE or 158 x 1GbE
- Switching capacity: up to 2 Tbps (4 Tbps with VSS)
- Performance: up to 220 Gbps per port card slot
- Power supply slots: 2, 1+1 redundancy
- Power supply compatibility: 3000W AC or 3000W DC
- Input voltage: 100 to 240 VAC; -48 to -60 VDC
- Routes: 2048K IPv4 / 1024K IPv6
- ACL entries: 256K shared for QoS/Security
- MAC entries: 128K
- NetFlow entries: 1024K per module slot; up to 5M per system
- Multicast routes: 128K IPv4 / 128K IPv6
- IPv4 routing: up to 300 Mpps in hardware (fully populated system)
- IPv6 routing: up to 150 Mpps in hardware (fully populated system)
- VLANs: 4K; bridge domains: 16K; logical interfaces: 128K
- MPLS: in hardware, up to 8192 VRFs
- Jumbo frame support: up to 9216 bytes
- Onboard memory: 4 GB
- Dimensions (H x W x D): 8.75 x 17.35 x 23 in (22.23 x 44.07 x 58.42 cm)
- Rack units: 4.85 RU
- Weight (chassis with 2 PSUs and fan tray): 29.03 kg
- Operating temperature: 0 to 40 C
- Relative humidity (operating, non-condensing): 5% to 90%

FAQs

Q: What is the difference between the C6880-X and the C6880-X-LE?
A: The C6880-X has XL tables, with 2048K IPv4 routes, 256K ACL entries and 4 GB of memory. The C6880-X-LE has standard-size tables. Cisco recommends similar memory capacity across chassis for optimal performance.

Q: Which power supplies does the C6880-X use?
A: It has two power supply slots with 1+1 redundancy. Supported power supplies are the C6880-X-3KW-AC (3000W AC, 100 to 240 VAC) and the C6880-X-3KW-DC (3000W DC, -48 to -60 VDC). The chassis does not provide PoE.

Q: Which port cards work with this chassis?
A: The chassis accepts the C6880-X-16P10G (XL tables) and the C6880-X-LE-16P10G (standard tables) 16-port cards in its four slots, for up to 80 ports per chassis.

Q: Which optics does it support?
A: For 10G SFP+, supported options include SFP-10G-SR, -LRM, -LR, -ER, -ZR and DWDM-SFP10G, plus SFP-H10GB-CU and ACU twinax cables. For 1G SFP, supported options include GLC-SX-MM(D), GLC-LH-SM(D), GLC-EX-SMD, GLC-ZX-SM(D), GLC-BX-D/U, GLC-T and GLC-GE-100FX.

Q: Which software feature sets are available?
A: The IP Services and Advanced Enterprise Services feature sets are available, with software support from 15.1(2)SY1 and later. Port card support starts from 15.1(2)SY2.
