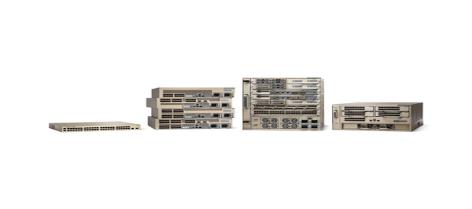

• Cisco C6880-X-LE silver router with modular ports up to 40G
1 1

Cisco

Cisco C6880-X-LE | Catalyst 6880-X 16-Port 10G Chassis, Standard Tables

C6880-X-LE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 6880-X is an extensible fixed aggregation switch for the aggregation and distribution layer of small and midsize campus backbones that need premium 10G services, MPLS/VPLS, virtualisation and high availability. This C6880-X-LE chassis is the Standard Tables (LE) version and includes 16 multi-rate 10G/1G SFP+/SFP ports.

Four slots accept optional 16-port cards, so a single chassis scales from 16 to 80 10GbE or 1GbE ports in 16-port steps. Switching capacity is up to 2 Tbps, or 4 Tbps when two chassis are paired with Virtual Switching System (VSS), with up to 220 Gbps per port card slot. The standard tables support 256K IPv4 and 128K IPv6 routes, 64K shared QoS and security ACL entries and up to 2.5M NetFlow entries per system. Power comes from 1+1 redundant 3000W supplies with N+1 redundant fans.

The chassis accepts C6880-X-LE-16P10G multi-rate port cards and takes 1G SFP and 10G SFP+ optics. Matching accessories include the C6880-X-3KW-AC and C6880-X-3KW-DC power supplies, the C6880-X-FAN fan tray and the C6880-X-NEBS-PAK air dam set. Features depend on the IOS software image (15.1(2)SY and later), and Cisco ONE Software for Access Switching is available.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Extensible fixed aggregation design, from 16 to 80 10G/1G ports in 16-port increments
- Hot-swappable port cards, with every port supporting 10GbE SFP+ and 1GbE SFP
- Same architecture as the Catalyst 6500 Supervisor Engine 2T, with the Catalyst 6500 feature set
- Full MPLS/VPLS, VRF, EVN, GRE and hardware-assisted NAT
- Virtual Switching System (VSS) pairs two chassis for 4 Tbps and a single point of management
- Cisco TrustSec with MACsec (IEEE 802.1AE), role-based ACLs and CoPP DoS protection
- Flexible and Sampled NetFlow for application visibility
- N+1 redundant fans and 1+1 power supply redundancy

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Base chassis ports: 16 x 10G/1G SFP+/SFP
- Port card slots: 4 (16-port C6880-X-LE-16P10G cards)
- Maximum port density: up to 80 x 10GbE or 80 x 1GbE per chassis
- Maximum port density (VSS): up to 158 x 10GbE or 158 x 1GbE
- Switching capacity: up to 2 Tbps (4 Tbps with VSS)
- Performance: up to 220 Gbps per port card slot
- Routes: 256K IPv4 / 128K IPv6
- ACL entries: 64K shared for QoS/Security
- NetFlow entries: 512K per module slot, up to 2.5M per system
- MAC entries: 128K
- IPv4 routing: up to 300 Mpps in hardware (fully populated system)
- IPv6 routing: up to 150 Mpps in hardware (fully populated system)
- Jumbo frame support: up to 9216 bytes
- VLANs: 4K
- Onboard memory: 2 GB (units shipping from March 2016 have 4 GB)
- Oversubscription: 16 x 10G at 2:1 (default); 8 x 10G at 1:1 in performance mode
- Power supply compatibility: 3000W AC or 3000W DC, 1+1 redundant
- Input voltage: 100 to 240 VAC; -48 to -60 VDC
- Dimensions (H x W x D): 8.75 x 17.35 x 23 in (22.23 x 44.07 x 58.42 cm), 4.85 RU
- Weight (chassis with 2 PSUs and fan tray): 29.03 kg
- Operating temperature: 0 to 40 C
- Relative humidity (operating): 5% to 90% non-condensing

FAQs

Q: What does Standard Tables (LE) mean on this chassis?
A: The LE version uses standard forwarding tables: 256K IPv4 and 128K IPv6 routes, 64K shared QoS and security ACL entries and up to 2.5M NetFlow entries per system.

Q: Which power supplies does it use?
A: It takes 1+1 redundant hot-swappable 3000W supplies, either the C6880-X-3KW-AC (100 to 240 VAC) or the C6880-X-3KW-DC (-48 to -60 VDC). The C6880-X-FAN fan tray is also required.

Q: Which port cards can I add?
A: The four card slots accept C6880-X-LE-16P10G multi-rate port cards. Each card adds 16 ports that support 1G SFP and 10G SFP+ optics, for up to 80 ports per chassis.

Q: Does it need a licence?
A: No mandatory licence tier is stated for this SKU. Available features depend on the IOS software image (15.1(2)SY and later), and Cisco ONE Software for Access Switching is available.

Q: Can two chassis be combined?
A: Yes. Virtual Switching System (VSS) pairs two chassis for up to 4 Tbps switching capacity and a single point of management.
