Cisco C6832-X-LE | Catalyst 6800 32-Port 10G SFP+ Switch, Standard Tables

C6832-X-LE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

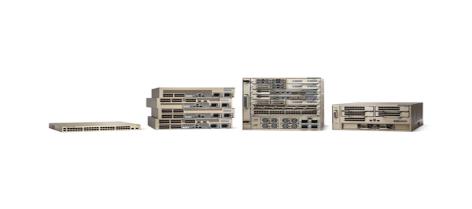

The Catalyst 6832-X is a fixed 2RU backbone switch from the Catalyst 6800 range, built for campus core and distribution/aggregation roles. It also suits MPLS aggregation, acts as a Catalyst Instant Access controller, and works as a premium 10G service introduction point for enterprise networks.

This LE model provides 32 native 10G SFP/SFP+ ports with no 40G ports. Switching capacity reaches 160 Gbps full duplex with forwarding performance of up to 120 Mpps. Standard forwarding tables (LE) give 128K MAC entries, 256K IPv4 or 128K IPv6 routes and 1M NetFlow entries per system. Two Virtual Switching System chassis can be paired for up to 62 x 10G ports under a single point of management. Power comes from 1+1 redundant hot-swappable 750W AC or DC supplies, with a removable fan tray holding four redundant fans. The chassis runs IOS 15.2(2)SY or later.

It works with the SFP-10G-SR, SFP-10G-LRM, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and DWDM-SFP10G optics, SFP-H10GB twinax cables, and a range of 1G GLC SFPs including GLC-SX-MM, GLC-LH-SM and GLC-T.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full-feature Layer 2/3 with MPLS, VPLS and IPv4/IPv6 support
- Virtual Switching System (VSS) for high availability and single-point management
- Cisco TrustSec with IEEE 802.1AE MACsec, role-based ACL and CoPP
- Virtualisation suite including L2/L3 VPN, EVN, VRF-aware NAT/NetFlow and GRE
- Flexible and Sampled NetFlow with hierarchical QoS for application visibility
- Catalyst Instant Access controller and Smart Install Director for zero-touch deployment
- 1+1 power supply redundancy with a removable fan tray of four redundant fans
- Large per-port buffers with dual priority queues and two-level shaping

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 32 x 10G SFP/SFP+ native
- 40G ports: 0
- Switching capacity: up to 160 Gbps full duplex
- Forwarding performance: up to 120 Mpps
- Forwarding tables: standard (LE)
- MAC entries: 128K
- Routes: 256K IPv4 / 128K IPv6
- NetFlow entries: 1M per system
- ACL entries: 64K shared for QoS/security
- Multicast routes: 128K IPv4 / 64K IPv6
- VLANs: 4094
- Jumbo frames: up to 9216 bytes
- Onboard memory: 4GB
- Oversubscription: 2:1 default, 1:1 in performance mode
- Power supplies: 1+1 redundant hot-swappable 750W AC or DC
- Input voltage: 100 to 240 VAC; -48 to -72 VDC
- Rack units: 2RU
- Dimensions (H x W x D): 8.89 x 44.07 x 54.66 cm
- Weight (chassis with 2 power supplies and fan): 15.4 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 65 C
- Operating humidity: 5% to 90% non-condensing
- Software compatibility: IOS 15.2(2)SY and later

FAQs

Q: Which power supplies does the C6832-X-LE use?
A: It takes 750W AC or 750W DC hot-swappable power supplies in a 1+1 redundant arrangement. Input is 100 to 240 VAC or -48 to -72 VDC.

Q: What optics and cables work with it?
A: The 10G ports accept SFP-10G-SR, SFP-10G-LRM, SFP-10G-LR, SFP-10G-ER, SFP-10G-ZR and DWDM-SFP10G, plus SFP-H10GB twinax cables. 1G SFPs such as GLC-SX-MM, GLC-LH-SM, GLC-ZX-SM and GLC-T are also supported.

Q: What does the LE suffix mean?
A: LE denotes standard forwarding tables: 128K MAC entries, 256K IPv4 or 128K IPv6 routes and 1M NetFlow entries per system. This model has 32 x 10G ports and no 40G ports.

Q: Can two units be paired for higher port density?
A: Yes. The Catalyst 6832-X supports Virtual Switching System (VSS), which pairs two chassis for up to 62 x 10G ports under a single point of management.

Q: Which software does it run?
A: It runs IOS 15.2(2)SY or later, with IP Services and Advanced Enterprise Services feature sets.
