• Cisco C6824-X-LE-40G silver router with 24x10GbE SFP+ ports
1 1

Cisco

Cisco C6824-X-LE-40G | Catalyst 6800 24-Port 10G SFP+ Switch, 2x 40G QSFP+

C6824-X-LE-40G

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

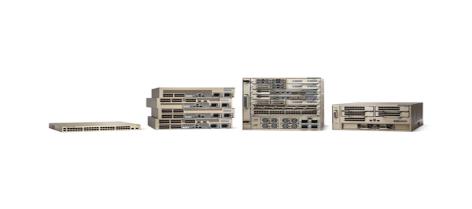

The Catalyst 6800 family delivers a 2RU fixed backbone switch aimed at small and midsize campus backbones. It suits premium 10G services, MPLS aggregation, Instant Access controller roles and campus core or distribution aggregation, with full Layer 2 and Layer 3, MPLS, VPLS and IPv4/IPv6 support.

This model provides 24 native 10G SFP/SFP+ ports and 2 native 40G QSFP+ uplinks, with up to 160 Gbps of full duplex switching capacity and up to 120 Mpps of performance. Breakout cables add 8 further 10G ports. The system supports 128K MAC entries, 256K IPv4 and 128K IPv6 routes, and 1M NetFlow entries per system. It takes hot-swappable 750W AC or DC power supplies in a 1+1 redundant arrangement, and the supplies are ordered separately.

Software feature sets are IP Services and Advanced Enterprise Services on IOS 15.2(2)SY or later. The switch supports 10G SFP+ optics such as SFP-10G-SR, SFP-10G-LR and SFP-10G-ER, SFP+ Twinax cables, and 1G SFP modules including GLC-SX-MM, GLC-LH-SM and GLC-T. Virtual Switching System is supported between 6840-X chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Full-feature Layer 2 and Layer 3 with MPLS, VPLS and IPv4/IPv6 support
- Virtual Switching System (VSS) support with 1+1 power supply redundancy and removable fan tray
- Cisco TrustSec with IEEE 802.1AE MACsec, role-based ACL and CoPP
- Virtualisation features including L2/L3 VPN, MPLS, EVN, VRF-aware NAT and NetFlow, GRE and VPLS
- Application visibility and control with Flexible and Sampled NetFlow and hierarchical QoS
- Instant Access client and controller with Smart Install Director for zero-touch deployment
- Online insertion and removal of redundant power supplies and fan tray
- NEBS Level 3 compliance

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10G SFP/SFP+ native
- Uplinks: 2 x 40G QSFP+ native
- Additional 10G ports: 8 x 10G via breakout cable
- Switching capacity: up to 160 Gbps full duplex
- Performance: up to 120 Mpps
- Form factor: 2RU fixed chassis
- MAC entries: 128K
- Routes: 256K IPv4, 128K IPv6
- ACL entries: 64K shared for QoS and security
- NetFlow entries: 1M per system
- Multicast routes: 128K IPv4, 64K IPv6
- VLANs: 4094
- Jumbo frame support: up to 9216 bytes
- Onboard memory: 4GB
- Oversubscription: 2:1 default, 1:1 in performance mode
- Power supply compatibility: 750W AC or 750W DC
- Input voltage: 100 to 240 VAC; -48 to -72 VDC
- Dimensions (H x W x D): 8.89 x 44.07 x 54.66 cm
- Weight: 15.8 kg
- Operating temperature: 0 to 40 C
- Storage temperature: -20 to 65 C
- Software feature sets: IP Services, Advanced Enterprise Services
- Software compatibility: IOS 15.2(2)SY and later

FAQs

Q: Which power supplies does this switch use?
A: It takes hot-swappable 750W AC (C6840-X-750W-AC=) or 750W DC (C6840-X-750W-DC=) power supplies in a 1+1 redundant arrangement. The chassis is ordered without power supplies.

Q: What software feature sets does it support?
A: It supports the IP Services and Advanced Enterprise Services feature sets and runs IOS 15.2(2)SY or later.

Q: Which optics and cables work with the 10G and 40G ports?
A: The 10G ports accept SFP-10G-SR, LRM, LR, ER and ZR modules, DWDM-SFP10G optics and SFP+ Twinax cables from SFP-H10GB-CU1M to ACU10M. The 1G SFP modules GLC-SX-MM, GLC-LH-SM, GLC-ZX-SM, GLC-BX-D/U and GLC-T are also supported. The 40G ports are native QSFP, and breakout cables provide 8 extra 10G ports.

Q: Can two of these switches be combined into one logical system?
A: Yes. Virtual Switching System (VSS) works between any 6840-X chassis, giving up to 46 native 10G ports plus 8 x 10G via breakout cable across the pair.

Q: What is the oversubscription ratio?
A: The default mode is 2:1 oversubscription, and it can be configured for 1:1 in performance mode.
