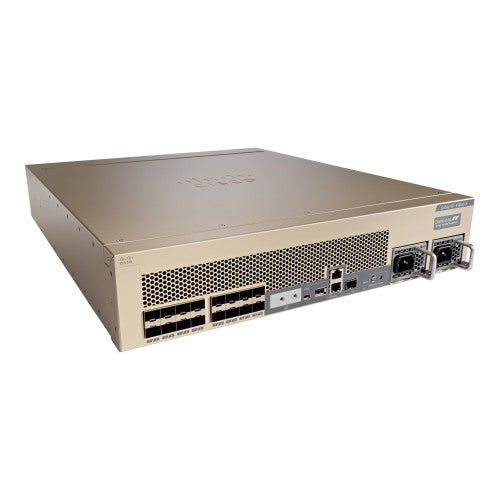

• Cisco C6816-X-LE 16-slot gold router with ports and sleek design
1 1

Cisco

Cisco C6816-X-LE | Catalyst 6800 16-Port 10G SFP+ Switch, LE Tables

C6816-X-LE

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 6816-X is a fixed 2RU backbone switch in the Catalyst 6800 family, built on the 6840-X platform. It is aimed at small and midsize campus backbones that need premium 10G services, and it can also act as an MPLS aggregator or an Instant Access controller, as well as a campus core or distribution aggregation switch.

This LE variant provides 16 native 10G SFP/SFP+ ports with up to 80 Gbps of full duplex switching capacity and up to 60 Mpps of forwarding performance. It uses standard LE table sizes: 128K MAC entries, 256K IPv4 and 128K IPv6 routes, 64K shared ACL entries and 512K NetFlow entries per system. Oversubscription is 2:1 by default and can be configured to 1:1 in performance mode. The chassis takes two hot-swappable 750W AC or DC power supplies in 1+1 redundancy.

Optics support covers SFP-10G-SR, LRM, LR, ER and ZR, DWDM-SFP10G, SFP-H10GB twinax cables up to 10m, and a range of 1G SFPs including GLC-SX-MM, GLC-LH-SM, GLC-ZX-SM and GLC-T. Virtual Switching System (VSS) is supported between 6840-X chassis, and the switch requires Cisco IOS 15.2(2)SY or later.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Virtual Switching System (VSS) pairs two chassis for 1.92 Tbps combined switching capacity and single-point management
- Instant Access controller support, allowing a client switch to act as a remote line card
- Smart Install Director for zero-touch deployment of access switches
- 1+1 power supply redundancy and a four-fan removable fan tray, with online insertion and removal
- Cisco TrustSec with IEEE 802.1AE MACsec, SGT/SGACL, CoPP and role-based ACLs
- Full MPLS, VPLS/H-VPLS, EVN, VRF-Lite, LISP and GRE tunnelling
- Flexible and sampled NetFlow with 2-level Hierarchical QoS and large port buffers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 16 x 10G SFP/SFP+ (native)
- 40G ports: 0
- Switching capacity: up to 80 Gbps full duplex
- Forwarding performance: up to 60 Mpps
- IPv4 routing: in hardware, up to 60 Mpps
- IPv6 routing: in hardware, up to 30 Mpps
- Oversubscription: 2:1 default, 1:1 in performance mode
- MAC entries: 128K
- Routes: 256K IPv4 / 128K IPv6
- ACL entries: 64K shared for QoS and security
- NetFlow entries: 512K per system
- Multicast routes: 128K IPv4 / 64K IPv6
- VLANs: 4094
- Jumbo frame support: up to 9216 bytes
- Onboard memory: 4GB
- Power supply compatibility: 750W AC or 750W DC, 1+1 redundant
- Input voltage: 100 to 240 VAC; -48 to -72 VDC
- Form factor: 2RU fixed chassis
- Dimensions (H x W x D): 8.89 x 44.07 x 54.66 cm
- Weight (chassis with 2 power supplies and fan): 10.09 kg
- Operating temperature: 0 to 40 C
- Software: Cisco IOS 15.2(2)SY or later

FAQs

Q: Which power supplies does the C6816-X-LE use?
A: It takes two hot-swappable 750W power supplies in 1+1 redundancy, either the C6840-X-750W-AC= or the C6840-X-750W-DC=. The 1100W supplies are not supported on this model.

Q: Which optics and cables work with the 16 SFP/SFP+ ports?
A: The ports accept SFP-10G-SR, LRM, LR, ER and ZR, DWDM-SFP10G, SFP-H10GB-CU1M, 3M and 5M twinax cables, and SFP-H10GB-ACU7M and ACU10M. 1G options include GLC-SX-MM, GLC-LH-SM, GLC-EX-SMD, GLC-ZX-SM, GLC-BX-D/U and GLC-T.

Q: What does the LE designation mean?
A: LE denotes the standard table sizes on this chassis: 128K MAC entries, 256K IPv4 and 128K IPv6 routes, 64K ACL entries and 512K NetFlow entries per system.

Q: Can two of these switches be combined?
A: Yes. VSS is supported between all four 6840-X chassis models, pairing two chassis for 1.92 Tbps combined switching capacity and single-point management.

Q: What software does it require?
A: It requires Cisco IOS 15.2(2)SY or later. The available feature sets are IP Services and Advanced Enterprise Services.
