Cisco

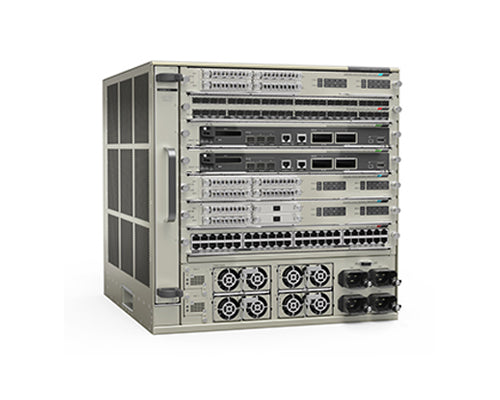

Cisco C6807-XL | Catalyst 6800 7-Slot 10RU Switch Chassis, Chassis Only

C6807-XL

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Catalyst 6807-XL is a 7-slot, 10RU modular switch chassis from the Catalyst 6800 series, built for enterprise campus core and aggregation networks. It suits sites upgrading from existing Catalyst 6500 deployments and needing 1, 10 and 40 Gigabit Ethernet.

The chassis provides two supervisor slots and five module slots, with up to 440 Gbps per slot and up to 11.4 Tbps of system bandwidth (22.8 Tbps in VSS). It takes up to four 3000 W AC power supplies in an N+1 arrangement, supports 100 to 240 VAC or -48 to -60 VDC input, and uses a hot-swappable fan tray with side-to-side airflow. This is the chassis-only SKU, so no supervisor engine or power supplies are part of the unit. The chassis itself needs no licence, as software licensing is tied to the supervisor engine.

It works with Supervisor Engine 6T and 2T in standard and XL versions, the Catalyst 6800 line cards (8P40G, 32P10G, 16P10G and 8P10G, plus XL versions), legacy WS-X68xx and WS-X67xx line cards, and NAM3, ASA-SM, WiSM2 and ACE30 service modules.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Up to 11.4 Tbps system bandwidth and 440 Gbps per slot, ready for 40 Gigabit Ethernet
- 1+1 supervisor engine redundancy, redundant control channel and standby fabric hot sync
- N+1 power supply redundancy with up to four AC power supplies added incrementally, supporting 110 V and 220 V inputs
- Hot-swappable fan tray with variable-speed fans and N+1 fan redundancy
- Side-to-side airflow, consistent with the Catalyst 6500 series for easy upgrades
- Smaller than the 10 RU Catalyst 6506-E chassis while providing an extra slot
- Runs Cisco IOS software and supports Supervisor Engine 6T and 2T line cards, protecting existing investment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Number of slots: 7
- Supervisor engine slots: 2
- Module slots: 5
- Performance: Up to 440 Gbps per slot
- System bandwidth: Up to 11.4 Tbps (22.8 Tbps with VSS)
- Supervisor compatibility: C6800-SUP6T, C6800-SUP6T-XL, VS-S2T-10G, VS-S2T-10G-XL
- Power supply compatibility: AC 3000 W, up to 4 power supplies (N+1)
- Input voltage: 100 to 240 VAC; -48 to -60 VDC
- Online insertion and removal: Supervisor engines, line card modules, power supplies and fan tray
- Rack units: 10 RU
- Dimensions (H x W x D): 44.3 x 44.1 x 46 cm (17.45 x 17.37 x 18.1 in)
- Weight (chassis only): 62 lbs
- Weight (fully configured): 185 lbs
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -20 to 65 C (-4 to 149 F)
- Relative humidity: Operating 5% to 90% non-condensing; non-operating and storage 5% to 95% non-condensing
- Operating altitude: Certified 0 to 2000 m; designed and tested -60 to 3000 m
- Safety: UL 60950 Second Edition, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, AS/NZS 60950
- EMC: FCC Part 15 Class A, VCCI Class A, EN55022 Class A, CISPR 22 Class A, CE marking, AS/NZS 3548 Class A, EN55024, EN61000-6-1

FAQs

Q: Does the chassis need a licence?
A: No. The chassis itself needs no licence. Software licensing comes with the supervisor engine, and Cisco ONE Software (DNA) is available for the 6807-XL.

Q: Which supervisor engines does it support?
A: It supports Supervisor Engine 6T and 6T-XL (C6800-SUP6T, C6800-SUP6T-XL) and Supervisor Engine 2T and 2T-XL (VS-S2T-10G, VS-S2T-10G-XL). Two slots allow 1+1 supervisor redundancy.

Q: What power supplies does it use?
A: It takes up to four 3000 W AC power supplies (C6800-XL-3KW-AC) in an N+1 arrangement. Input voltage is 100 to 240 VAC or -48 to -60 VDC.

Q: Which line cards and modules can I install?
A: It accepts the Catalyst 6800 line cards (8P40G, 32P10G, 16P10G and 8P10G, plus XL versions), legacy WS-X68xx and WS-X67xx line cards, and NAM3, ASA-SM, WiSM2 and ACE30 service modules.

Q: What is the airflow direction?
A: The hot-swappable fan tray provides side-to-side airflow, consistent with the Catalyst 6500 series. The spare fan tray part number is C6807-XL-FAN=.
