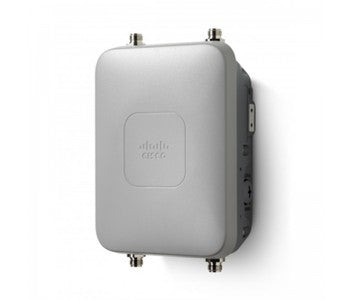

• Cisco AIR-CAP1532I-Z-K9 Wi-Fi 4 access point with gray casing and antennas
1 1

Cisco

Cisco AIR-CAP1532I-Z-K9 | Aironet 1530 Dual-Band Outdoor Access Point, Internal Antennas, Z Domain

AIR-CAP1532I-Z-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1530 is a low-profile dual-band outdoor access point built for street-light pole and building-facade mounting. It suits municipal, carrier-grade and campus outdoor Wi-Fi, as well as mesh and bridge deployments. This AIR-CAP1532I-Z-K9 variant has integrated internal antennas and is configured for the Z regulatory domain, so no external antennas are needed.

It runs two 802.11n radios, 2.4 GHz with 3x3 MIMO and 3 spatial streams and 5 GHz with 2x3 MIMO and 2 spatial streams, for PHY data rates up to 300 Mbps. Channel widths are 20 MHz on both bands and 40 MHz on 5 GHz. It has 10/100/1000BASE-T RJ-45 WAN and LAN ports and an RJ-45 console port. Power is 24 to 57 VDC, UPoE or PoE+ (802.3at) with consumption under 30 W. The IP67 enclosure is rated for -30 to 65 C operation and weighs 2.3 kg.

It operates in controller-based mode with Cisco WLC software release 7.6 or later, or in autonomous mode. It works with the AIR-PWRADPT-1530= AC/DC adapter and the 1530 series wall/pole and tilt/horizontal mounting brackets and solar shield accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Low-profile outdoor design of about 2.9 L that blends into the surroundings, with an optional paintable solar shield
- Dual-radio 2.4 GHz and 5 GHz operation with 802.11n MIMO
- Controller-based (unified) or autonomous operation
- Redundant power inputs, with DC taking priority over PoE
- LTE/WiMAX signal rejection to coexist with cellular transmitters
- Rugged IP67 enclosure with icing and corrosion protection and wind resistance up to 100 mph sustained
- Supports wall/pole and tilt/horizontal mounting brackets

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wireless standard: 802.11a/b/g/n, dual radio (2.4 GHz and 5 GHz)
- 2.4 GHz MIMO: 3x3 with 3 spatial streams
- 5 GHz MIMO: 2x3 with 2 spatial streams
- PHY data rate: up to 300 Mbps
- Channel widths: 20 MHz (2.4 and 5 GHz), 40 MHz (5 GHz only)
- Antennas: integrated internal antennas
- Regulatory domain: Z
- Ethernet ports: 1x WAN and 1x LAN 10/100/1000BASE-T (RJ-45)
- Console: RJ-45 management console port
- Power input: 24 to 57 VDC, UPoE or PoE+ (802.3at)
- Power consumption: less than 30 W
- Enclosure rating: IEC 60529 IP67
- Operating temperature: -30 to 65 C ambient
- Storage temperature: -50 to 85 C
- Humidity: 0 to 100% condensing
- Dimensions (L x W x H): 23 x 17 x 10 cm
- Weight: 2.3 kg
- Minimum controller software: release 7.6 (controller mode)

FAQs

Q: Does it need a separate software licence?
A: No separate software licence is required for standalone operation. It can run in autonomous mode, or in controller-based mode with Cisco WLC software release 7.6 or later.

Q: How is the access point powered?
A: It accepts 24 to 57 VDC, UPoE or PoE+ (802.3at). When powered by PoE+, the access point automatically disables one of the 2.4 GHz transmitters. For AC mains power, the AIR-PWRADPT-1530= AC/DC adapter is used.

Q: Can I use PoE injectors with it?
A: The AIR-PWRINJ1500-2= and AIR-PWRINJ4= injectors are compatible but are for indoor use only.

Q: What does the Z in AIR-CAP1532I-Z-K9 mean?
A: Z denotes the Z regulatory domain. This variant also has integrated internal antennas, so no external antennas are needed.

Q: What can I use to mount it?
A: It supports the 1530 series wall/pole bracket and the tilt/horizontal bracket, making it suitable for street-light pole or building-facade mounting.
