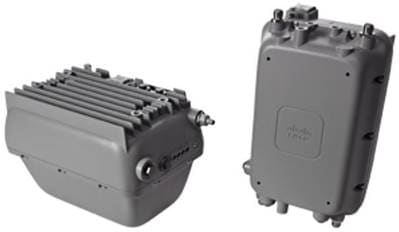

• Cisco AIR-AP1572IC2-Z-K9 outdoor Wi-Fi 5 access point with gray enclosure and internal antennas
1 1

Cisco

Cisco AIR-AP1572IC2-Z-K9 | Aironet 1570 Outdoor Access Point, DOCSIS 3.0, Reg Z

AIR-AP1572IC2-Z-K9

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aironet 1570 is a ruggedised outdoor dual-band 802.11ac Wave 1 access point for carrier-grade and enterprise campus Wi-Fi. This 1572IC variant has integrated omnidirectional antennas under a common radome and a built-in North American DOCSIS 3.0 cable modem, so it can backhaul over a hybrid fibre-coax network. It suits outdoor campuses, public venues such as stadiums, train stations and airports, cable operator Wi-Fi offload, municipal deployments and industrial yards.

Both radios use 4x4 MIMO with three spatial streams and support 20, 40 and 80 MHz channels, for up to 1.3 Gbps PHY data rate on 5 GHz. The cable modem uses a 5-85 / 108-1002 MHz diplexer split and supports channel bonding up to 24x8, giving up to 912 Mbps downstream and 216 Mbps upstream usable throughput. It is built for regulatory domain Z and powered over the coax cable at 40-90 VAC, or from 10-16 VDC. The IP67 and NEMA Type 4X enclosure is rated for -40 to 65 C operation.

It is operated in controller-based mode with a Cisco wireless LAN controller. It needs a DOCSIS 3.0 CMTS, and channel bonding requires a bonding-capable CMTS. Pole mounting kits PMK1-3 and strand mounting brackets SMK1-3 are available, along with the optional AIR-ANT-GPS-1 GPS antenna.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Carrier-grade outdoor Wi-Fi with 802.11ac dual-band radios and 4x4 MIMO with 3 spatial streams
- Integrated DOCSIS 3.0 cable modem with up to 24x8 channel bonding for backhaul over HFC networks
- Powered over the coax cable, so no separate power run is needed in cable deployments
- Wireless mesh, Fibre SFP and Gigabit Ethernet uplink options
- Controller-based, mesh, point-to-point and multipoint bridge, serial backhaul and workgroup bridge deployment modes
- Security including 802.11i WPA2/WPA, 802.1X, AES/TKIP, IPsec and MAC filtering
- Low visual profile, ruggedised IP67 and NEMA 4X enclosure rated -40 to 65 C

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Aironet 1572IC, internal antenna, Power over Cable
- Wireless standards: 802.11a/b/g/n/ac Wave 1, dual-band 2.4 GHz and 5 GHz
- MIMO: 4x4 with 3 spatial streams, MRC and beamforming
- Channel widths: 20, 40 and 80 MHz
- Max PHY data rate: 450 Mbps (802.11n, 40 MHz, 5 GHz), 1.3 Gbps (802.11ac, 80 MHz, 5 GHz)
- Cable modem: NA-DOCSIS 3.0, 5-85 / 108-1002 MHz diplexer split
- DOCSIS channel bonding: up to 24x8, up to 912 Mbps downstream and 216 Mbps upstream usable
- Maximum conducted transmit power: 30 dBm with 4 antennas, varies by channel and country
- Antennas: integrated dual-band omnidirectional, 4 dBi (2.4 GHz) and 6 dBi (5 GHz)
- Interfaces: 1x 10/100/1000BASE-T WAN (RJ-45), 1x 10/100/1000BASE-T LAN (RJ-45), Fibre SFP, RJ-45 console
- Uplink options: Ethernet, Fibre SFP, wireless mesh, cable modem
- Power: PoC 40-90 VAC 50/60 Hz, or 10-16 VDC
- Regulatory domain: Z
- Dimensions (L x W x D): 30.0 x 20.1 x 20.1 cm
- Operating temperature: -40 to 65 C ambient, -40 to 55 C with solar loading
- Storage temperature: -50 to 70 C
- Humidity: 5-95% non-condensing
- Environmental ratings: IP67, NEMA Type 4X
- Wind resistance: up to 100 mph sustained, 165 mph gusts

FAQs

Q: Does it need a Cisco wireless LAN controller?
A: It is operated in controller-based mode with a Cisco wireless LAN controller. No separate software licence is listed for the access point itself.

Q: How is the access point powered?
A: It is powered over the coax cable at 40-90 VAC, 50/60 Hz, or from 10-16 VDC. It has no AC mains input and does not provide PoE out.

Q: What cable network does it require?
A: It needs a DOCSIS 3.0 CMTS using the NA-DOCSIS 5-85 / 108-1002 MHz split. Channel bonding requires a bonding-capable CMTS.

Q: What mounting options and accessories are available?
A: Pole mounting kits PMK1-3 and cable strand mounting brackets SMK1-3 are available. The optional GPS antenna is AIR-ANT-GPS-1.

Q: Can it use a fibre uplink?
A: Yes. It has a Fibre SFP uplink as well as Gigabit Ethernet, wireless mesh and the DOCSIS cable modem.
