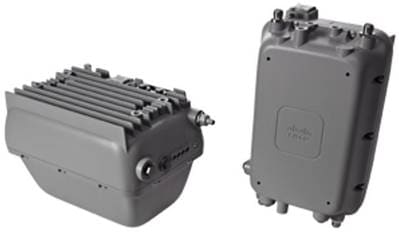

Cisco AIR-AP1572EC3-Z-K9 | Outdoor AP, Wi‑Fi 5 (802.11ac) Wave 1, dual-band 2.4/5 GHz, external antennas, DOCSIS 3.0 backhaul (65/108 MHz), IP67

SKU:AIR-AP1572EC3-Z-K9

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Rugged outdoor dual-band 802.11ac access point with external-antenna flexibility and integrated DOCSIS 3.0 HFC backhaul for EU 65/108 MHz split deployments. Ideal for municipal Wi‑Fi, transport hubs, and industrial yards.

Features

- DOCSIS 3.0 HFC backhaul optimized for EU frequency split
- External-antenna design for tailored RF patterns
- IP67 ruggedization for challenging outdoor sites
- High-capacity dual-band 802.11ac coverage
- Enterprise-grade security and controller-based operations

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Which HFC split does this model support?
A: It supports the 65/108 MHz split commonly used in European HFC networks.

Q: Does it support MU‑MIMO?
A: No. As a Wave 1 802.11ac AP, it supports SU‑MIMO up to 3 spatial streams.

Q: Can I choose different antennas?
A: Yes. Use compatible N‑type dual-band outdoor antennas to match coverage goals.

Q: How is it managed?
A: Through a Cisco wireless LAN controller; FlexConnect is supported for distributed sites.

Q: Is the enclosure weatherproof?
A: Yes, it is IP67 rated for harsh outdoor environments.

Technical Specifications

- Wi‑Fi standard: 802.11ac (Wi‑Fi 5), Wave 1; 3x3:3 MIMO; 80 MHz channels
- Bands: concurrent 2.4 GHz (802.11n) and 5 GHz (802.11ac)
- Max data rates: up to 1.3 Gbps (5 GHz), up to 450 Mbps (2.4 GHz)
- Antenna: external; N-type connectors (dual-band), antenna selection per design
- Backhaul: integrated DOCSIS 3.0 cable modem, 65/108 MHz split (EU)
- Ingress protection: IP67; outdoor-rated enclosure
- Operating temperature: -40 to +65 °C (typical for series)
- Power: HFC/coax plant power (DOCSIS 3.0); site-specific options
- Management: controller-based (WLC) and FlexConnect support
- Security: WPA2-Enterprise, 802.1X, rogue detection
- Regulatory domain: Z
