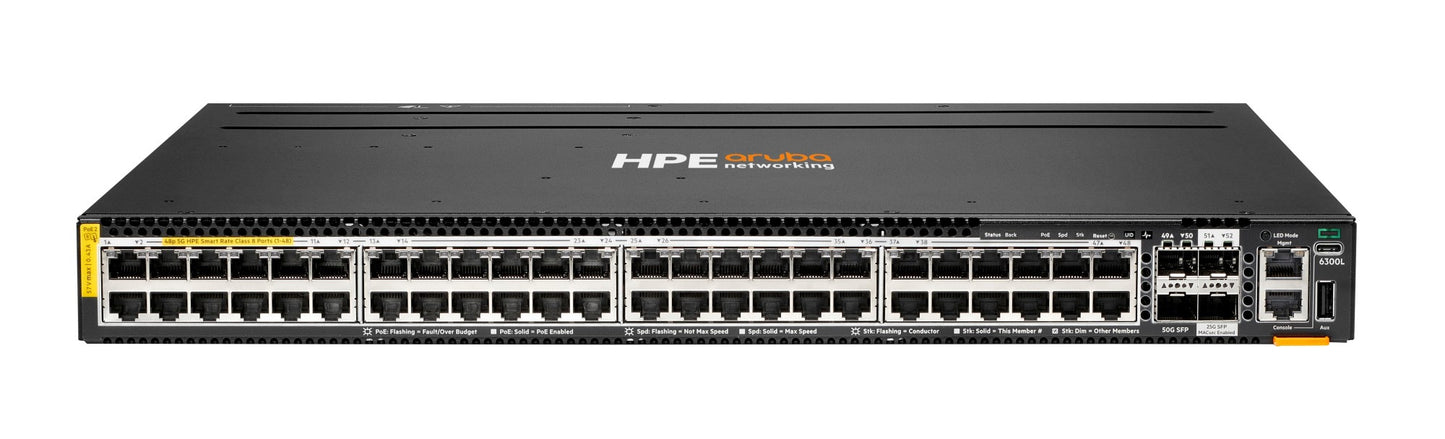

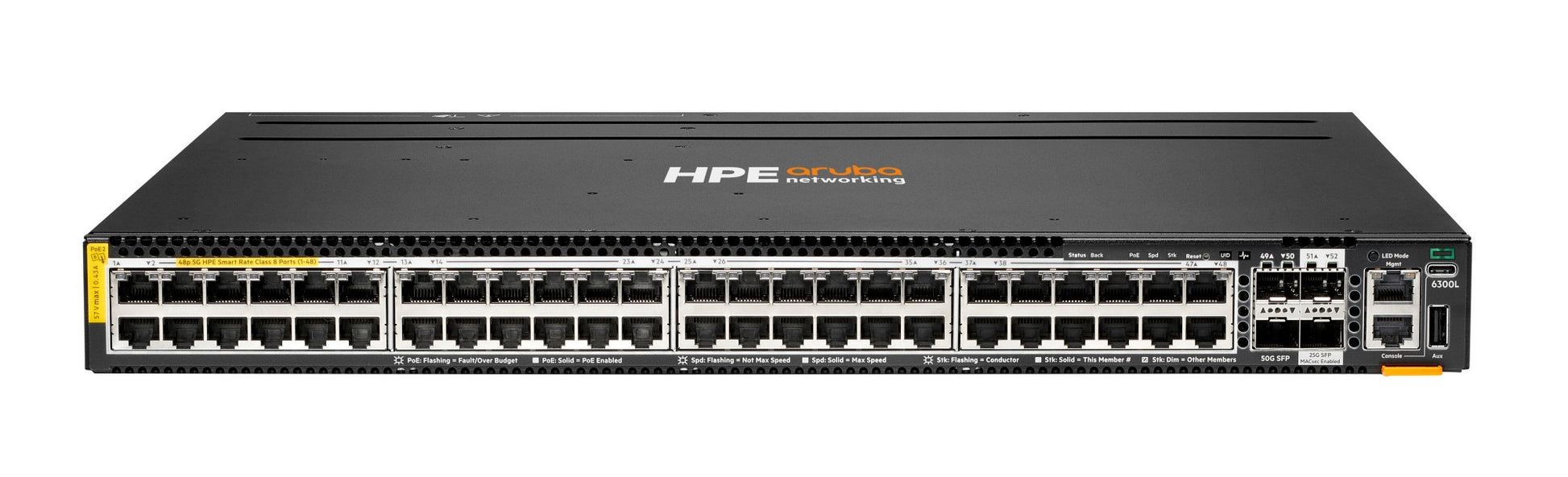

Aruba S3L76A | CX 6300L 48-Port mGig PoE Class 8 Switch, 2x 50G SFP56

S3L76A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The CX 6300L is a stackable, Layer 2 access switch built for enterprise access-layer deployments that need multi-gigabit and high-power PoE. It suits Wi-Fi 6, 6E and 7 access points, IoT devices and other powered endpoints, and runs the AOS-CX operating system.

This model provides 48 HPE Smart Rate 100M/1G/2.5G/5G BASE-T ports with IEEE 802.3bt PoE from Class 6 (60W) up to Class 8 (90W) per port. Uplinks are 2 x 50G SFP56 and 2 x 25G SFP28. Switching capacity is 780 Gbps with a forwarding rate of 580 Mpps, and the PoE budget is set by modular hot-swappable power supplies, with support of up to 2880W. Layer 2 switching is combined with IPv4 static routing, QoS, ACLs and MACsec 256 encryption on the downlinks. VSF stacking joins up to 10 CX 6300L switches.

The 50G SFP56 uplinks accept SFP56 SR transceivers (R0M48A) and 50G DAC cables such as R0M46A, R0M47A, S1J07A and S1J08A. The 25G SFP28 uplinks accept SFP28 SR, LR and eSR transceivers and SFP28 DAC or AOC cables such as JL484A, JL486A and JL487A. VSF stacking works only among CX 6300L switches, not with CX 6300F or CX 6300M.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs the cloud-native, microservices-based AOS-CX operating system
- Network Analytics Engine for intelligent monitoring, visibility and remediation
- Dynamic Segmentation extends role-based policy from wireless to wired ports
- Managed through HPE Aruba Networking Central or HPE Mist
- Multi-Edit support for automated configuration and verification
- VSF stacking with up to 10 members for scale and high availability
- MACsec 256 encryption on the downlinks
- Modular hot-swappable power supplies and fans for sizing the PoE budget and field replacement

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 48 x HPE Smart Rate 100M/1G/2.5G/5G BASE-T
- PoE standard: IEEE 802.3bt Class 6 (60W) to Class 8 (90W)
- Uplink ports: 2 x SFP56 50G, 2 x SFP28 25G
- Switching capacity: 780 Gbps
- Forwarding rate: 580 Mpps
- Maximum PoE support: up to 2880W
- Layer: Layer 2 with IPv4 static routing
- Stacking: VSF, up to 10 CX 6300L members
- Encryption: MACsec 256 on downlink ports
- Power supplies: modular, hot-swappable, ordered separately
- Fans: modular, hot-swappable, field replaceable
- Operating system: AOS-CX
- Management: HPE Aruba Networking Central or HPE Mist
- Form factor: 1U rack-mount

FAQs

Q: Does this switch need a licence or subscription?
A: It runs AOS-CX with its native feature set. An optional term-based CX Advanced Feature Pack unlocks advanced visibility and security use cases. Cloud management needs Central Foundation or Advanced, or HPE Mist Wired Assurance.

Q: How is the PoE budget set?
A: The PoE budget is determined by the modular hot-swappable power supplies, which are ordered separately. Each port can deliver up to 90W (802.3bt Class 8), with support of up to 2880W in total.

Q: Which transceivers and cables work in the uplink ports?
A: The 50G SFP56 ports accept the R0M48A SR transceiver and 50G DAC cables such as R0M46A, R0M47A, S1J07A and S1J08A. The 25G SFP28 ports accept SFP28 SR, LR and eSR transceivers and DAC or AOC cables such as JL484A, JL486A and JL487A.

Q: Can it be stacked with other CX 6300 models?
A: VSF stacking supports up to 10 members, but only among CX 6300L switches. It does not stack with CX 6300F or CX 6300M, and VSF stacking is not supported on 1G ports.

Q: Does it support Layer 3 routing?
A: It is a Layer 2 switch with IPv4 static routing, QoS, ACLs and User-Based Tunnelling for Dynamic Segmentation.
