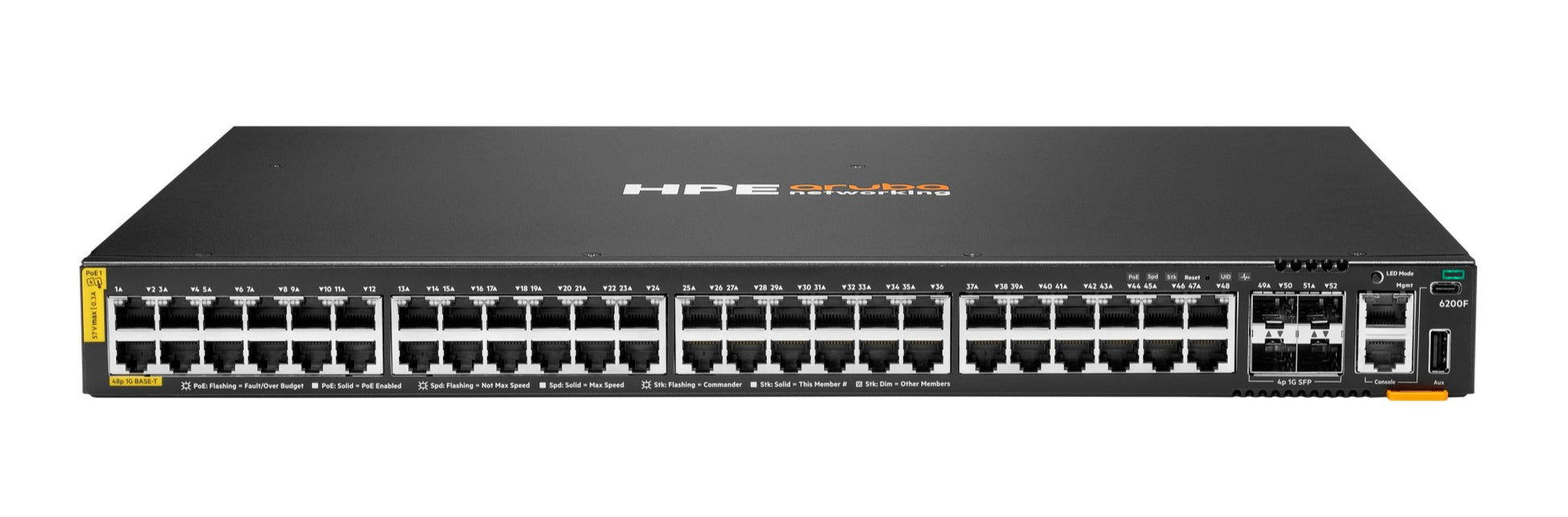

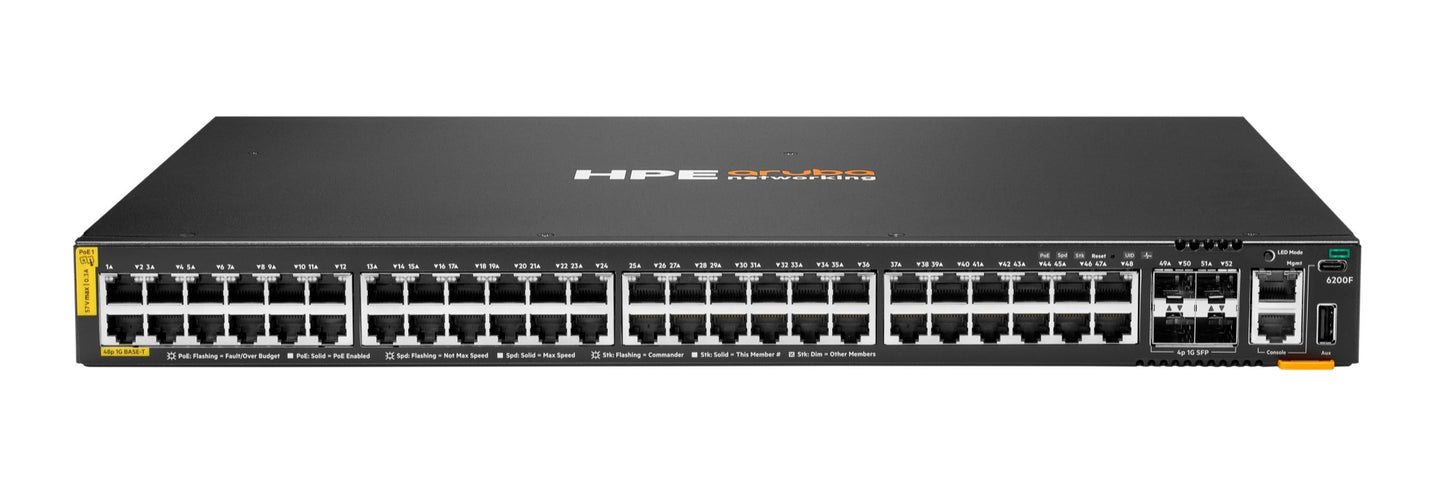

• Aruba S0M85A HPE 1820-48G PoE switch with sleek black silver design
1 1

Aruba

Aruba S0M85A | CX 6200F 48-Port Gigabit PoE+ Switch, 740W, 4x 1G SFP

S0M85A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200F is a fixed-configuration, stackable Layer 3 access switch running AOS-CX. It suits enterprise branch offices, campuses and SMB networks that need to power wireless access points, IP phones, cameras and IoT endpoints from a single 1U switch.

This model provides 48 10/100/1000BASE-T Class 4 PoE ports, delivering up to 30W per port from a 740W PoE budget (IEEE 802.3af/at). Four 100M/1G SFP ports handle uplinks. Switching capacity is up to 104 Gbps with throughput of up to 77.4 Mpps, and VSF stacking supports up to 8 members in chain or ring topology. Power is supplied by a fixed 80 PLUS Silver AC supply, with fixed fans and front and side to back airflow.

AOS-CX includes the base feature set with no mandatory licence for local operation. Management through Aruba Central needs a separate subscription. The SFP uplinks accept 1G transceivers such as J4858D (SX), J4859D (LX), J4860D (LH) and J8177D (RJ45 T), and 10G SFP+ optics and DACs can be used for VSF stacking links.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- AOS-CX operating system with a built-in time-series database for troubleshooting and trend analysis
- Network Analytics Engine (NAE) for built-in monitoring and automation
- VSF stacking of up to 8 switches (up to 384 downlink ports) in chain or ring topology
- Dynamic Segmentation applies role-based policy consistently across wired and wireless
- Easy deployment and stacking via the CX Mobile App
- Built-in REST API, sFlow, ACLs, QoS and static/OSPF (Access OSPF) routing
- Management through Aruba Central
- Class 4 PoE (30W per port) for APs, IoT devices and cameras

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x 10/100/1000BASE-T Class 4 PoE, up to 30W per port
- Uplinks: 4x 100M/1G SFP
- PoE standards: IEEE 802.3af, 802.3at
- PoE budget: 740W
- Switching capacity: up to 104 Gbps
- Throughput: up to 77.4 Mpps
- Average latency (64-byte, 1 Gbps): 3.2 µs
- CPU: Quad Core ARM Cortex A72 at 1.8GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Packet buffer: 8 MB
- Stack size: up to 8 members (VSF)
- Stacking distance: up to 10 km with long-range transceivers
- MAC table capacity: 32,768
- IPv4 / IPv6 unicast routes: 2,048 / 1,024
- Management ports: 1x USB-C console, 1x RJ-45 console, 1x OOBM, 1x USB Type-A host
- Power supply: fixed AC, 100-120V / 200-240V, 50/60 Hz, 80 PLUS Silver
- Power consumption (230 VAC): 42W idle, 60W at 100% traffic, excluding PoE load
- Maximum heat dissipation: 205 BTU/hr
- Airflow: front and side to back, fixed fans
- Dimensions (H x W x D): 4.37 x 44.25 x 32.66 cm
- Weight: 5.13 kg
- Operating temperature: 0 to 45 C up to 5,000 ft
- Operating relative humidity: 5% to 95% at 40 C, non-condensing
- Mounting: 1U, EIA 19 in. rack or horizontal surface

FAQs

Q: Does this switch need a licence?
A: AOS-CX ships with the switch and includes the base feature set, with no mandatory licence for local operation. Management through Aruba Central needs a separate subscription, such as the Central Switch 6200/29xx Foundation subscription.

Q: How much PoE power does it provide?
A: The total PoE budget is 740W across the 48 ports, supporting IEEE 802.3af/at with Class 4 PoE at up to 30W per port.

Q: Which transceivers work in the SFP uplink ports?
A: The four SFP ports are 100M/1G and accept 1G transceivers such as J4858D (SX), J4859D (LX), J4860D (LH) and J8177D (RJ45 T). 10G SFP+ optics and DACs can be used for VSF stacking links.

Q: Can this switch be stacked?
A: Yes. It supports VSF stacking of up to 8 members in chain or ring topology, with stacking distances of up to 10 km using long-range transceivers.

Q: Does it have a redundant or modular power supply?
A: No. It uses a fixed internal AC power supply and fixed fans, with airflow from the front and side to the back.
