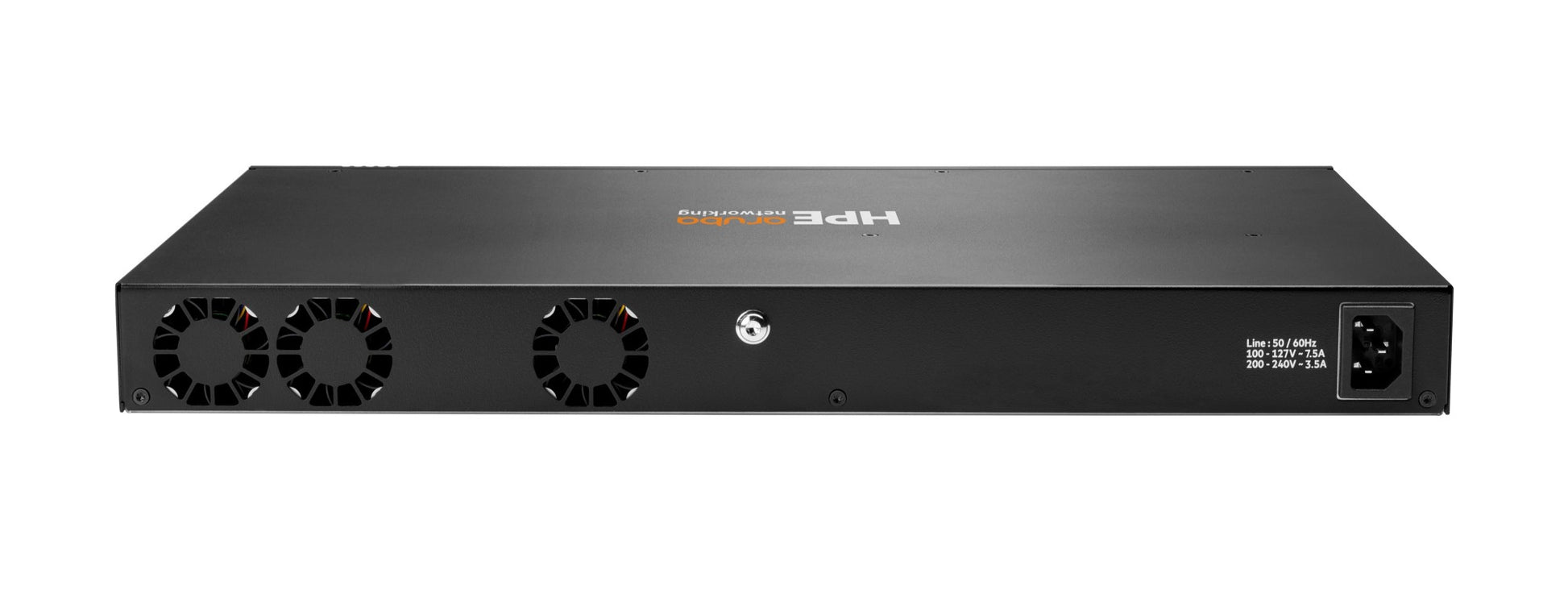

• Aruba S0M84A black rackmount switch with 4 fans and PoE ports
1 1

Aruba

Aruba S0M84A | CX 6200F 48-Port Gigabit Class 4 PoE Switch, 370W, 4x 1G SFP

S0M84A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200F is a fixed-configuration, stackable Layer 3 access switch running AOS-CX, built for enterprise branch offices, campuses and SMB networks. Its Class 4 PoE ports can power IoT devices, cameras and wireless access points directly from the switch.

This 48G Class 4 PoE model provides 48 x 10/100/1000BASE-T ports, each delivering up to 30W (IEEE 802.3af/at), within a 370W PoE budget. Four 100M/1G SFP ports handle uplinks. Switching capacity is up to 104 Gbps with throughput of up to 77.4 Mpps, backed by 8 GB DDR4 memory, 16 GB eMMC flash and an 8 MB packet buffer. VSF stacking supports up to 8 members, giving up to 384 downlink ports, and routing includes static and OSPFv2/v3 with IPv6 support.

AOS-CX is included with the switch. The SFP ports accept 100M/1G SFP transceivers, and the 1U chassis mounts in a 19-inch rack with a fixed power supply and fixed fans. Management options include the CX Mobile App, Aruba Central and NetEdit.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs AOS-CX, a database-driven operating system with a built-in time series database for scripting and historical troubleshooting
- Network Analytics Engine (NAE) for monitoring and troubleshooting
- VSF stacking of up to 8 members, giving up to 384 downlink ports
- Static and OSPF (OSPFv2/v3) routing with IPv6 support, ACLs and QoS
- Dynamic Segmentation for role-based policy across wired and wireless
- Jumbo frames up to 9198 bytes
- CX Mobile App for deployment, configuration and stacking
- Management through Aruba Central, with Switch Multi-Edit support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x 10/100/1000BASE-T Class 4 PoE, up to 30W per port
- Uplinks: 4x 100M/1G SFP
- PoE standards: IEEE 802.3af, 802.3at
- PoE budget: up to 370W
- Switching capacity: up to 104 Gbps
- Throughput: up to 77.4 Mpps
- Average latency (64-byte, 1 Gbps): 3.2 µs
- CPU: Quad Core ARM Cortex A72 @ 1.8GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Packet buffer: 8 MB (6 MB + 2 MB)
- Stack size: up to 8 members (VSF)
- MAC table capacity: 32,768
- IPv4 / IPv6 unicast routes: 2,048 / 1,024
- Management ports: 1x USB-C console, 1x RJ-45 console, 1x OOBM, 1x USB Type-A host
- Power supply: fixed, 100-127V / 200-240V, 50/60Hz, 5.2A / 2.6A
- Power consumption (230 VAC): 38W idle, 57W at 100% traffic
- Fans: fixed, airflow front and side to back
- Dimensions (H x W x D): 4.37 x 44.25 x 30.43 cm
- Weight: 4.87 kg
- Operating temperature: 0 to 45 C up to 5,000 ft
- Mounting: 1U, 19-inch rack

FAQs

Q: Does this switch need a licence to run AOS-CX?
A: No. AOS-CX is included with the switch. Aruba Central cloud management is optional and needs a separate subscription, and Switch Multi-Edit Software also requires a separate licence.

Q: How much PoE power does it provide?
A: It provides up to 370W of Class 4 PoE across its 48 ports, with up to 30W available per port under IEEE 802.3af/at.

Q: What can be fitted in the SFP uplink ports?
A: The four SFP ports support 100M/1G SFP transceivers. VSF stacking between members is supported over copper and fibre.

Q: How many switches can be stacked?
A: VSF stacking supports up to 8 members, giving up to 384 downlink ports. Long range transceivers allow stacking distances of up to 10 km.

Q: How does it differ from other CX 6200F 48-port models?
A: This SKU is the 48G Class 4 PoE model with a 370W PoE budget and 4x 1G SFP uplinks.
