• Aruba S0M82A HPE 1820 24-port PoE+ switch with SFP uplinks
1 1

Aruba

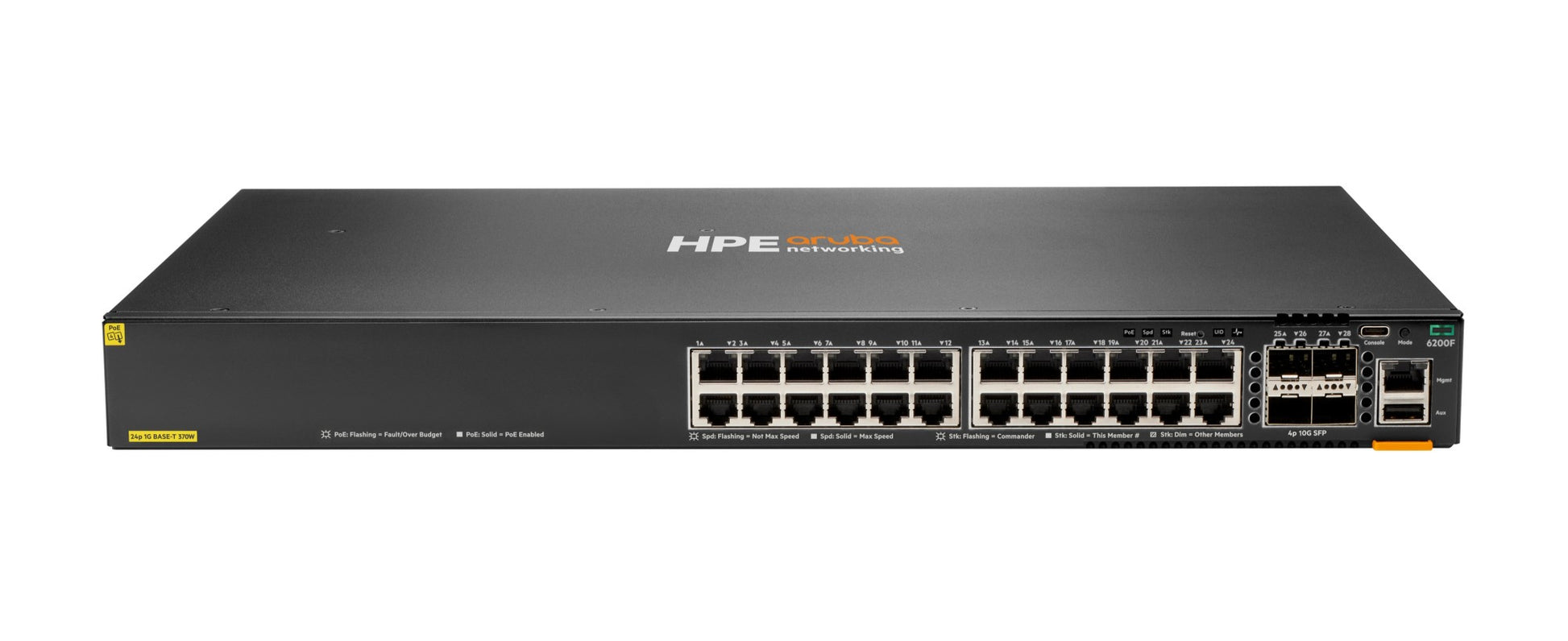

Aruba S0M82A | CX 6200F 24-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

S0M82A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200F is a fixed 1U Layer 3 stackable access switch running AOS-CX. This model is built for enterprise branch offices, campuses and SMB networks that need to power IoT devices, IP cameras, VoIP phones and Wi-Fi access points over PoE+ from one compact unit.

It provides 24 x 10/100/1000BASE-T Class 4 PoE ports delivering up to 30W per port, plus 4 x 100M/1G SFP uplink ports. The total PoE budget is 370W across IEEE 802.3af and 802.3at, with 128 Gbps of switching capacity and throughput of up to 95.2 Mpps. This is the 24-port Class 4 PoE version, distinct from the non-PoE 24-port S0M81A and the 48-port 370W and 740W models.

The four SFP slots accept 100M/1G transceivers such as 1000BASE-SX multimode and LX single-mode. Up to 8 switches can be joined with Virtual Stacking Framework, and management is available through the AOS-CX CLI, web UI, REST API, the Aruba CX Mobile App or Aruba Central.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Gen7 ASIC architecture with a fully distributed design for low latency and non-blocking performance
- AOS-CX operating system with the Network Analytics Engine for built-in monitoring and troubleshooting
- Virtual Stacking Framework stacking of up to 8 switches, deployable via the Aruba CX Mobile App
- Layer 3 managed with IPv4 and IPv6 support, static and access OSPF routing
- Enterprise-class ACLs and QoS
- RADIUS and TACACS+ authentication, with MAC and web-based authentication
- Class 4 PoE delivering up to 30W per port from a fixed internal power supply

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000BASE-T Class 4 PoE ports (up to 30W per port)
- Uplinks: 4 x 100M/1G SFP
- PoE standards: IEEE 802.3af, 802.3at
- PoE budget: 370W
- Switching capacity: 128 Gbps
- Throughput: up to 95.2 Mpps
- Latency: 2.28 us at 1 Gbps, 1.46 us at 10 Gbps
- Packet buffer: 8 MB
- Jumbo frame size: 9220 bytes
- Stacking: VSF, up to 8 members, 40 Gbps stacking bandwidth
- CPU: Quad-core ARM Cortex-A72 at 1.8 GHz
- Memory and flash: 8 GB DDR4 SDRAM, 16 GB eMMC
- Console and management: 1 x USB-C console, 1 x RJ-45 console, 1 x OOBM, 1 x USB Type-A host
- AC voltage: 100-127 V / 200-240 V, 50/60 Hz
- Power consumption: 65W typical at 230 VAC
- Dimensions (W x D x H): 44.25 x 30.43 x 4.37 cm (1U)
- Operating temperature: 0 to 45 C
- Operating humidity: 5-95% non-condensing
- Storage temperature: -40 to 70 C
- Operating system: AOS-CX

FAQs

Q: Does this switch need a software licence?
A: No separate software licence is required for base operation of AOS-CX. Aruba Central cloud management is optional and subscription-based.

Q: How much PoE power does it provide?
A: It has a 370W total PoE budget across 24 Class 4 ports, with up to 30W available per port under IEEE 802.3af and 802.3at.

Q: What optics can I use in the SFP uplink ports?
A: The four uplink slots accept 100M/1G SFP transceivers, for example 1000BASE-SX multimode up to 500 m or 1000BASE-LX single-mode.

Q: Can I stack multiple switches together?
A: Yes. Virtual Stacking Framework supports up to 8 members with 40 Gbps of stacking bandwidth over the front-panel uplink ports.

Q: How does S0M82A differ from the other 6200F models?
A: S0M82A is the 24-port Class 4 PoE model with a 370W budget. S0M81A is the non-PoE 24-port version, S0M84A is a 48-port 370W model and S0M85A is a 48-port 740W model.
