• HPE ProLiant DL380 Gen10 server rack with Aruba S0M81A switch
1 1

Aruba

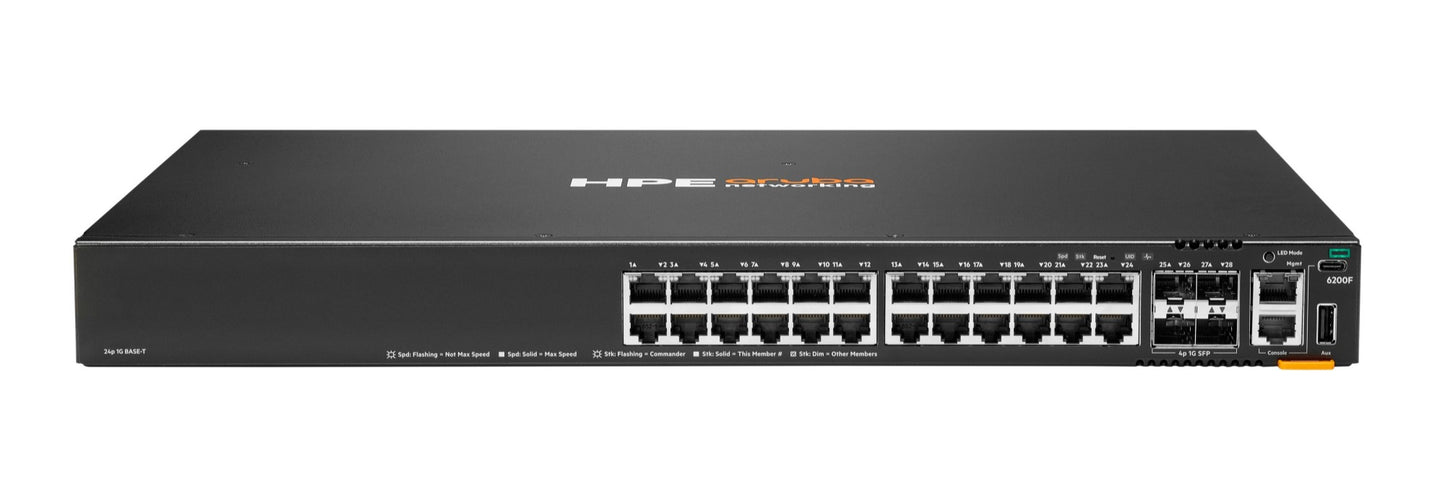

Aruba S0M81A | CX 6200F 24-Port Gigabit Switch, 4x 1G SFP, Non-PoE

S0M81A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200F is a fixed-configuration, stackable Layer 3 access switch running AOS-CX. This non-PoE model suits enterprise edge, campus access, SMB and branch-office networks that need a stackable Layer 3 access switch without PoE.

It provides 24 x 10/100/1000BASE-T RJ-45 ports plus 4 x 100M/1G SFP uplink ports, with 68 Gbps of switching capacity and up to 45.1 Mpps of throughput. Because it is non-PoE, it supplies no PoE budget, and it runs from a fixed internal AC power supply rated 100-120 V / 200-240 V at 120 W maximum. VSF stacking supports up to 8 members with 40 Gbps of stacking bandwidth. The switch is a 1U unit powered by a quad-core ARM Cortex A72 CPU with 8 GB DDR4 and 16 GB eMMC. This is the non-TAA variant.

It stacks with other 24 and 48-port CX 6200F and 6200M switches, but not with 12-port 6200F models. The SFP uplinks accept supported HPE Aruba Networking SFP transceivers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 access switching with the AOS-CX operating system
- VSF stacking of up to 8 members
- Managed via Web GUI, CLI or Aruba CX Mobile App with a Bluetooth dongle
- Optional Aruba Central cloud or on-premises management
- Built-in analytics and automation for operational efficiency
- Aruba ASIC-based architecture with low latency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000BASE-T RJ-45 (non-PoE)
- Uplinks: 4 x 100M/1G SFP
- Additional ports: 1x USB-C console, 1x OOBM, 1x USB Type-A host
- Switching capacity: 68 Gbps
- Throughput: up to 45.1 Mpps
- Stacking: VSF, up to 8 members
- Stacking bandwidth: 40 Gbps
- Max stacking distance: up to 10 km with long-range transceivers
- Switched virtual interfaces: 256
- CPU: Quad-core ARM Cortex A72 @ 1.8 GHz
- Memory: 8 GB DDR4
- Flash: 16 GB eMMC
- Power supply: Internal fixed, fixed fans
- AC voltage: 100-120 V / 200-240 V
- Frequency: 50/60 Hz
- Maximum power: 120 W
- Dimensions (H x W x D): 4.37 x 44.25 x 28.45 cm
- Weight: 3.77 kg
- Operating temperature: 0 to 45 C
- Operating humidity: 5% to 95% non-condensing
- Mounting: Rack-mountable, 1U

FAQs

Q: Does this switch provide PoE?
A: No. The S0M81A is a non-PoE model with 24 Gigabit RJ45 ports, so it provides no PoE budget.

Q: Does it need a separate software licence?
A: It runs AOS-CX. Aruba Central cloud management is optional and requires a separate subscription.

Q: What can it be stacked with?
A: It stacks using VSF with other 24 and 48-port CX 6200F and 6200M switches, up to 8 members. It cannot stack with 12-port 6200F models.

Q: What speeds do the SFP uplink ports support?
A: The 4 SFP ports support 100M and 1G operation. They are not 10G ports.

Q: What power does it use?
A: It has a fixed internal AC power supply for 100-120 V or 200-240 V at 50/60 Hz, with a maximum draw of 120 W.
