• Aruba S0E91A 48-port multi-gig PoE++ switch with 100G uplinks
1 1

Aruba

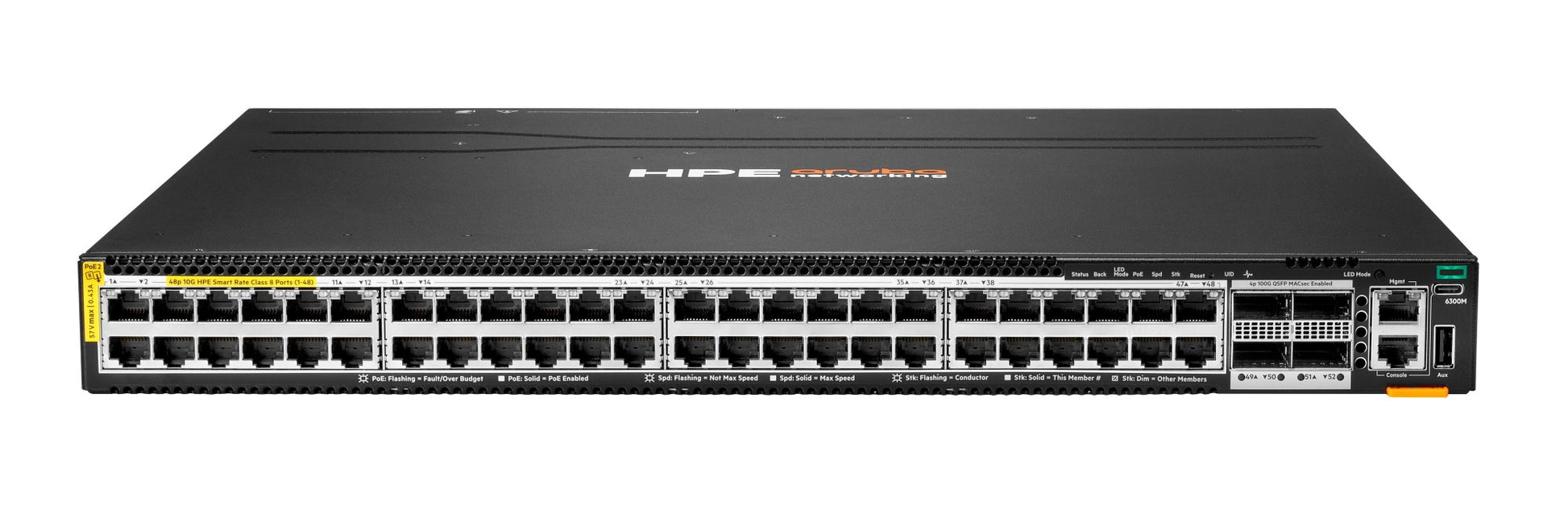

Aruba S0E91A | CX 6300M 48-Port 10G Class 8 PoE Switch, 4x 100G

S0E91A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6300M is a stackable Layer 3 switch built for access, aggregation and data-centre top-of-rack roles. This model pairs 48 Smart Rate multi-gigabit ports with Class 8 PoE, making it well suited to dense Wi-Fi access point and IoT deployments, and runs AOS-CX.

Every one of the 48 ports supports 100M/1G/2.5G/5G/10G BaseT Smart Rate operation and delivers up to 90W of PoE per port under 802.3af/at/bt, with a maximum PoE budget of 2640W. Four QSFP/QSFP28 uplinks run at 10G, 25G, 40G or 100G with MACsec encryption. Switching capacity is 1760 Gbps with 1310 Mpps throughput, and PTP and AVB are supported. VSF stacking joins up to 10 switches in a stack.

The chassis has two hot-swappable power supply slots and three hot-swappable JL714A fan trays. Compatible power supplies are JL086A, JL087A, JL670A (AC) and JL758A (DC). Native AOS-CX features are included, with an optional term-based Advanced Feature Pack for extended visibility and security.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Gen7 ASIC with wire-speed switching and routing and low latency
- Layer 3 routing including BGP, EVPN, VXLAN, VRF and OSPF
- MACsec 256 encryption, PTP, AVB and LRM support
- Virtual Switching Framework (VSF) stacking of up to 10 switches
- Network Analytics Engine with a time-series database for monitoring and troubleshooting
- Dynamic Segmentation with user, device and application-aware policies
- Managed via Aruba Central, AirWave, Switch Multi-Edit Software, CLI and SNMP
- Hot-swappable power supplies and fan trays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 100M/1G/2.5G/5G/10G BaseT Smart Rate, Class 8 PoE
- Uplink ports: 4 x 10G/25G/40G/100G QSFP/QSFP28 (MACsec)
- PoE standards: IEEE 802.3af/at/bt, up to 90W per port
- Max PoE power: 2640 W
- Switching capacity: 1760 Gbps
- Throughput: 1310 Mpps
- Stacking: VSF, up to 10 switches per stack, 400 Gbps stacking bandwidth
- Management ports: 1x USB-C console, 1x RJ45 console, 1x OOBM, 1x USB Type-A host
- CPU: Quad Core Arm Cortex-A72 at 1.8GHz
- Memory and flash: 8 GB DDR4, 32 GB eMMC
- Packet buffer: 32 MB shared
- MAC table capacity: 32,768
- IPv4/IPv6 unicast routes: 61,000 each
- IPv4/IPv6 host table (ARP/ND): 49,152 each
- Power supply slots: 2 hot-swappable, minimum 1 PSU required
- Supported PSUs: JL086A, JL087A, JL670A, JL758A
- Fans: 3 hot-swappable JL714A fan trays
- Power consumption (230VAC, JL670A): idle 211 W, 283 W at 100% traffic
- Dimensions (H x W x D): 4.4 x 44.2 x 47.2 cm
- Weight: 7.75 kg
- Operating temperature: 0 to 45 C
- Operating relative humidity: 5% to 95% at 40 C non-condensing
- Airflow: front and side-to-back

FAQs

Q: Does this switch need a licence?
A: It runs AOS-CX with native features included. An optional term-based CX Advanced Feature Pack adds visibility and advanced security features. Aruba Central management needs a Central Foundation or Advanced subscription.

Q: Which power supplies does it use?
A: It needs at least one power supply from JL086A, JL087A, JL670A (AC) or JL758A (DC). Two slots are available, and the maximum PoE budget is 2640W.

Q: Can I stack it with other CX 6300 switches?
A: Yes. VSF stacking supports up to 10 switches per stack. Stacking with other CX 6300F or 6300M models needs a QSFP-to-SFP56 DAC cable. CX 6300L switches only stack with other CX 6300L switches.

Q: What speeds do the QSFP28 uplinks support?
A: The four uplinks support 10G, 25G, 40G and 100G with MACsec. 50G transceivers and DACs are not supported on this model.

Q: How much PoE can each port deliver?
A: Each of the 48 ports supports Class 8 PoE under 802.3bt, up to 90W per port, within the shared 2640W PoE budget.
