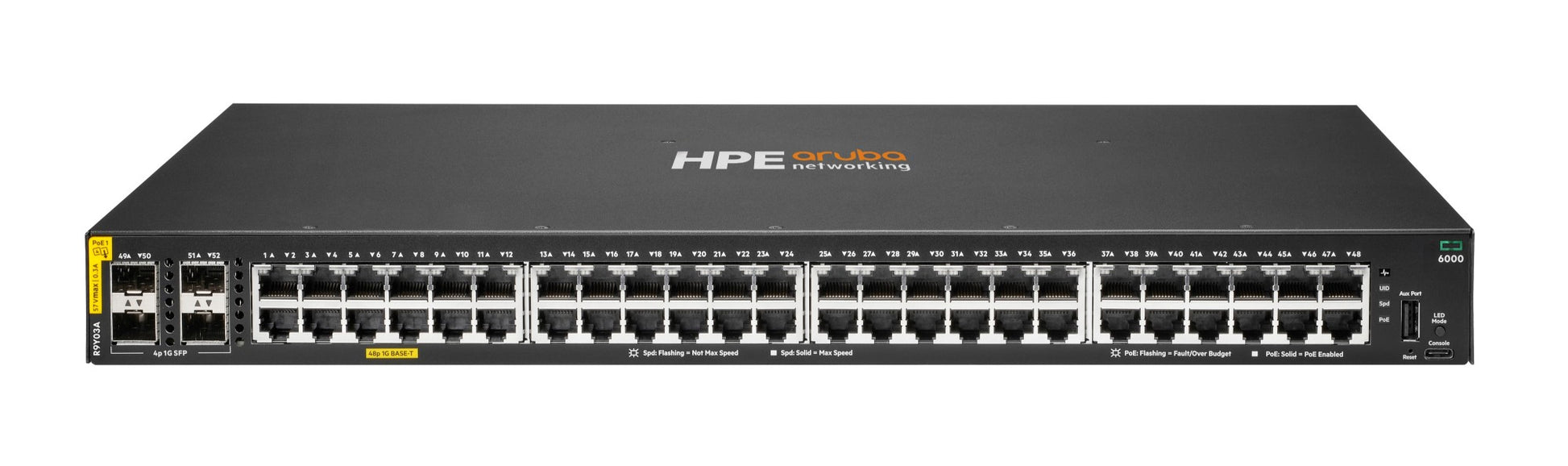

• Aruba R9Y03A HPE 1920-48G PoE+ switch with ports and SFP uplinks
1 1

Aruba

Aruba R9Y03A | CX 6000 48-Port Gigabit PoE+ Switch, 740W, 4x 1G SFP

R9Y03A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6000 is an entry-level fixed 1U Layer 2 access switch running AOS-CX. It suits branch offices, midsize businesses and small enterprises that need wired access with power for access points, security cameras and IoT devices.

This model provides 48 10/100/1000BASE-T Class 4 PoE ports supporting IEEE 802.3af and 802.3at, up to 30W per port, within a 740W PoE budget. Four 1G SFP ports handle uplinks. Switching capacity is 176 Gbps with 98.6 Mpps throughput, and the MAC table holds 8,192 entries. A USB-C console port and a USB Type-A host port are fitted.

It works with the 1G SFP optics J4858D (SX, 500m on OM2 multimode), J4859D (LX, 10km on single-mode) and J8177E (RJ45, 100m on Cat5e). The J9583B 1U 4-post rack mount kit and the R9J32A and R9J33A USB console cables are available for installation and management.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2 switching with ACLs, QoS and static routing
- AOS-CX database-driven, cloud-native operating system
- Management via Web GUI, CLI, NetEdit or HPE Aruba Networking Central
- Zero Touch Provisioning for simple deployment
- REST APIs for software-defined readiness
- Colourless ports using local user roles and local MAC authentication
- Energy Efficient Ethernet (IEEE 802.3az) and power monitoring
- Pre-standard PoE detection, auto-MDIX and jumbo frame support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48x 10/100/1000BASE-T Class 4 PoE
- Uplinks: 4x 1G SFP
- PoE standards: IEEE 802.3af, 802.3at, up to 30W per port
- PoE budget: 740W
- Console: 1x USB-C console port
- USB: 1x USB Type-A host port
- Switching capacity: 176 Gbps
- Throughput: 98.6 Mpps
- Average latency (64-byte, 1Gbps): 1.9 µs
- CPU: Dual Core ARM Cortex A9 at 1016 MHz
- Memory and flash: 4 GB DDR3, 16GB eMMC, 128 MB Flash ROM
- MAC table: 8,192 entries
- IPv4 / IPv6 unicast routes: 512 / 512
- Power supply: Fixed 950W AC, 100-127 / 200-240 VAC, 50/60 Hz
- Power consumption (230 VAC): idle 37.5W, max 49.7W without PoE, max 890W with PoE
- Fans: Fixed, side-to-side airflow
- Dimensions (H x W x D): 4.39 x 44.25 x 32.42 cm
- Weight: 4.7 kg
- Operating temperature: 0 to 45 C
- Operating humidity: 5% to 95% at 40 C, non-condensing
- Mounting: 1U, 19-inch rack or horizontal surface
- Emissions: FCC Part 15 Class A, EN 55032 Class A, AS/NZS CISPR 32 Class A
- Safety: IEC/EN 62368-1, UL 62368-1

FAQs

Q: Does this switch need a software licence or subscription?
A: No. AOS-CX is embedded and no subscription is required to enable the switch software. HPE Aruba Networking Central and NetEdit subscriptions are optional extras for cloud or on-premises management.

Q: How much PoE power does it provide?
A: It provides a 740W PoE budget across 48 Class 4 PoE ports, with IEEE 802.3af/at support and up to 30W per port. It is powered by a fixed internal 950W AC supply.

Q: Which SFP optics does it support for the 1G uplinks?
A: The listed 1G SFP options are J4858D (LC SX, 500m on OM2 multimode), J4859D (LC LX, 10km on single-mode) and J8177E (RJ45, 100m on Cat5e).

Q: How is it mounted?
A: It is a 1U unit for a 19-inch rack or equipment cabinet using the J9583B 1U 4-post rack mount kit, or it can sit on a horizontal surface.

Q: How can it be managed?
A: It can be managed through the Web GUI, CLI, NetEdit, or cloud-based or on-premises HPE Aruba Networking Central. Zero Touch Provisioning is supported for deployment.
