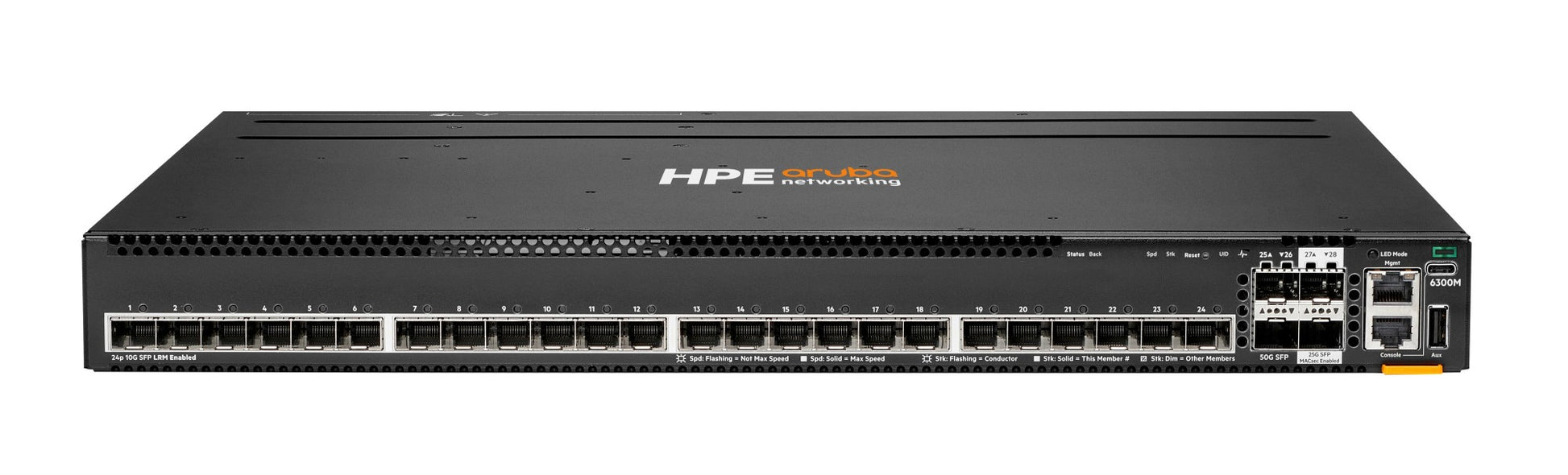

Aruba R8S92A | CX 6300M 24-Port 10G SFP+ Switch, MACsec, 2x 50G SFP56

R8S92A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6300M is a 1U stackable Layer 3 fixed-port managed switch for enterprise campus aggregation and access, data-centre top-of-rack and out-of-band management deployments. This model suits high-density 10G fibre connectivity where MACsec link encryption and stacking are required, and it runs the AOS-CX operating system.

It provides 24 SFP+ ports (1G/10G) with LRM optics support and MACsec, plus two 10G/25G/50G SFP56 uplink ports and two 10G/25G SFP28 uplink ports with MACsec. Switching capacity is 880 Gbps with 660 Mpps of system throughput, and Aruba VSF stacking supports up to 10 members with up to 200 Gbps of stacking bandwidth. This is a non-PoE switch with a 16 MB packet buffer, 8 GB DDR4 memory and 32 GB eMMC storage. This SKU carries the AOS-CX base feature set. Aruba Central cloud management is optional and licensed separately.

The switch uses the JL085A power supply (100-240 V AC input), drawing 87 W idle and 131 W at 100% traffic. It accepts SFP+ (including LRM), SFP28 and SFP56 optics and DACs. 50G operation is supported with 50G DACs only, for interconnect and VSF stacking.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Stackable Layer 3 switching with BGP, EVPN, VXLAN, VRF and OSPF
- MACsec-256 encryption on SFP+ and SFP28 ports
- LRM optics support on SFP+ ports
- Virtual Switching Framework (VSF) stacking of up to 10 switches
- Built-in 1/10/25/50GbE uplinks, with 50G for DAC interconnect and VSF stacking
- PTP and AVB support
- Aruba Dynamic Segmentation
- AOS-CX programmable operating system with built-in analytics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24x 1G/10G SFP+ (LRM and MACsec)
- Uplink ports: 2x 10G/25G/50G SFP56
- Uplink ports (MACsec): 2x 10G/25G SFP28
- Console and management: 1x USB-C console, 1x RJ-45 console, 1x OOBM, 1x USB Type-A host
- Processor: Quad-core ARM Cortex A72 at 1.8 GHz
- Memory and storage: 8 GB DDR4, 32 GB eMMC
- Packet buffer: 16 MB
- Switching capacity: 880 Gbps
- Throughput: 660 Mpps
- Latency (1 Gbps): 4.24 us
- Latency (10 Gbps): 1.50 us
- MAC address table size: 32768 entries
- IPv4 ACL entries (ingress): 20480
- IPv6 ACL entries (ingress): 5120
- MAC ACL entries (ingress): 20480
- IPv4 ACL entries (egress): 8192
- IPv6 ACL entries (egress): 2048
- MAC ACL entries (egress): 8192
- Power consumption (idle): 87 W
- Power consumption (100% traffic): 131 W
- Input voltage (JL085A PSU): 100-240 V AC
- Form factor: 1U rack-mountable, front and side to back airflow
- Stacking: Aruba VSF, up to 10 members, up to 200 Gbps stacking bandwidth

FAQs

Q: Does this switch need a licence or subscription?
A: This SKU runs AOS-CX with the base feature set and no mandatory subscription. Aruba Central cloud management is optional and licensed separately.

Q: Does this switch support PoE?
A: No, it is a non-PoE switch. It uses the JL085A power supply with 100-240 V AC input, drawing 87 W idle and 131 W at 100% traffic.

Q: Which optics and cables does it work with?
A: It supports SFP+ (1G/10G, including LRM), SFP28 (25G) and SFP56 (50G) optics and DACs. The 50G speed works with 50G DACs only, for interconnect and VSF stacking.

Q: Can I stack it with other switches?
A: Yes. Aruba VSF stacking supports up to 10 members, with up to 200 Gbps of stacking bandwidth. A QSFP to SFP56 DAC is required for VSF stacking with the CX 6300F/M, and VSF stacking is not supported on 1G ports.

Q: Which ports support MACsec?
A: MACsec is supported on the 24 SFP+ ports and on the two SFP28 uplink ports. The two SFP56 ports do not carry MACsec.
