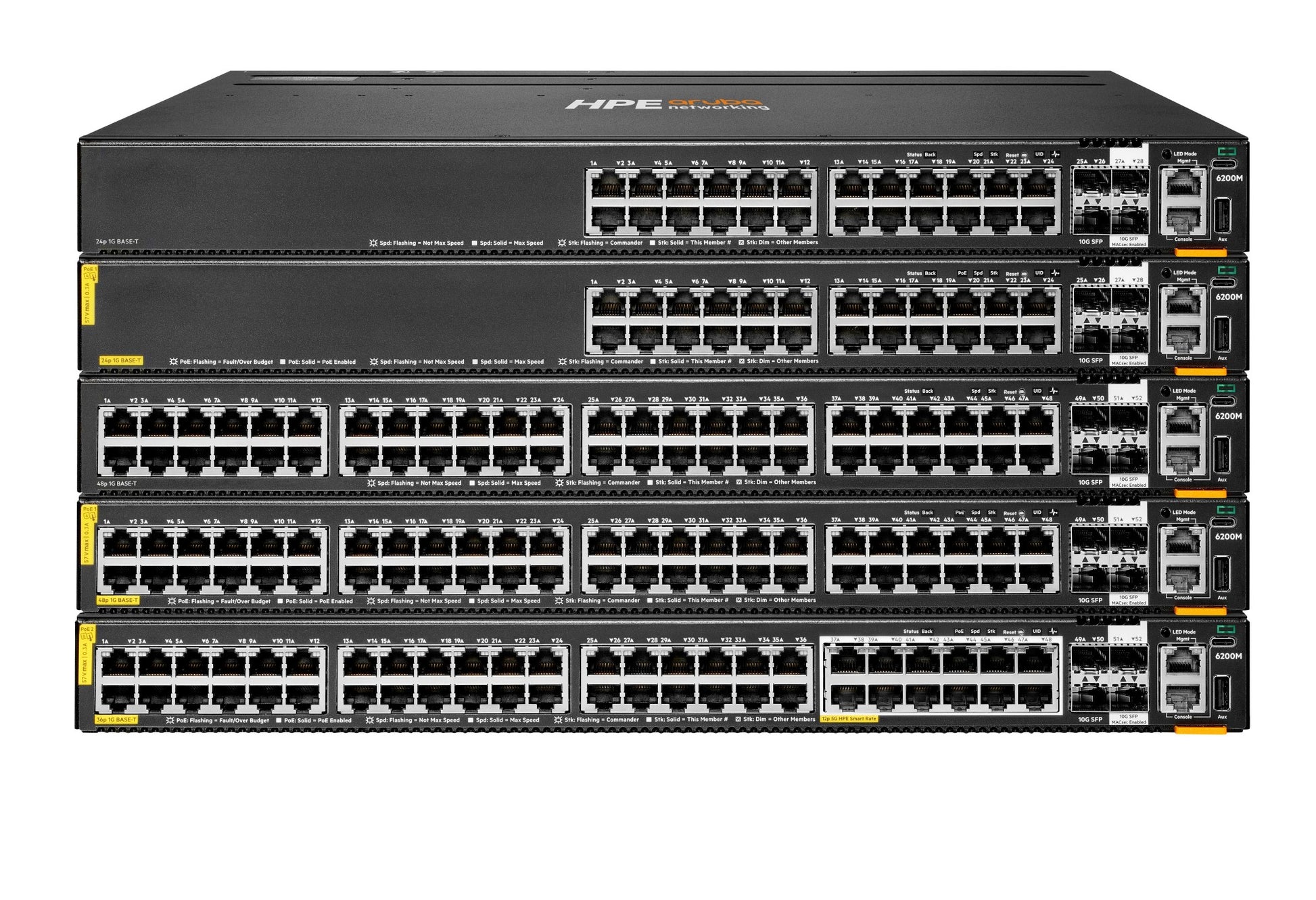

• Aruba R8Q70A black 48-port multilayer PoE switch with yellow accents
1 1

Aruba

Aruba R8Q70A | CX 6200M 48-Port PoE+ Switch, 1440W, 4x 10G SFP+

R8Q70A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200M is a stackable, Layer 3 managed access switch built for branch offices, campuses and SMB networks that need dependable PoE at the edge. It runs the AOS-CX operating system and suits deployments powering IoT devices, security cameras and wireless access points.

This R8Q70A model provides 48 x 10/100/1000BASE-T RJ-45 Class 4 PoE+ ports and 4 x 1/10GbE SFP+ uplink or stacking ports. The PoE budget is 1440 W when fitted with two power supplies, and switching capacity is 176 Gbps with 130.9 Mpps throughput. It is a build-to-order configuration with no PSU included, and up to two hot-swap power supplies are supported. Standard AOS-CX operation needs no licence.

Virtual Stacking Framework (VSF) allows up to 8 switches to be stacked at 40 Gbps stacking bandwidth. The SFP+ uplinks accept 1G/10G transceivers and DAC cables, and two of the SFP+ ports support MACsec-256. Management options include AOS-CX, NetEdit, the Aruba CX Mobile App and Aruba Central.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- AOS-CX operating system with the Aruba Network Analytics Engine for monitoring and troubleshooting
- Virtual Stacking Framework (VSF) for stacking up to 8 switches
- Aruba Gen7 ASIC architecture for fast, non-blocking performance
- Layer 3 routing including OSPF, RIP-2 and ECMP
- Security features including RADIUS, TACACS+, ACLs and FIPS 140-2 support
- Hot-swappable, field-replaceable fan tray
- Class 4 PoE+ on all 48 access ports for IoT devices, cameras and wireless access points
- Supports Aruba NetEdit and the Aruba CX Mobile App for configuration validation and deployment

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Device type: Layer 3 managed, stackable switch
- Ports: 48 x 10/100/1000BASE-T RJ-45 PoE+ (Class 4)
- Uplinks: 4 x 1/10GbE SFP+ (uplink / stacking)
- PoE budget: 1440 W
- Switching capacity: 176 Gbps
- Throughput: 130.9 Mpps
- Latency (1 Gbps): 2.28 µs
- Latency (10 Gbps): 1.46 µs
- Packet buffer: 8 MB
- Stacking bandwidth: 40 Gbps
- Maximum stack size: 8 units (VSF)
- MAC address table: 16000 entries
- Jumbo frames: up to 9220 bytes
- Processor: 1 x ARM 1.8 GHz
- Memory: 8 GB DDR4 SDRAM
- Flash: 16 GB
- IPv4 / IPv6 unicast routes: 2000 / 2000
- Management ports: console RJ-45, management RJ-45, console USB Type-C, USB Type-A host
- Power input: AC 100-120/200-240 V, 50/60 Hz
- Power consumption: 74 W operational, 59 W standby (excluding PoE load)
- Dimensions (H x W x D): 4.4 x 44.2 x 38.5 cm
- Weight: 6.15 kg
- Operating temperature: 0 to 45 C
- Storage temperature: -40 to 70 C
- Operating humidity: 15-95% non-condensing

FAQs

Q: Does this switch need a software licence?
A: No licence is required for standard AOS-CX operation. Optional Aruba Central cloud management is subscription-based and sold separately.

Q: How is this switch powered, and what PoE budget does it provide?
A: It supports up to two hot-swap power supplies and accepts AC 100-120/200-240 V, 50/60 Hz input. The PoE budget is 1440 W when two power supplies are fitted.

Q: What can be fitted in the SFP+ uplink ports?
A: The 4 uplink ports accept 1G and 10G SFP+ transceivers as well as DAC cables. Two of the SFP+ ports support MACsec-256.

Q: Can multiple switches be stacked?
A: Yes. Virtual Stacking Framework (VSF) supports up to 8 units in a stack, using the SFP+ ports with 40 Gbps of stacking bandwidth.

Q: How does this model differ from other CX 6200M SKUs?
A: R8Q70A is the 48-port Class 4 PoE+ version with a 1440 W PoE budget and 4 x SFP+ uplinks. It is a build-to-order configuration with no PSU included.
