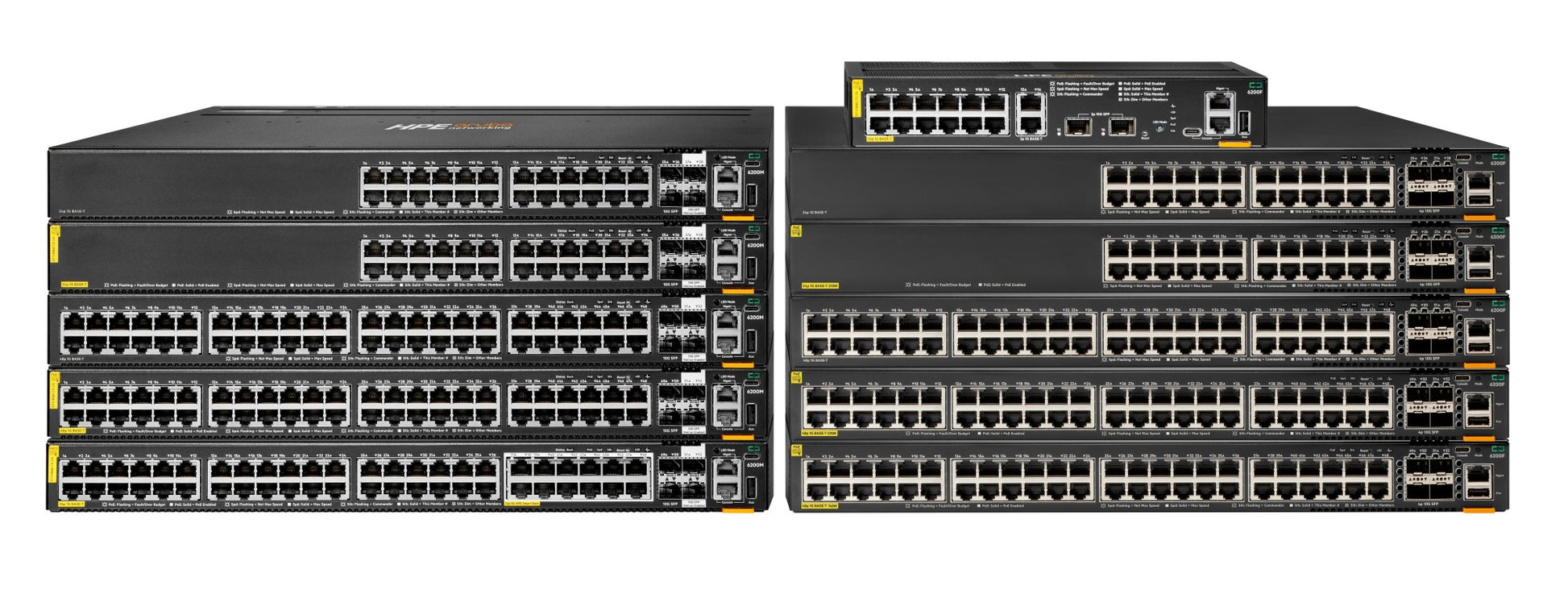

• Aruba R8Q68A switch with 24x 1G PoE ports and 4x 10G SFP+ uplinks
1 1

Aruba

Aruba R8Q68A | CX 6200M 24-Port Class 4 PoE Switch, 740W, 4x 10G SFP+

R8Q68A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200M is a modular, stackable Layer 3 access switch running AOS-CX, built for enterprise campus and branch access closets and SMB networks that need PoE for IP phones, cameras, wireless access points and IoT devices. This model pairs 24 gigabit ports with four 10G uplinks on the Aruba Gen7 ASIC.

The R8Q68A provides 24 10/100/1000BASE-T Class 4 PoE ports delivering up to 30W per port (802.3af and 802.3at) from a 740W maximum PoE budget, plus 4 SFP/SFP+ uplink ports supporting 1G or 10G. Switching capacity is 128 Gbps with up to 95.2 Mpps throughput. VSF stacking joins up to 8 members, giving up to 384 ports under a single management plane.

Power is modular. The chassis has two hot-swappable PSU slots and takes the JL086A or JL087A power supply, with at least one required. The fan tray is also hot-swappable. The AOS-CX standard feature set is included with no software licence needed to operate the switch. It stacks with other 24 and 48-port 6200F and 6200M switches.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Aruba Gen7 ASIC architecture for non-blocking performance
- AOS-CX operating system with REST APIs and automation
- VSF front-plane stacking of up to 8 members, up to 384 ports
- MACsec 256 encryption on downlink ports and 2 uplink ports
- Layer 3 features including ACLs, QoS, static routing and OSPF (Access)
- Hot-swappable power supplies and fan trays
- Aruba CX Mobile App for installation and administration via Bluetooth dongle
- Aruba Dynamic Segmentation support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Downlink ports: 24x 10/100/1000BASE-T Class 4 PoE, up to 30W per port
- Uplink ports: 4x 1G/10G SFP/SFP+ (2x LRM, 2x LRM/MACsec 256)
- PoE standards: IEEE 802.3af, 802.3at
- PoE budget: 740W maximum
- Switching capacity: 128 Gbps
- Throughput: up to 95.2 Mpps
- Latency: 2.28 µs at 1 Gbps, 1.46 µs at 10 Gbps
- Stacking: VSF, up to 8 members
- CPU: Quad-core ARM Cortex A72 at 1.8 GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Packet buffer: 8 MB
- Management ports: 1x RJ-45 console, 1x USB-C console, 1x OOBM, 1x USB Type-A host
- Power supply slots: 2 hot-swappable, minimum 1 required, supports JL086A and JL087A
- Input voltage: 100-120V / 200-240V
- Power consumption: 76W at 230 VAC
- Fan trays: 2 slots, hot-swappable, 2 fans per tray
- Airflow: Side-to-side
- Dimensions (H x W x D): 4.39 x 44.2 x 38.38 cm
- Weight: 6.01 kg
- Acoustics: sound power LWAd 3.9 Bel, sound pressure LpAm 24.3 dB

FAQs

Q: Does this switch need a software licence?
A: No. The AOS-CX standard feature set is included and no software licence is required to operate it. An Aruba Central Foundation subscription is only needed if you want cloud management.

Q: Which power supply does the R8Q68A use?
A: It takes the JL086A or JL087A power supply in either of its two hot-swappable PSU slots. At least one PSU is required.

Q: How much PoE can it deliver?
A: It provides a 740W maximum PoE budget across 24 Class 4 ports, with up to 30W per port under 802.3af and 802.3at.

Q: Can it be stacked with other switches?
A: Yes. VSF stacking supports up to 8 members, and it stacks with other 24 and 48-port 6200F and 6200M switches.

Q: What can I connect to the SFP+ uplinks?
A: The 4 uplink ports accept 1G and 10G SFP/SFP+ transceivers, including LRM, and the J9152D is natively supported on the 6200M.
