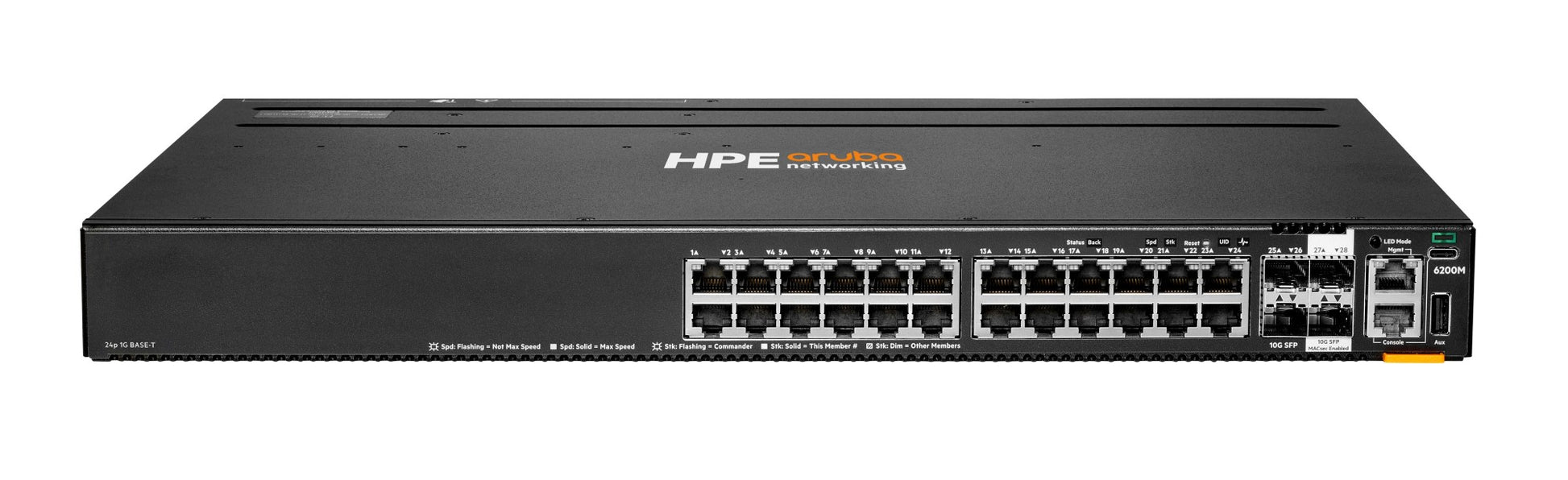

• Aruba R8Q67A HPE ProCurve 2910-48G switch black housing silver ports
1 1

Aruba

Aruba R8Q67A | CX 6200M 24-Port Gigabit Switch, 4x 10G SFP+, Modular

R8Q67A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200M is a modular 1U Layer 3 access switch for campus, edge and branch networks that need gigabit edge connectivity with 10G uplinks. It suits IoT, wireless access point and cloud-managed access deployments, and runs the AOS-CX operating system.

This model provides 24 x 10/100/1000BASE-T RJ45 ports (non-PoE) and 4 x 1G/10G SFP+ uplink ports, with two of the uplinks supporting MACsec 256. Switching capacity is 128 Gbps with throughput of up to 95.2 Mpps. Routing support includes OSPFv2, OSPFv3, RIP-2 and ECMP, and the switch stacks with Virtual Switching Framework (VSF) at 40 Gbps stacking bandwidth, up to 8 members with other 24 and 48-port CX 6200F and 6200M switches.

Power and cooling are modular. It has two hot-swappable power supply slots that take the JL085A, with at least one supply required, and two fan tray slots that take the JL669B. Maximum draw is about 75 W at 230 VAC, and there is no PoE budget on this non-PoE model.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- AOS-CX operating system on the Gen7 ASIC
- Layer 3 routing with OSPFv2, OSPFv3, RIP-2 and ECMP
- Virtual Switching Framework (VSF) stacking of up to 8 members
- Hot-swappable, redundant power supplies and fan trays
- Dynamic Segmentation for policy enforcement
- Aruba Network Analytics Engine (NAE) for real-time monitoring and automation
- MACsec 256 on two SFP+ uplink ports
- Managed through Aruba Central, NetEdit, web UI, CLI or REST API

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24 x 10/100/1000BASE-T RJ45 (non-PoE)
- Uplink ports: 4 x 1G/10G SFP+
- Switching capacity: 128 Gbps
- Throughput: up to 95.2 Mpps
- Latency (1 Gbps): 2.28 us
- Latency (10 Gbps): 1.46 us
- Packet buffer: 8 MB
- CPU: Quad core ARM Cortex-A72, 1.8 GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Stacking bandwidth: 40 Gbps
- Max stack size: 8 members (with 24/48-port 6200F and 6200M switches)
- Jumbo frame support: 9220 bytes
- IPv4 unicast routes: 2000
- IPv6 unicast routes: 2000
- IPv4 / IPv6 host table capacity: 8000 / 8000
- Switched virtual interfaces (SVIs): 128
- Management ports: 1 x RJ-45 console, 1 x USB-C console, 1 x OOBM, 1 x USB Type-A host
- Power supply slots: 2 hot-swappable, 1 minimum required, JL085A supported
- Fan trays: 2 slots, JL669B, 2 fans per tray, hot-swappable
- Input voltage: 100-120 / 200-240 VAC, 50/60 Hz
- Power consumption: 75 W (at 230 VAC)
- Dimensions (H x W x D): 43.9 x 442.5 x 383.8 mm
- Weight: approx. 6.01 kg
- Form factor: 1U rack-mount, front and side to back airflow
- PoE: None

FAQs

Q: Does this switch need a separate licence?
A: AOS-CX is the operating system and basic switching and Layer 3 features run without a separate licence. Aruba Central cloud management needs its own subscription if you choose to use it.

Q: What power supply does it use?
A: It has two hot-swappable power supply slots and needs at least one JL085A AC power supply. The second slot can be fitted for redundancy. Maximum draw is about 75 W at 230 VAC.

Q: Does it support PoE?
A: No. This is a non-PoE model, so it has no PoE budget. Devices that need PoE require a separate injector or a PoE switch.

Q: Which switches can it stack with?
A: It uses VSF stacking at 40 Gbps with other 24 and 48-port CX 6200F and 6200M switches, up to 8 members in a stack.

Q: What can I connect to the SFP+ uplinks?
A: The four uplink ports take 1G/10G SFP and SFP+ transceivers and DACs. Two of the ports also support MACsec 256.
