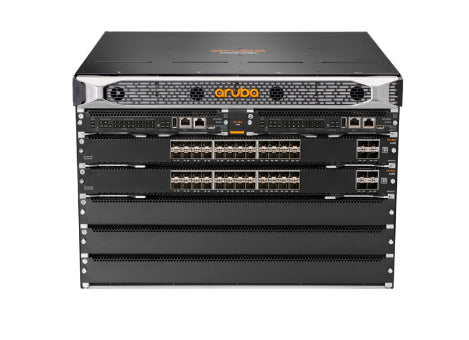

• Aruba R0X30A 6405 modular chassis black rackmount switch with Ethernet ports
1 1

Aruba

Aruba R0X30A | CX 6405 5-Slot Switch, 48x 10G SFP+, 8x 50G SFP, 3 Open Slots

R0X30A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6405 is a 5-slot modular chassis switch from the Aruba CX 6400 Switch Series, built for campus access, aggregation and core, as well as data centre spine-leaf and EVPN-VXLAN fabrics. This bundle runs AOS-CX and is aimed at high-density 10G, 25G and 50G aggregation.

This SKU is populated with a 6400 management module (R0X31A), two fan trays (R0X32A) and two R0X43A line cards. Together the line cards provide 48 x 1/10G SFP+ ports and 8 x 1/10/25/50G SFP uplink ports, leaving 3 open module slots for further expansion. The 6400 series delivers up to 28 Tbps of switching and 11.4 Bpps, with a non-blocking 2.8 Tb fabric per slot. Power supplies are not part of this SKU and are ordered separately. The R0X43A line cards are non-PoE, so PoE capacity only applies if PoE line cards are added to the open slots.

The open slots accept 6400 line cards R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A and R0X45A. The chassis supports R0X35A and R0X36A power supplies and VSX pairing for redundancy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 modular switching with BGP, EVPN, VXLAN, VRF and OSPF, plus security and QoS
- AOS-CX operating system with database-driven automation and analytics
- VSX redundancy, with redundant power supplies and fans for high availability
- Aruba Dynamic Segmentation using VXLAN and BGP EVPN tunnels
- Smart Rate multi-gigabit Ethernet and high-power 802.3bt PoE with suitable line cards
- Fully distributed architecture on the Aruba Gen7 ASIC
- Bluetooth dongle support for the CX Mobile App

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 6405 5-slot modular chassis (R0X24A)
- Management module: Aruba 6400 Management Module (R0X31A)
- Fan trays: 2 x R0X32A
- Line cards included: 2 x R0X43A
- Included ports: 48 x 1/10G SFP+ and 8 x 1/10/25/50G SFP
- Open module slots: 3
- Power supplies: ordered separately
- Switching capacity: up to 28 Tbps and 11.4 Bpps (6400 series)
- Fabric: non-blocking 2.8 Tb per slot
- Management module CPU: Quad Core ARM Cortex A72 at 1.8GHz
- Management module memory: 16GB DDR4 ECC, 32GB eMMC flash
- Line card CPU: Dual Core ARM Cortex A72 at 1.8GHz
- Line card memory: 4GB DDR4
- PoE standards supported by platform: IEEE 802.3af, 802.3at, 802.3bt (up to 60W)
- Console and management: 1 x RJ-45 console, 1 x USB-C console, 1 x OOBM, 1 x USB Type-A host
- Power supply input (R0X35A/R0X36A): 110-127 / 200-240 VAC, 50/60 Hz, 80 PLUS Platinum
- Dimensions (H x W x D): 30.66 x 44.26 x 44.85 cm
- Weight: 34.0 kg

FAQs

Q: Does this switch need a separate software licence?
A: It runs AOS-CX, which is included with the product.

Q: Do I need to order power supplies separately?
A: Yes. Power supplies are not part of this SKU. The platform uses R0X35A or R0X36A power supplies.

Q: Does this configuration provide PoE?
A: The installed R0X43A line cards are non-PoE. The platform supports 802.3af, 802.3at and 802.3bt, so PoE is available by adding PoE line cards to the open slots.

Q: Which line cards fit the 3 open slots?
A: The chassis accepts 6400 line cards R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A and R0X45A.

Q: Can two of these chassis be paired for redundancy?
A: Yes. The 6400 series supports VSX pairing.
