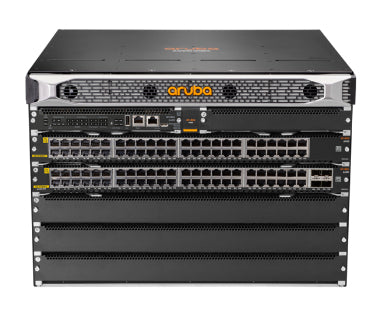

• Aruba R0X29A 6405 modular chassis with Ethernet ports
1 1

Aruba

Aruba R0X29A | CX 6400 6405 Modular Switch, 96-Port PoE+, 4x SFP56

R0X29A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6405 is a 5-slot modular Layer 3 AOS-CX switch bundle from the Aruba CX 6400 series, aimed at enterprise campus access, aggregation and core deployments, including high-density PoE for wireless access points and IoT devices.

This 96G CL4 PoE bundle provides 96 x 10/100/1000BASE-T PoE+ ports at up to 30W per port (Class 4), plus 4 x 1GbE/10GbE/25GbE/50GbE SFP56 ports across the two installed line cards, R0X38B and R0X39B. It is built around the 6405 chassis with a Management Module R0X31A and fan trays R0X32A. The fabric delivers 14 Tbps of switching capacity and 5.7 Bpps of throughput. The chassis supports IEEE 802.3af, 802.3at and 802.3bt PoE, and available PoE budget depends on the number of power supplies, line cards and fan trays fitted.

Power is supplied by up to four front-serviceable modules, either the R0X35A 1800W or the R0X36A 3000W. The remaining slots accept further 6400 line cards such as R0X40B, R0X41A and R0X42A. The SFP56 ports take 1G, 10G or 25G SFP transceivers or 50G DACs, which are also used for VSX interconnect.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular Layer 3 switching with BGP, EVPN, VXLAN, VRF and OSPF, plus security and QoS
- VSX redundancy with redundant power supplies and fan trays for high availability
- Gen7 ASIC distributed architecture with low latency
- AOS-CX database-driven OS with Network Analytics Engine (NAE) for automated monitoring and troubleshooting
- 80 PLUS Platinum certified power supplies
- VLAN 802.1Q with 4094 VLAN IDs, jumbo frames to 9198 bytes and RPVST+
- Hot-serviceable modular design with front-serviceable power supplies

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 5-slot 6405 (R0X24A)
- Management module: R0X31A
- Fan trays: R0X32A
- Installed line cards: R0X38B and R0X39B
- Access ports: 96 x 10/100/1000BASE-T PoE+, up to 30W per port (Class 4)
- SFP56 ports: 4 x 1GbE/10GbE/25GbE/50GbE (50GbE with 50G DACs)
- PoE standards: IEEE 802.3af, 802.3at, 802.3bt (up to 60W)
- Switching capacity: 14 Tbps
- Throughput: 5.7 Bpps
- Supported power supplies: R0X35A 1800W or R0X36A 3000W, up to 4
- R0X35A output: 1800W at 200-240VAC, 1100W at 110-127VAC
- R0X36A output: 3000W at 200-240VAC, 1500W at 110-127VAC
- Management ports: 1x RJ-45 console, 1x USB-C console, 1x OOBM, 1x USB Type-A host
- Packet buffer: 8MB per line card
- MAC table capacity: 32,768
- IPv4 and IPv6 multicast routes: 8,192 each
- VRF: 256
- Dimensions (W x D x H): 44.26 x 44.85 x 30.66 cm
- Weight: 34.1 kg as configured
- Operating temperature: 0 to 45 C up to 5,000 ft
- Operating humidity: 15% to 95% at 45 C, non-condensing

FAQs

Q: Does this bundle include power supplies?
A: No. Power supplies are ordered separately. The chassis supports up to four modules, either the R0X35A 1800W or the R0X36A 3000W.

Q: What PoE standards does it support?
A: The chassis supports IEEE 802.3af, 802.3at and 802.3bt up to 60W. The installed line cards provide PoE+ at up to 30W per port. Available PoE budget depends on the number of power supplies, line cards and fan trays.

Q: Which operating system does it run?
A: It runs AOS-CX. Aruba Central cloud management is a separate subscription.

Q: Can I add more line cards?
A: Yes. The open slots accept 6400 line cards such as R0X40B, R0X41A and R0X42A, subject to power and PoE budget.

Q: What can I connect to the SFP56 ports?
A: They accept 1G, 10G or 25G SFP transceivers and 50G DACs. These ports can also be used for VSX interconnect.
