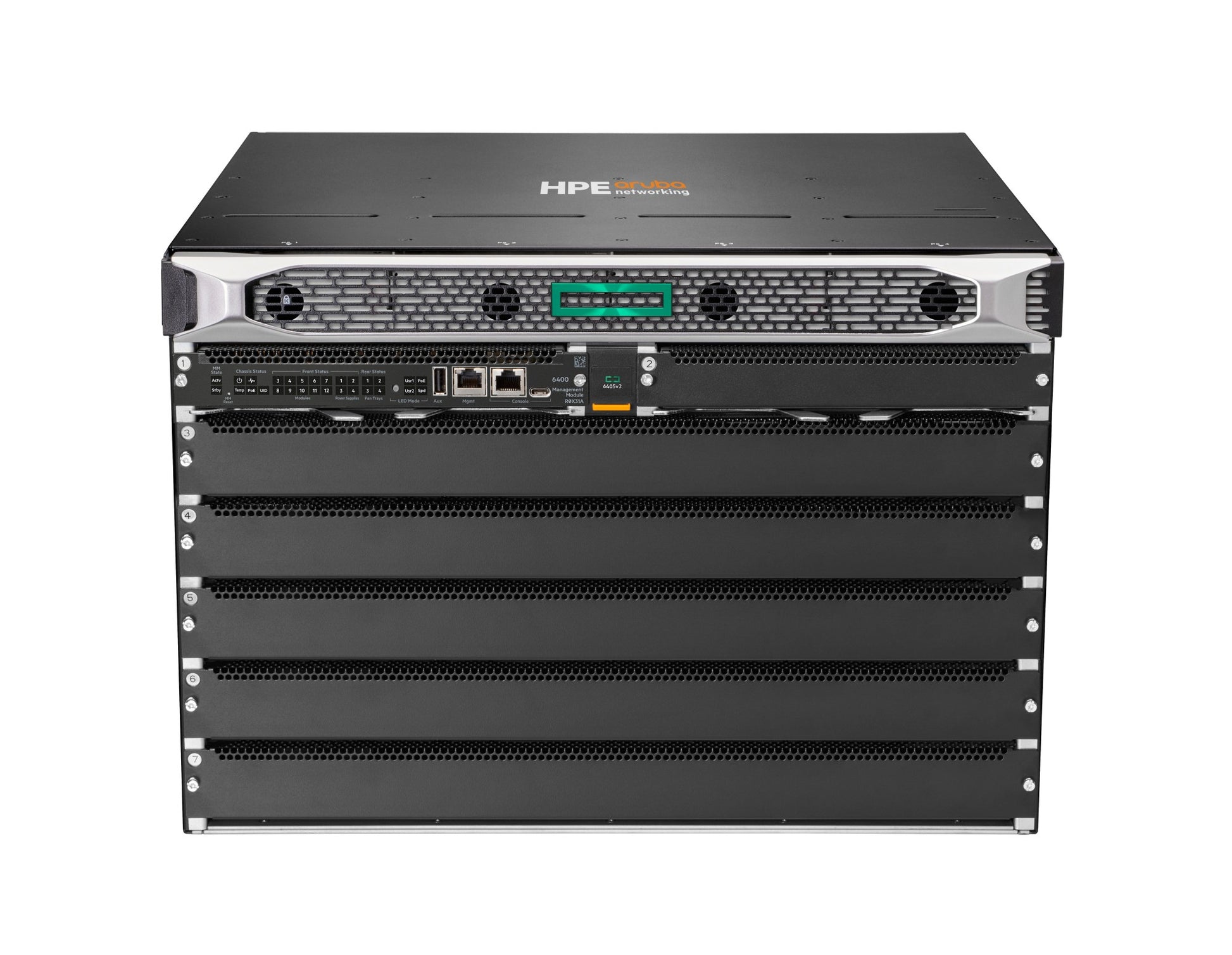

• Aruba R0X26C CX 6405 v2 5-slot modular chassis with ports
1 1

Aruba

Aruba R0X26C | CX 6400 5-Slot Modular Chassis Switch, 14Tbps, 7U

R0X26C

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6405 v2 is a 5-slot modular Layer 3 chassis switch from the CX 6400 series, built for enterprise campus access, aggregation and core, as well as data centre deployments that need high-density PoE and 25/40/100G connectivity. It runs the AOS-CX operating system and is supplied as a bundle with a management module and two fan trays.

The 7U chassis provides 5 open line-card slots with 14 Tbps of system switching capacity and 5.7 Bpps of throughput. Line cards deliver 1/10/25/40/100GbE interfaces, and PoE line cards support 802.3af/at/bt including HPE Smart Rate 1/2.5/5GbE at up to 60W per port. The management module has a quad-core ARM Cortex A72 at 1.8GHz, 16GB DDR4 and 32GB flash, and the chassis takes up to 4 modular power supplies.

The 6405 v2 accepts 6400 series line cards in its open slots, including the R0X38C to R0X45C range as well as earlier v1 and B-series cards. VSX high availability is supported for non-disruptive upgrades and resilient core designs.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Gen7 ASIC architecture with non-blocking 2.8Tb fabric per slot
- Virtual Switching Extension (VSX) for high availability and non-disruptive upgrades
- AOS-CX cloud-native operating system with Network Analytics Engine and Time Series Database
- Layer 3 routing with BGP, EVPN, VXLAN, VRF and OSPF
- MACsec encryption support
- Dynamic Segmentation with user, device and application-aware policies on wired and wireless networks
- NetEdit and Aruba CX Mobile App support
- Redundant front-serviceable power supplies and field-replaceable fan trays

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product number: R0X26C
- Chassis: 7U, 5 open line-card module slots
- Bundle contents: 6405 v2 chassis (R0X24C), Management Module (R0X31A), 2x Fan Trays (R0X32A)
- System switching capacity: 14 Tbps
- System throughput: 5.7 Bpps
- Interfaces: 1/10/25/40/100GbE via line cards
- PoE: 802.3af/at/bt via PoE line cards, up to 60W per port
- Average latency: 5.32 us (1G), 1.48 us (10G), 2.78 us (25G), 1.31 us (40G), 1.42 us (100G)
- Management module CPU: Quad-core ARM Cortex A72 @ 1.8GHz
- Memory: 16GB DDR4 SDRAM
- Flash: 32GB
- IPv4 unicast routes: 61,000
- IPv6 unicast routes: 61,000
- Switched virtual interfaces: 2000
- IPv4 host table capacity: 32000
- IPv6 host table capacity: 32000
- IPv4 multicast routes: 8000
- IGMP groups: 8000
- Management ports: USB Type-C console, RJ-45 console, USB Type-A host, RJ-45 OOBM
- Power supplies supported: up to 4 (R0X35A, R0X36A)
- Input voltage: 120 V AC / 230 V AC
- Dimensions (H x W x D): 30.66 x 44.26 x 44.85 cm
- Weight: 29.3 kg

FAQs

Q: Does the 6405 v2 need a separate licence to operate?
A: No. It runs AOS-CX and needs no separate licence to operate. Optional Aruba Central subscriptions and CX Advanced licences are available separately.

Q: What power supplies does it use?
A: The chassis takes up to 4 modular front-serviceable power supplies, R0X35A and R0X36A, which accept 120/230 V AC. Available PoE depends on the line cards, fan trays and power supplies installed.

Q: Which line cards work in the 5 open slots?
A: It takes 6400 series line cards such as R0X38C, R0X39C, R0X40C, R0X41C, R0X42C, R0X43C, R0X44C and R0X45C, plus earlier v1 and B-series cards such as R0X38B, R0X39B, R0X40B, R0X41A and R0X42A.

Q: What does the R0X26C bundle consist of?
A: It is a 6405 v2 chassis (R0X24C) with one Management Module (R0X31A) and two Fan Trays (R0X32A), leaving 5 open module slots.

Q: Does it support high availability?
A: Yes. It supports Virtual Switching Extension (VSX) for high availability and non-disruptive upgrades, using 50G DACs for the VSX link.
